The Relationship Between Roller Chain Pitch Selection and Speed

The Relationship Between Roller Chain Pitch Selection and Speed

In industrial transmission systems, roller chain pitch and speed are key variables determining transmission efficiency, equipment lifespan, and operational stability. Many engineers and procurement personnel, overly focused on load-bearing capacity during selection, often overlook the matching of these two factors. This ultimately leads to premature chain wear and breakage, and even entire production line downtime. This article will break down the underlying principles and the inherent relationship between pitch and speed, providing practical selection methods to help you choose the optimal roller chain for different operating conditions.

I. Understanding Two Core Concepts: The Definition and Industrial Significance of Pitch and Speed

Before analyzing the relationship between these two, it’s important to clarify the basic definitions—this is essential to avoid selection errors. Whether using ANSI (American Standard), ISO (International Standard), or GB (National Standard) roller chains, the core impact of pitch and speed remains consistent.

1. Roller Chain Pitch: Determines “Load Capacity” and “Running Smoothness”

Pitch is the core dimension of a roller chain, referring to the distance between the centers of two adjacent rollers (denoted by the symbol “p” and typically measured in mm or inches). It directly determines two key chain characteristics:

Load Capacity: A larger pitch generally results in larger chain components like the plates and pins, and a higher rated load (both static and dynamic) that can be carried, making it suitable for heavy-duty applications (such as mining machinery and heavy conveying equipment).

Running Smoothness: A smaller pitch reduces the “impact frequency” when the chain meshes with the sprocket, resulting in less vibration and noise during transmission. This makes it more suitable for applications requiring high stability (such as precision machine tools and food packaging equipment).

2. Rotational Speed: Determines “Dynamic Stress” and “Wear Rate”

The rotational speed here refers specifically to the speed of the driving sprocket to which the chain is connected (denoted by the symbol “n” and typically measured in r/min), not the speed of the driven end. Its impact on the chain is primarily manifested in two aspects:
Dynamic stress: The higher the speed, the greater the centrifugal force generated by the chain during operation. This also significantly increases the “impact load” when the chain links mesh with the sprocket teeth (similar to the impact of a car going over a speed bump at high speed).
Wear rate: The higher the speed, the more times the chain meshes with the sprocket and the relative rotation of the rollers and pins increases. The total amount of wear in the same period of time increases proportionally, directly shortening the chain’s service life.

II. Core Logic: The “Inverse Matching” Principle of Pitch and Speed

Extensive industrial practice has verified that roller chain pitch and speed have a clear “inverse matching” relationship—that is, the higher the speed, the smaller the pitch should be, while the lower the speed, the larger the pitch can be. The essence of this principle is to balance “load requirements” with “dynamic stress risk.” This can be broken down into three dimensions:

1. High-speed operation (typically n > 1500 r/min): A small pitch is essential.
When the drive sprocket speed exceeds 1500 r/min (such as in fans and small motor drives), the dynamic stress and centrifugal force on the chain increase dramatically. Using a large-pitch chain in this situation can lead to two critical problems:

Impact load overload: Large-pitch chains have larger links, resulting in greater contact area and impact force with the sprocket teeth during meshing. This can easily cause “link jump” or “sprocket tooth breakage” at high speeds.

Centrifugal force-induced slack: Large-pitch chains have a greater deadweight, and the centrifugal force generated at high speeds can cause the chain to disengage from the sprocket teeth, causing “chain drop” or “drive slip.” In severe cases, this can lead to equipment collisions. Therefore, for high-speed applications, chains with a pitch of 12.7mm (1/2 inch) or less are generally selected, such as ANSI #40 and #50 series, or ISO 08B and 10B series.

2. Medium-speed applications (typically 500 r/min < n ≤ 1500 r/min): Choose a medium pitch.
Medium-speed applications are most common in industrial applications (such as conveyors, machine tool spindles, and agricultural machinery). A balance between load requirements and smoothness requirements is important.
For moderate loads (such as light conveyors with a rated power of 10kW or less), chains with a pitch of 12.7mm to 19.05mm (1/2 inch to 3/4 inch) are recommended, such as ANSI #60 and #80 series. For higher loads (such as medium-sized machine tools with a rated power of 10kW-20kW), a chain with a pitch of 19.05mm-25.4mm (3/4-inch to 1-inch), such as the ANSI #100 and #120 series, can be selected. However, additional verification of the sprocket tooth width is necessary to prevent meshing instability.

3. Low-speed operation (typically n ≤ 500 r/min): A large pitch chain can be selected.

In low-speed conditions (such as mining crushers and heavy-duty hoists), the chain’s dynamic stress and centrifugal force are relatively low. Load-carrying capacity becomes the core requirement, and the advantages of a large-pitch chain can be fully utilized:
Large-pitch chains offer greater component strength and can withstand impact loads of hundreds of kN, preventing chain plate breakage and pin bending under heavy loads.
The wear rate is low at low speeds, allowing large-pitch chains to maintain a lifespan that matches the overall equipment lifespan, eliminating the need for frequent replacement (typically 2-3 years). Chains with a pitch ≥ 25.4mm (1 inch), such as ANSI #140 and #160 series, or customized large-pitch, heavy-duty chains, are commonly used in this scenario.

III. Practical Guide: Accurately Match Pitch and Speed ​​in 4 Steps

After understanding the theory, it’s time to implement it through standardized procedures. The following 4 steps will help you quickly select a suitable chain and avoid errors caused by relying on experience:

Step 1: Identify Core Parameters – Collect 3 Key Data First

Before selecting a chain, you must obtain these three core parameters of the equipment; none of them can be omitted:

Drive sprocket speed (n): Obtain this directly from the motor or drive end manual. If only the driven end speed is available, reverse-calculate using the formula “Transmission ratio = number of teeth on the driving sprocket / number of teeth on the driven sprocket.”

Rated transfer power (P): This is the power (in kW) required to be transferred by the equipment during normal operation. This includes peak loads (such as shock loads during startup, which are typically calculated as 1.2-1.5 times the rated power).
Working environment: Check for dust, oil, high temperatures (>80°C), or corrosive gases. For harsh environments, choose chains with lubrication grooves and anti-corrosion coatings. The pitch should be increased by 10%-20% to allow for wear.

Step 2: Preliminary Pitch Range Selection Based on Speed
Refer to the table below to determine the preliminary pitch range based on the drive sprocket speed (using ANSI standard chain as an example; other standards can be converted accordingly):
Drive Sprocket Speed ​​(r/min) Recommended Pitch Range (mm) Corresponding ANSI Chain Series Typical Applications
>1500 6.35-12.7 #25, #35, #40 Fans, Small Motors
500-1500 12.7-25.4 #50, #60, #80, #100 Conveyors, Machine Tools
<500 25.4-50.8 #120, #140, #160 Crusher, Elevator

Step 3: Verify Pitch Meets Load Capacity Using Power
After preliminary pitch selection, verify that the chain can withstand the rated power using the “Power Calculation Formula” to avoid overload failure. Taking the ISO standard roller chain as an example, the simplified formula is as follows:
Chain’s permissible power transmission (P₀) = K₁ × K₂ × Pₙ
Where: K₁ is the speed correction factor (higher speeds result in lower K₁, which can be found in the chain catalog); K₂ is the operating condition correction factor (0.7-0.9 for harsh environments, 1.0-1.2 for clean environments); and Pₙ ​​is the chain’s rated power (which can be found by pitch in the manufacturer’s catalog).
Verification condition: P₀ must meet ≥ 1.2 × P (1.2 is the safety factor, which can be increased to 1.5 for heavy-duty scenarios).

Step 4: Adjust the final plan based on the installation space.
If the initially selected pitch is limited by installation space (e.g., the equipment’s internal space is too narrow to accommodate a large-pitch chain), two adjustments can be made:

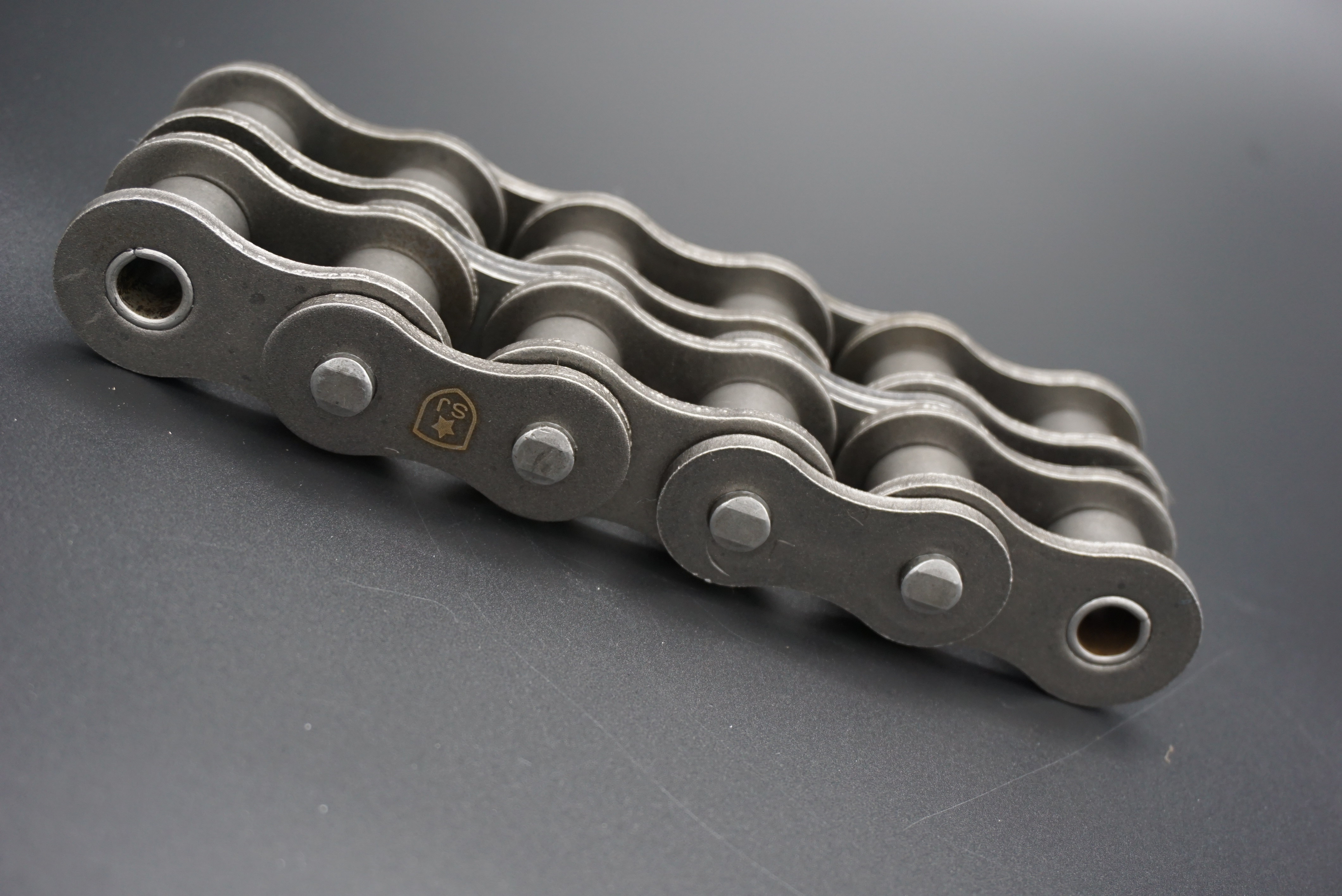

Reduce the pitch + increase the number of chain rows: For example, if you originally selected one row of 25.4mm pitch (#100), you can change to two rows of 19.05mm pitch (#80-2), which offers similar load capacity but a smaller size.
Optimize the number of sprocket teeth: While maintaining the same pitch, increasing the number of teeth on the driving sprocket (usually to at least 17 teeth) can reduce chain engagement shock and indirectly improve high-speed adaptability.

IV. Common Mistakes to Avoid: Avoid These 3 Mistakes

Even after mastering the selection process, many people still fail due to overlooking details. Here are three of the most common misconceptions and their solutions:

Misconception 1: Focusing solely on load-bearing capacity while ignoring speed matching

Misconception: Believing that “a larger pitch means greater load-bearing capacity,” a larger pitch chain is selected for high-speed operation (e.g., a #120 chain for a 1500 rpm motor). Consequences: Chain noise levels exceed 90dB, and chain plate cracks develop within two to three months. Solution: Strictly select pitches based on “speed priority.” If load capacity is insufficient, prioritize increasing the number of rows rather than increasing the pitch.

Misconception 2: Confusing “drive pulley speed” with “driven pulley speed”

Misconception: Using driven pulley speed as the selection factor (e.g., if the driven pulley speed is 500 rpm and the actual drive pulley speed is 1500 rpm, a larger pitch is selected based on 500 rpm). Consequences: Excessive dynamic stress in the chain, resulting in “excessive pin wear” (wear exceeding 0.5mm in one month). Solution: The “drive pulley speed” must be used as the standard. If uncertain, calculate using the motor speed and reduction ratio (drive pulley speed = motor speed / reduction ratio).

Misconception 3: Ignoring the Impact of Lubrication on Speed-Pitch Matching

Mistake: assuming “selecting the right pitch is enough,” skipping lubrication or using inferior lubricant under high-speed conditions. Consequence: Even with a small pitch, chain life can be shortened by over 50%, and even dry-friction seizure can occur. Solution: For high-speed conditions (n ​​> 1000 rpm), drip lubrication or oil bath lubrication must be used. The lubricant viscosity must be matched to the speed (the higher the speed, the lower the viscosity).

V. Industrial Case Study: Optimization from Failure to Stability

A conveyor line at an automotive parts factory was experiencing chain breakage once a month. By optimizing the pitch-speed matching, we extended the chain life to two years. The details are as follows:
Original plan: Drive pulley speed 1200 rpm, single-row chain with a 25.4mm pitch (#100), 8kW power transmission, no forced lubrication.
Failure cause: 1200 rpm is at the upper limit of medium speed, and the 25.4mm pitch chain experiences excessive dynamic stress at this speed. Furthermore, the lack of lubrication leads to accelerated wear.
Optimization plan: Reduce the pitch to 19.05mm (#80), switch to a two-row chain (#80-2), and add a drip lubrication system.
Optimization results: Chain operating noise reduced from 85dB to 72dB, monthly wear reduced from 0.3mm to 0.05mm, and chain life extended from 1 month to 24 months, saving over 30,000 yuan in replacement costs annually.

Conclusion: The essence of selection is balance.
Selecting roller chain pitch and speed is never a simple decision of “large or small.” Instead, it’s about finding the optimal balance between load capacity, operating speed, installation space, and cost. By mastering the principle of “reverse matching,” combining it with a standardized four-step selection process and avoiding common pitfalls, you can ensure a stable and long-lasting transmission system.
