The relationship between roller chain lubrication frequency and life: key factors and practical guidelines
Introduction
As a key component in mechanical transmission and conveying systems, roller chains play an important role in many industrial fields and mechanical equipment, such as automobiles, motorcycles, agricultural machinery, food processing equipment, conveying equipment, etc. Its main function is to transfer power from the driving equipment to the driven equipment, or to be used for material transportation, so as to achieve the normal operation of the mechanical system and the continuity of the production process.
However, roller chains are affected by various factors during use, resulting in wear, fatigue and failure, which in turn affects the performance and reliability of mechanical equipment. Among them, lubrication is a crucial factor, which is directly related to the service life and operating efficiency of roller chains. This article will deeply explore the relationship between roller chain lubrication frequency and life, analyze the key factors affecting the lubrication effect, and provide practical guidelines to help international wholesale buyers and related users better understand and apply roller chain lubrication knowledge to optimize the use and maintenance of roller chains, reduce equipment operating costs, and improve production efficiency.
1. Structure and working principle of roller chain
Structural composition

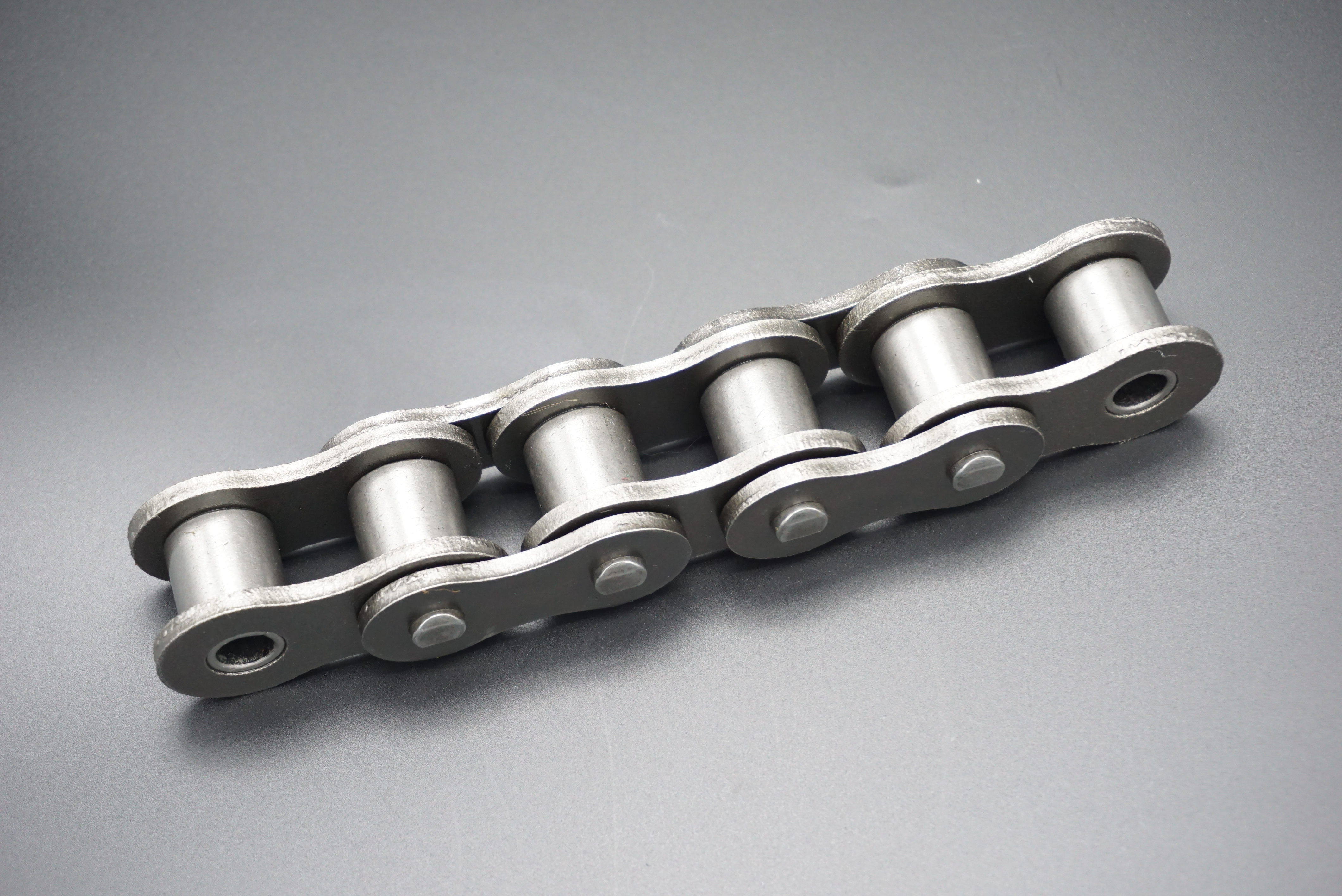

Roller chain is usually composed of basic components such as inner link plate, outer link plate, pin, sleeve and roller. The inner link plate and outer link plate are connected to each other through pin and sleeve to form the basic structural unit of the chain. The roller is mounted on the sleeve and meshes with the teeth of the sprocket to achieve power transmission.
Working principle
When the roller chain meshes with the sprocket, the roller rolls along the tooth profile of the sprocket, thereby transmitting power from the sprocket to the roller chain and driving the mechanical equipment to move. During the movement, relative movement occurs between the various components of the roller chain, resulting in friction and wear. In particular, the contact surface between the pin and the sleeve, and the sleeve and the roller, is more worn due to the high pressure and relative movement speed.
2. The important role of lubrication in roller chain
Reducing wear
Good lubrication can form a layer of lubricating oil film on the surface of each friction pair of the roller chain, separating the metal surfaces and avoiding direct contact between metals, thereby significantly reducing the friction coefficient and wear rate. This helps reduce the wear of components such as pins, sleeves and rollers, and prolongs their service life.
Reduce friction resistance
Lubricants can effectively reduce the friction resistance of roller chains during movement, making the chain run more smoothly, reducing the energy consumption of driving equipment, and improving the efficiency of the entire transmission system.
Prevent corrosion and rust
Lubricants can form a protective film on the surface of roller chains, isolating corrosive media such as water, oxygen, and acidic substances from contact with the metal surface, preventing the chain from corrosion and rust, and maintaining its good performance and appearance.
Alleviate shock loads
Under some working conditions, roller chains may be subject to shock loads, such as starting, stopping or sudden speed changes. Lubricants can play a certain buffering role, alleviate the impact of shock loads on the chain, and reduce fatigue damage to the chain.
Cooling and cooling
Lubricants can take away some of the heat generated by friction during the movement of roller chains, play a certain cooling and cooling role, and prevent the chain from failing prematurely due to excessive temperature.
3. The impact of roller chain lubrication frequency on life
Insufficient lubrication
When the lubrication frequency is too low, the friction surfaces of the roller chain are not fully lubricated, and dry friction or boundary friction is prone to occur. This will cause the friction coefficient to increase sharply, wear to intensify, generate a lot of heat, and increase the temperature of the chain. Long-term insufficient lubrication will increase the matching clearance between the pin and the sleeve, increase the slackness of the chain, and then lead to poor meshing between the sprocket and the chain, generate noise and vibration, and ultimately accelerate the fatigue damage of the chain, significantly shortening its service life. In addition, insufficient lubrication will make the chain more susceptible to corrosion and rust, further reducing its performance and life.
Appropriate lubrication frequency
According to the working conditions of the roller chain and the manufacturer’s recommendations, reasonably determine the lubrication frequency and lubricate at this frequency, so that the roller chain can always maintain a good lubrication state. This can effectively reduce wear, reduce friction resistance and energy consumption, prevent corrosion and rust, and alleviate impact loads, thereby extending the service life of the roller chain. Generally speaking, under appropriate lubrication conditions, the service life of the roller chain can reach its design life or longer.
Over-lubrication
Although insufficient lubrication has a serious negative impact on the life of the roller chain, over-lubrication is not advisable. Over-lubrication not only causes waste of lubricant and increases maintenance costs, but may also cause other problems. For example, excessive lubricant may be thrown out during the movement of the roller chain, polluting the surrounding environment and equipment; or in some high-temperature conditions, the lubricant may deteriorate and decompose due to overheating, producing harmful substances, affecting the normal operation of the chain. In addition, over-lubrication may also cause lubricant to accumulate inside the chain, affecting the flexible movement of the chain, and even causing problems such as blockage.
Four factors affecting the frequency of roller chain lubrication
Working environment and working conditions
Temperature: In a high temperature environment, the viscosity of the lubricant will decrease and it is easy to lose, so more frequent lubrication is required to ensure that the chain always has enough lubricant. In a low temperature environment, the viscosity of the lubricant will increase, which may affect its fluidity and lubrication effect, and the lubrication frequency also needs to be adjusted appropriately.
Humidity and moisture: If the working environment is humid or water is present, moisture may enter the roller chain, dilute or destroy the lubricant, thereby accelerating wear and corrosion. In this case, it is necessary to increase the frequency of lubrication and select lubricants with good waterproof or anti-emulsification properties.
Dust and impurities: In dusty or other impurity environments, dust and other impurities are easily mixed into the lubricant and become abrasive particles, which aggravate the wear of the roller chain. Therefore, the chain needs to be cleaned and lubricated more frequently to remove impurities and keep the lubricant clean.
Load and speed: High load and high speed conditions will increase the friction of the roller chain, accelerate the wear rate, and increase the temperature more significantly. Therefore, the lubrication frequency needs to be increased accordingly to provide sufficient lubrication protection. At the same time, lubricants with higher viscosity and load-bearing capacity should be selected to meet the lubrication requirements under high load and high speed conditions.
Type and quality of lubricants
Lubricant performance: Different types of lubricants have different performance characteristics, such as viscosity, viscosity-temperature performance, anti-wear performance, anti-oxidation performance, etc. High-quality lubricants can maintain good lubrication performance over a wide temperature range, have a long service life and good anti-wear and anti-corrosion capabilities, so that the lubrication frequency can be appropriately extended. For example, synthetic lubricants generally have better performance than mineral oil lubricants, can provide more effective lubrication protection under more severe working conditions, and reduce the number of lubrication times.
Lubricant addition methods: Lubricants can be added to roller chains by manual application, brushing, oil gun injection, automatic lubrication system, etc. Different addition methods will affect the distribution and retention of lubricants, and thus affect the lubrication frequency. For example, the automatic lubrication system can automatically add lubricants to the roller chain according to the set time interval and lubricant amount, ensure the continuous supply of lubricants, make the lubrication more uniform and stable, so as to optimize the lubrication frequency and improve the lubrication effect.
Roller chain design and manufacturing quality
Chain structure and material: The structural design and material selection of the roller chain will affect its friction characteristics and dependence on lubrication. For example, some high-performance roller chains use special surface treatment technologies or materials, such as hard chrome plating, carburizing, etc., to improve their wear resistance and corrosion resistance, thereby reducing the requirements for lubrication frequency to a certain extent. In addition, the manufacturing accuracy and assembly quality of the chain will also affect the lubrication effect. High-quality roller chains can better maintain the distribution and sealing of lubricants and extend the lubrication cycle.
Initial lubrication: During the manufacturing process of roller chains, they are usually lubricated to ensure that the chain is in good lubrication condition at the beginning of use. Different initial lubrication processes and lubricant types will affect the lubrication performance and life of the roller chain during use. Some roller chain manufacturers use advanced initial lubrication technologies, such as vacuum negative pressure lubrication and wax lubrication, which can form a uniform and lasting lubricating film inside and on the surface of the chain, so that the roller chain can maintain good lubrication condition for a long time and reduce the number of subsequent lubrication.
Equipment maintenance and care
Cleanliness: Regularly clean the roller chain and its surrounding environment to remove impurities such as dust, oil, and iron filings, which can prevent impurities from entering the rolling element, reduce wear, and thus extend the lubrication cycle. If the equipment is in a dirty state for a long time, impurities may mix with the lubricant to form an abrasive mixture, accelerate the wear of the chain, and increase the frequency of lubrication.
Chain tension: Proper chain tension is essential for the normal operation and lubrication of the roller chain. If the chain is too loose, it is easy to cause poor meshing between the chain and the sprocket, resulting in tooth skipping, impact and other phenomena, which will aggravate the wear and fatigue of the chain; at the same time, the loose chain will cause uneven distribution of lubricant and affect the lubrication effect. If the chain is too tight, it will increase the contact stress between the chain and the sprocket, accelerate the wear of the components, and also have an adverse effect on the flow and retention of the lubricant. Therefore, it is necessary to regularly check and adjust the tension of the chain to maintain its good operating condition and lubrication performance, and reasonably determine the lubrication frequency.
The coordination and status of other components: The conditions of other components related to the roller chain in the equipment, such as sprockets, shafts, bearings, etc., will also affect the lubrication and life of the roller chain. For example, the wear of the sprocket tooth profile, the bending deformation of the shaft, the damage of the bearing, etc. may cause uneven force on the roller chain, increase local wear, and affect the lubrication effect. Therefore, it is necessary to regularly check and maintain the entire equipment system to ensure the good coordination and normal operation of each component, provide a stable working environment for the roller chain, and thus optimize the lubrication frequency and extend the service life.
5. Methods for determining a reasonable roller chain lubrication frequency
Reference to manufacturer’s recommendations
Roller chain manufacturers usually provide corresponding lubrication frequency recommendations and lubricant recommendations based on the design, materials and intended use of their products. This information can be found in the product’s instruction manual or technical data. Following the manufacturer’s recommendations is the basis for ensuring the normal operation and service life of the roller chain, especially during the warranty period of the equipment.
Considering actual working conditions
In actual applications, the manufacturer’s lubrication frequency recommendations should be appropriately adjusted in combination with the specific working environment and working conditions of the roller chain. For example, if the roller chain operates in a harsh environment, such as high temperature, high humidity, dust or high load, the lubrication frequency may need to be increased accordingly. On the contrary, under milder working conditions, the lubrication interval can be appropriately extended, but the running status of the chain should be closely monitored to ensure the lubrication effect.
Observe the running status of the roller chain
Regularly observing the operation of the roller chain, such as whether there is abnormal noise, vibration, heat, signs of wear, etc., can timely detect insufficient lubrication or other problems. For example, when the roller chain makes a squeaking sound, metal friction sound, or runs unsteadily, it may indicate that the lubricant has failed or is insufficient, and lubrication is needed in time. In addition, the lubrication effect and whether the lubrication frequency needs to be adjusted can be evaluated by checking the wear and slack of the chain.
Conduct lubrication tests and monitoring
Lubrication tests and monitoring can be performed on some important equipment or working conditions to determine the optimal lubrication frequency. For example, the lubricating oil in the roller chain can be regularly sampled and analyzed to detect indicators such as viscosity, impurity content, and wear metal content. The effectiveness and degree of wear of the lubricant can be judged based on the analysis results, so as to adjust the lubrication plan. In addition, some advanced monitoring technologies, such as vibration monitoring, temperature monitoring, and oil monitoring, can be used to understand the operating status and lubrication status of the roller chain in real time, and to achieve accurate lubrication management and fault warning.
VI. Case analysis of the relationship between roller chain lubrication frequency and life in different application scenarios
Application of roller chains in automobile engines
In automobile engines, roller chains are used to drive key components such as camshafts, and their operating conditions are high temperature, high speed and high load. Usually, manufacturers will perform special surface treatment and initial lubrication on roller chains during engine design and manufacturing, and add an appropriate amount of anti-wear additives to the engine oil to ensure that the roller chain is well lubricated and protected throughout its service life. In this case, the lubrication of the roller chain mainly depends on the circulating lubrication system of the engine oil, and its lubrication frequency is relatively low. Generally, it is only necessary to replace the oil and oil filter according to the maintenance mileage or time specified by the automobile manufacturer, and there is no need to frequently lubricate the roller chain. However, if the quality of the engine oil is poor, the oil volume is insufficient, or the oil is not replaced in time, it may cause poor lubrication of the roller chain, increased wear, increased noise and other problems, which will affect the performance and life of the engine, and may even cause engine failure.
Roller chain applications in food processing equipment
Roller chains in food processing equipment usually need to meet strict hygiene standards and food safety requirements, so the choice of lubricants is greatly restricted, and food-grade lubricants are generally required. Due to the particularity of the food processing environment, such as humidity, water washing, and the presence of food residues, the lubrication frequency of roller chains is relatively high. For example, in some meat processing equipment, roller chains need to be cleaned and disinfected several times a day, which may wash away the lubricant, so they need to be re-lubricated in time after cleaning to prevent the chain from wear and rust due to lack of lubrication. At the same time, in order to ensure food safety, the selected food-grade lubricant must have good chemical stability and non-toxicity, and will not contaminate food even in the event of accidental contact with food. In this application scenario, reasonable control of lubrication frequency and selection of appropriate food-grade lubricants are crucial to the life of roller chains and the normal operation of equipment.
Roller chain applications in agricultural machinery
When agricultural machinery such as tractors and harvesters are operating in the field, roller chains often come into contact with impurities such as soil, dust, and straw, and may also be affected by rain and moisture, and the working environment is relatively harsh. In this case, the lubrication frequency of the roller chain needs to be appropriately adjusted according to the actual operating conditions and environmental conditions. Generally speaking, before the operating season, the roller chain should be thoroughly cleaned and lubricated, and the lubricant should be regularly checked and replenished during the operation according to the frequency of use and environmental conditions. For example, in a dusty environment, the roller chain may need to be lubricated and cleaned weekly or even more frequently to prevent impurities from entering the chain and causing increased wear. In addition, in order to adapt to the working conditions of agricultural machinery, roller chains usually adopt sealing structures and special lubricants, such as lithium-based grease, to improve their water resistance and anti-pollution ability, and extend the lubrication cycle and service life.
Application of roller chains in conveying systems
In various conveying systems, such as belt conveyors, chain conveyors, etc., roller chains are used to drive conveyor belts or carry goods. Their working conditions and lubrication requirements vary depending on factors such as the nature of the conveyed material, conveying speed, and environmental conditions. For example, in the conveying system of abrasive materials such as coal and ore, the roller chain will be impacted and worn by the material, and may be exposed to dust, water and other media. Therefore, it is necessary to select lubricants with higher viscosity and anti-wear properties, and appropriately increase the lubrication frequency to reduce wear and extend the life of the chain. For conveying systems that convey materials with high hygiene requirements such as food and medicine, food-grade or pollution-free lubricants should be used, and the lubricants should be kept clean and appropriate to avoid contamination of the materials. In addition, in the daily maintenance of the conveying system, regular inspection of the tension, wear and lubrication status of the roller chain, and timely adjustment and lubrication are of great significance to ensure the reliable operation of the conveying system and the service life of the roller chain.
VII. Best Practices and Maintenance Recommendations for Roller Chain Lubrication
Choose the right lubricant
Choose the right type of lubricant, such as mineral oil-based lubricants, synthetic lubricants, greases, waxes, etc., according to the working environment, working conditions, materials and manufacturer recommendations of the roller chain. For example, under high temperature and high load conditions, synthetic lubricants with high viscosity, high dropping point and good anti-wear properties should be selected; in humid and watery environments, lubricants with waterproof or anti-emulsification properties should be selected; in sensitive environments such as food and medicine, food-grade lubricants that meet hygiene standards must be used.
Use the correct lubrication method
According to the structure, installation location and use requirements of the roller chain, select the appropriate lubrication method, such as manual application, brushing, oil gun injection, drip lubrication, splash lubrication, automatic lubrication system, etc. Ensure that the lubricant can be evenly distributed on the surfaces of each friction pair of the roller chain, especially in the contact area between the pin and the sleeve, and between the sleeve and the roller. For example, for high-speed and heavy-loaded roller chains, the use of an automatic lubrication system can achieve accurate, timely and quantitative lubrication, improve the lubrication effect and reliability; while for low-speed and light-loaded roller chains, manual lubrication may be simpler and more economical.
Regular inspection and maintenance
Develop a reasonable inspection and maintenance plan to regularly inspect, clean, lubricate and adjust the roller chain. The inspection content includes the wear, slack, operating status, and matching of the chain and sprocket of the roller chain. When cleaning, appropriate cleaning agents and tools should be used to remove impurities such as dust, oil, and iron filings on the roller chain, but care should be taken to avoid excessive cleaning that may cause lubricant loss. During the lubrication process, lubricants should be added according to the specified lubrication frequency and dosage, and the quality and cleanliness of the lubricant should be ensured. At the same time, according to the inspection results, the tension of the chain should be adjusted in time, and the severely worn parts should be replaced to maintain the good operating condition of the roller chain and extend its service life.
Record and analyze maintenance data
Establish a maintenance record for the roller chain, and record in detail the situation of each inspection, cleaning, lubrication, adjustment, and replacement of parts, including date, time, lubricant type, lubricant dosage, wear, slack, and other information. By analyzing and statistics of these data, we can understand the operating rules and wear trends of the roller chain, evaluate the lubrication effect and the effectiveness of maintenance measures, and further optimize the lubrication frequency and maintenance plan, and improve the reliability and operating efficiency of the equipment.
VIII. Summary
There is a close relationship between the lubrication frequency and life of the roller chain. Reasonable lubrication frequency can effectively reduce the wear of roller chains, reduce friction resistance, prevent corrosion and rust, and mitigate impact loads, thereby significantly extending their service life and improving the operating efficiency and reliability of equipment. However, determining the optimal lubrication frequency requires comprehensive consideration of multiple factors, including working environment and working conditions, type and quality of lubricants, design and manufacturing quality of roller chains, and maintenance and maintenance of equipment.
In practical applications, users should flexibly adjust the lubrication frequency and select appropriate lubricants and lubrication methods based on the specific use conditions of the roller chain and the manufacturer’s recommendations, combined with observation and monitoring results, and strengthen the daily maintenance and management of the equipment to ensure that the roller chain is always in good lubrication and operating conditions. By following best practices and maintenance recommendations, the performance potential of roller chains can be maximized, equipment operating costs can be reduced, production efficiency can be improved, and the demand for efficient and stable operation of mechanical equipment in industrial production can be met.
It is hoped that this article can help international wholesale buyers and related users better understand and master the relationship between roller chain lubrication frequency and life, and provide useful reference and guidance for the selection, use and maintenance of roller chains. During the use of the roller chain, if you encounter any problems or need further technical support, it is recommended to contact the roller chain manufacturer or professional technicians in time to ensure the safe and stable operation of the equipment and maximize the service life of the roller chain.
Post time: Jun-11-2025
