In the field of mechanical transmission, roller chains are widely used in industrial production lines, agricultural machinery, automotive manufacturing, logistics, and other applications due to their simple structure, high load-bearing capacity, and high cost-effectiveness. However, during roller chain operation, a phenomenon known as the “polygon effect” directly affects transmission smoothness, accuracy, and service life, making it a key characteristic that engineers, procurement personnel, and equipment maintainers must thoroughly understand.

First, Unveiling the Polygon Effect: What is the Polygon Effect of Roller Chains?

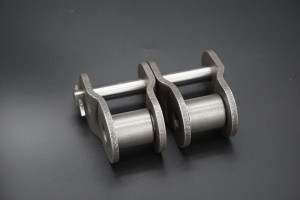

To understand the polygon effect, we first need to review the basic transmission structure of a roller chain. A roller chain transmission primarily consists of a driving sprocket, a driven sprocket, and a roller chain. As the driving sprocket rotates, the meshing of the sprocket teeth with the roller chain links transmits power to the driven sprocket, which in turn drives the subsequent working mechanisms. The so-called “polygon effect,” also known as “polygon effect error,” refers to the phenomenon in roller chain transmission where the chain’s winding line around the sprocket forms a polygon-like shape, causing the chain’s instantaneous speed and the driven sprocket’s instantaneous angular velocity to exhibit periodic fluctuations. Simply put, as the sprocket rotates, the chain does not advance at a constant linear velocity, but rather, as if moving along the edge of a polygon, its speed fluctuates continuously. Correspondingly, the driven sprocket also rotates at a constant angular velocity, but instead experiences periodic fluctuations in speed. This fluctuation is not a malfunction but an inherent characteristic of the roller chain transmission structure, but its impact cannot be ignored.

Second, Tracing the Origin: The Principle of the Polygon Effect

The polygon effect originates from the structural characteristics of roller chains and sprockets. We can clearly understand its generation process through the following key steps:

(I) Meshing Configuration of Chain and Sprocket

When a roller chain is wrapped around a sprocket, since the sprocket is a circular component composed of multiple teeth, when each link of the chain meshes with a sprocket tooth, the centerline of the chain forms a closed curve composed of several broken lines. This curve resembles a regular polygon (hence the name “polygon effect”). The number of sides of this “polygon” equals the number of teeth on the sprocket, and the side length of the “polygon” equals the chain pitch (the distance between the centers of two adjacent rollers).

(II) Motion Transmission of the Driving Sprocket

When the driving sprocket rotates at a constant angular velocity ω₁, the circumferential velocity of each tooth on the sprocket is constant (v₁ = ω₁ × r₁, where r₁ is the pitch radius of the driving sprocket). However, because the meshing point between the chain and sprocket constantly changes along the sprocket tooth profile, the distance from the meshing point to the sprocket center (i.e., the instantaneous turning radius) varies periodically as the sprocket rotates. Specifically, when the chain rollers fit neatly into the groove bottom between the sprocket teeth, the distance from the meshing point to the sprocket center is minimum (approximately the sprocket tooth root radius); when the chain rollers contact the sprocket tooth tips, the distance from the meshing point to the sprocket center is maximum (approximately the sprocket tooth tip radius). This periodic variation in the instantaneous turning radius directly causes fluctuations in the chain’s instantaneous linear velocity.

(III) Angular Velocity Fluctuation of the Driven Sprocket

Because the chain is a rigid transmission component (considered inextensible during transmission), the chain’s instantaneous linear velocity is directly transmitted to the driven sprocket. The instantaneous angular velocity ω₂ of the driven sprocket, the instantaneous linear velocity v₂ of the chain, and the instantaneous rotation radius r₂’ of the driven sprocket satisfy the relationship ω₂ = v₂ / r₂’.

Because the instantaneous linear velocity v₂ of the chain fluctuates, the instantaneous rotation radius r₂’ at the meshing point on the driven sprocket also changes periodically with the rotation of the driven sprocket (the principle is the same as that of the driving sprocket). These two factors work together to cause the instantaneous angular velocity ω₂ of the driven sprocket to exhibit more complex periodic fluctuations, which in turn affects the output stability of the entire transmission system.

Third, Visual Presentation: Specific Manifestations of the Polygon Effect

The polygon effect manifests itself in many ways in roller chain transmission systems. It not only affects transmission accuracy but also causes vibration, noise, and other problems. Long-term operation can also accelerate component wear and reduce equipment life. Specific manifestations include the following:

(1) Periodic Fluctuation of Transmission Speed

This is the most direct and core manifestation of the polygon effect. Both the chain’s instantaneous linear velocity and the driven sprocket’s instantaneous angular velocity exhibit periodic fluctuations as the sprocket rotates. The frequency of these fluctuations is closely related to the sprocket’s rotational speed and the number of teeth: the higher the sprocket speed and the fewer the teeth, the higher the frequency of the speed fluctuations. Furthermore, the amplitude of the speed fluctuations is also related to the chain pitch and the number of sprocket teeth: the larger the chain pitch and the fewer the sprocket teeth, the greater the amplitude of the speed fluctuations.

For example, in a roller chain drive system with a small number of teeth (e.g., z = 10) and a large pitch (e.g., p = 25.4mm), when the driving sprocket rotates at a high speed (e.g., n = 1500 r/min), the chain’s instantaneous linear velocity can fluctuate over a wide range, causing noticeable “jumps” in the driven working mechanism (e.g., conveyor belt, machine tool spindle, etc.), seriously affecting transmission accuracy and work quality. (2) Impact and Vibration

Due to the sudden change in chain speed (from one zigzag direction to another), periodic impact loads are generated during the meshing process between the chain and sprocket. This impact load is transmitted through the chain to components such as the sprocket, shaft, and bearings, causing vibration throughout the transmission system.

The frequency of vibration is also related to the sprocket’s rotational speed and number of teeth. When the vibration frequency approaches or coincides with the equipment’s natural frequency, resonance can occur, further amplifying the vibration amplitude. This not only affects the normal operation of the equipment but can also cause loosening and damage to components, and even lead to safety accidents.

(3) Noise Pollution

Impact and vibration are the main causes of noise. During roller chain transmission, the impact of the meshing between the chain and sprocket, the collision between chain pitches, and the structure-borne noise generated by vibration transmitted to the equipment frame all contribute to the noise of roller chain transmission systems.

The more pronounced the polygon effect (e.g., larger pitch, fewer teeth, higher rotational speed), the more severe the impact and vibration, and the greater the noise generated. Long-term exposure to high noise levels not only affects operators’ hearing but also interferes with on-site production control and communication, reducing work efficiency.

(IV) Increased Component Wear

Cyclic impact loads and vibration accelerate the wear of components such as roller chains, sprockets, shafts, and bearings. Specifically:

Chain Wear: Impact increases the contact stress between the chain rollers, bushings, and pins, accelerating wear and gradually lengthening the chain pitch (commonly known as “chain stretching”), further exacerbating the polygon effect.

Sprocket Wear: Frequent impact and friction between the sprocket teeth and the chain rollers can cause tooth surface wear, tooth tip sharpening, and tooth root cracks, resulting in reduced sprocket meshing performance.

Shaft and Bearing Wear: Vibration and impact subject shafts and bearings to additional radial and axial loads, accelerating wear on the bearing’s rolling elements, inner and outer races, and journals, reducing bearing service life and even causing shaft bending.

(V) Reduced Transmission Efficiency

The impact, vibration, and additional friction losses caused by the polygon effect reduce the transmission efficiency of roller chain transmission systems. On the one hand, speed fluctuations can cause unstable operation of the working mechanism, requiring more energy to overcome the additional loads caused by the fluctuations. On the other hand, increased wear increases frictional resistance between components, further increasing energy loss. Over long-term operation, this reduced efficiency can significantly increase the equipment’s energy consumption and raise production costs.

Fourth, Scientific Response: Effective Strategies to Mitigate the Polygon Effect

Although the polygon effect is an inherent characteristic of roller chain transmissions and cannot be completely eliminated, it can be effectively mitigated through appropriate design, selection, and maintenance measures, thereby improving the smoothness, accuracy, and service life of the transmission system. Specific strategies are as follows:

(I) Optimizing Sprocket Design and Selection

Increasing the Number of Sprocket Teeth: While meeting the transmission ratio and installation space requirements, appropriately increasing the number of sprocket teeth can reduce the ratio of the number of sides to the length of the “polygon,” reducing the fluctuation in the instantaneous turning radius and thus effectively minimizing the magnitude of speed fluctuations. Generally speaking, the number of teeth on the driving sprocket should not be too small (generally, no fewer than 17 teeth is recommended). For high-speed transmissions or applications requiring high smoothness, a higher number of sprocket teeth (e.g., 25 or more) should be selected. Reducing sprocket pitch diameter errors: Improving sprocket machining accuracy and reducing manufacturing errors and circular runout errors in the sprocket pitch diameter ensures smoother changes in the instantaneous rotation radius of the meshing point during sprocket rotation, reducing shock and vibration.

Using sprockets with special tooth profiles: For applications requiring extremely smooth transmission, sprockets with special tooth profiles (such as arc-shaped sprockets) can be used. Arc-shaped teeth make the meshing process between the chain and sprocket smoother, reducing meshing shock and thus alleviating the impact of the polygon effect.

(II) Properly Selecting Chain Parameters

Reducing chain pitch: The chain pitch is one of the key parameters affecting the polygon effect. The smaller the pitch, the smaller the side length of the “polygon” and the smaller the fluctuation in the chain’s instantaneous linear velocity. Therefore, while meeting load-bearing capacity requirements, chains with smaller pitches should be selected. For high-speed, precision transmission applications, roller chains with small pitches (such as ISO standards 06B and 08A) are recommended. Selecting high-precision chains: Improving chain manufacturing precision, such as reducing chain pitch deviation, roller radial runout, and bushing-pin clearance, ensures smoother chain motion during operation and reduces the polygon effect exacerbated by insufficient chain precision.

Using tensioning devices: Properly configuring chain tensioning devices (such as spring tensioners and weight tensioners) ensures the chain maintains proper tension, reducing chain slack and vibration during operation, thereby mitigating the impact and speed fluctuations caused by the polygon effect.

(III) Controlling the operating parameters of the transmission system
Limiting transmission speed: The higher the sprocket speed, the greater the speed fluctuation, impact, and vibration caused by the polygon effect. Therefore, when designing the transmission system, the transmission speed should be appropriately limited based on the chain and sprocket specifications. For standard roller chains, the maximum allowable speed is usually clearly stated in the product manual and should be strictly adhered to.

Optimizing the transmission ratio: Choosing a reasonable transmission ratio and avoiding excessively large ratios (especially in speed reduction transmission) can reduce the angular velocity fluctuations of the driven sprocket. In a multi-stage transmission system, the highest transmission ratio should be assigned to the lower speed stage to minimize the impact of the polygon effect on the higher speed stage.

(IV) Strengthen Equipment Installation and Maintenance

Ensure installation accuracy: When installing a roller chain transmission system, ensure that the parallelism error between the driving and driven sprocket axes, the center distance error between the two sprockets, and the sprocket end face circular runout error are within the allowable range. Inadequate installation accuracy can exacerbate load imbalance and poor meshing between the chain and sprocket, further amplifying the polygon effect.

Regular Lubrication and Maintenance: Regularly lubricating the roller chain and sprockets can reduce friction between components, slow wear, extend the service life of the chain and sprockets, and also mitigate shock and vibration to a certain extent. Select an appropriate lubricant (such as oil or grease) based on the equipment’s operating environment and conditions, and lubricate and inspect the equipment at the prescribed intervals. Replace worn parts promptly: When the chain exhibits significant pitch elongation (generally exceeding 3% of the original pitch), roller wear is severe, or sprocket tooth wear exceeds the specified limit, the chain or sprocket should be replaced promptly to prevent excessive component wear from exacerbating the polygon effect and potentially leading to equipment failure.

Fifth, Summary
The polygon effect of roller chains is an inherent characteristic of their transmission structure. It significantly impacts the performance and service life of the transmission system by affecting transmission speed stability, generating shock vibration and noise, and accelerating component wear. However, by thoroughly understanding the principles and specific manifestations of the polygon effect and implementing scientific and appropriate mitigation strategies (such as optimizing sprocket and chain selection, controlling operating parameters, and strengthening installation and maintenance), we can effectively mitigate the negative impacts of the polygon effect and fully utilize the advantages of roller chain transmission.
