The influence of welding deformation on the bearing capacity of roller chains

The influence of welding deformation on the bearing capacity of roller chains: in-depth analysis and solutions
In the field of mechanical transmission, roller chains, as a key transmission element, are widely used in many industries such as industrial production and transportation. Its main function is to transmit power and motion, and the bearing capacity is an important indicator to measure the performance of roller chains, which is directly related to the efficiency, reliability and service life of the transmission system. As a common problem in the manufacturing process of roller chains, welding deformation has an important influence on the bearing capacity of roller chains. This article will deeply explore the influence mechanism, influencing factors and corresponding solutions of welding deformation on the bearing capacity of roller chains.

1. Overview of the structure and bearing capacity of roller chains

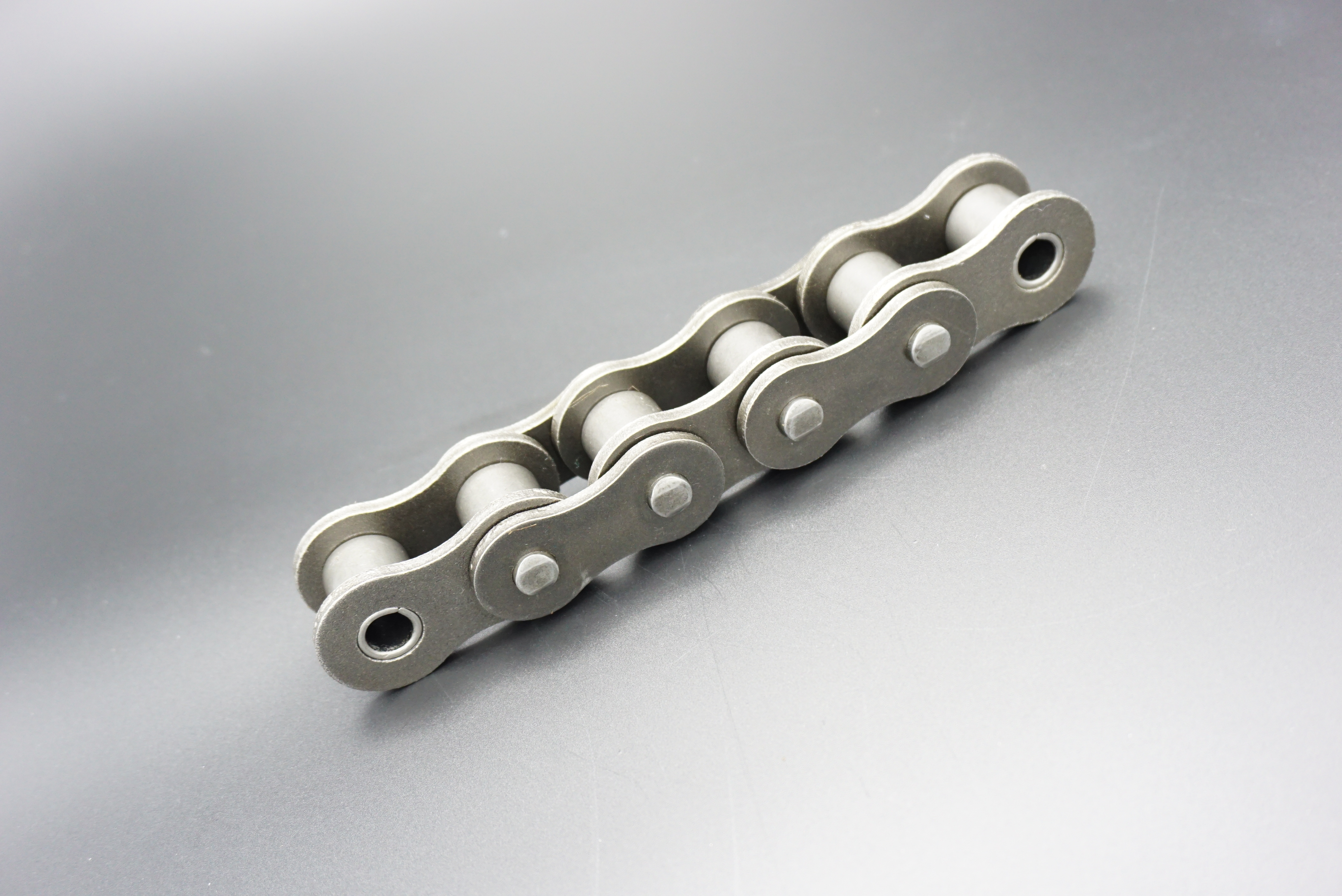

Roller chains are usually composed of basic components such as inner chain plates, outer chain plates, pins, sleeves and rollers. These components cooperate with each other to enable the roller chain to roll and transmit smoothly on the sprocket. The bearing capacity of the roller chain mainly depends on the strength and matching accuracy of its components. Under normal working conditions, the roller chain needs to withstand a variety of complex load forms such as tension, pressure, bending stress, etc.
Generally speaking, the load-bearing capacity of roller chains is affected by many factors, including the chain’s material, size, manufacturing process, lubrication conditions, and working environment. High-quality materials and reasonable manufacturing processes can improve the strength and wear resistance of roller chains, thereby enhancing their load-bearing capacity. Good lubrication conditions can reduce friction and wear, extend the service life of roller chains, and indirectly improve their load-bearing capacity.

2. The concept and causes of welding deformation
Welding deformation refers to the uneven volume expansion and contraction of the workpiece as a whole or locally due to local heating and cooling during the welding process, which causes changes in shape and size. In the manufacture of roller chains, welding processes are often used to connect various components, such as welding the pin shaft to the outer chain plate, or welding the sleeve to the inner chain plate.
Welding deformation is mainly caused by the following reasons:
Uneven heating: During the welding process, the weld area is heated at high temperature, while the surrounding material is at a lower temperature. This uneven heating causes inconsistent thermal expansion of the material, with the weld area expanding more and the surrounding area expanding less, resulting in welding stress and deformation.
Metal structure transformation: The metal material in the heat affected zone of welding will undergo a structure transformation under high temperature, such as from austenite to martensite. This structure transformation is accompanied by a change in volume, which will cause shrinkage or expansion of the local area, and then cause welding deformation.
Unreasonable welding sequence: If the welding sequence is not arranged properly, the restraint of the workpiece during welding will be uneven, so that the welding stress in some areas cannot be effectively released, thereby aggravating the degree of welding deformation.

3. The mechanism of the influence of welding deformation on the bearing capacity of roller chain
Welding deformation will affect the bearing capacity of roller chain from many aspects, mainly in the following aspects:
Affecting the geometric shape and dimensional accuracy of components: Welding deformation may cause distortion, bending or dimensional deviation of various components of roller chain. For example, the outer chain plate or inner chain plate may be wavy or locally uneven after welding, which will destroy the original design shape and dimensional accuracy of the chain plate. In the transmission process of the roller chain, the chain plate needs to be closely matched with the tooth profile of the sprocket to ensure accurate transmission of power. If the shape and size of the chain plate change, it will lead to poor meshing between the chain plate and the sprocket, increase the impact and vibration of the chain during operation, and thus reduce the load-bearing capacity of the roller chain.
Reduce the strength and rigidity of the components: The welding stress generated during the welding deformation process will cause microscopic defects and structural changes inside the metal material of the roller chain. These defects and structural changes will reduce the strength and rigidity of the material, making the roller chain more susceptible to deformation and damage when bearing loads. For example, the metal material in the heat-affected zone of welding may coarsen its grains due to high temperature, resulting in a decrease in the mechanical properties of the material. In addition, welding deformation may also cause local stress concentration in the weld area, further weakening the strength and load-bearing capacity of the weld.
Destroy the matching accuracy between components: There is a strict matching relationship between the various components of the roller chain, such as the pin and the sleeve, the chain plate and the pin, etc. Welding deformation may cause the matching clearance between these components to increase or the matching is too tight. When the matching clearance is too large, the roller chain will produce greater shaking and impact during operation, accelerate the wear of the components, and reduce the load-bearing capacity. If the fit is too tight, the roller chain will be difficult to rotate and move freely, increase the running resistance, and also affect its load-bearing capacity.

4. Specific manifestations of the impact of welding deformation on the load-bearing capacity of roller chains
Decrease in static load capacity: Under static load, the maximum static tension that the roller chain can withstand after welding deformation will be significantly reduced due to the reduction of component strength and stiffness and the destruction of fit accuracy. This means that under the same static load, roller chains with severe welding deformation are more likely to fail due to plastic deformation or fracture.
Reduced fatigue load capacity: Roller chains are usually subjected to repeated cyclic loads during actual work, and fatigue load capacity is one of its important performance indicators. Factors such as changes in material structure caused by welding deformation, welding stress, and poor fit between components will make it easier for fatigue cracks in roller chains to initiate and expand under cyclic loads, thereby reducing their fatigue life and fatigue load capacity.
Weakened dynamic load capacity: Under dynamic working conditions, roller chains need to withstand complex loads such as impact and vibration. The geometric deviation and matching problems of components caused by welding deformation will increase the impact load of the roller chain in dynamic operation, make the movement unstable, and thus reduce its dynamic bearing capacity.

5. Factors affecting welding deformation and control measures
In order to reduce the adverse effects of welding deformation on the bearing capacity of roller chains, it is necessary to have a deep understanding of the factors affecting welding deformation and take corresponding control measures.
Design factors
Structural design optimization: In the structural design stage of roller chains, symmetrical structural forms should be used as much as possible to reduce the degree of restraint and stress concentration during welding. At the same time, the position and size of the welds should be reasonably selected to avoid excessive concentration or size of the welds to reduce the possibility of welding deformation.
Joint form selection: According to the connection requirements of each component of the roller chain, select a suitable joint form. For example, the use of butt joints can reduce the degree of welding deformation, while lap joints are relatively easy to produce larger welding deformation.
Process factors
Welding method selection: Different welding methods have different degrees of influence on welding deformation. For example, gas shielded welding has relatively concentrated welding heat and a small heat-affected zone, so the welding deformation is relatively small; while arc welding is prone to large welding deformation due to heat dispersion. Therefore, in the manufacture of roller chains, appropriate welding methods should be selected according to specific circumstances to control welding deformation.
Welding parameter control: Welding parameters such as welding current, voltage, welding speed, etc. have a direct impact on welding deformation. Reasonable control of welding parameters can effectively reduce welding deformation. For example, appropriately reducing welding current and voltage can reduce welding heat input, thereby reducing welding deformation; while appropriately increasing welding speed can shorten welding time, reduce the degree of material heating, and also help control welding deformation.
Welding sequence optimization: Reasonable arrangement of welding sequence can effectively control welding deformation. For multiple welds of roller chains, welding sequences such as symmetrical welding and segmented back welding should be adopted so that welding stress can be released in time during welding, thereby reducing the accumulation of welding deformation.
Application of fixtures: In the welding process of roller chains, the use of appropriate fixtures can effectively limit welding deformation. Fixtures can provide sufficient rigid support to keep the workpiece in a stable shape and size during welding. For example, the use of positioning welding fixtures can ensure the position and dimensional accuracy of the weld and reduce the influence of welding deformation on the matching accuracy of roller chain components.

6. Methods for detecting and evaluating welding deformation
In order to accurately evaluate the influence of welding deformation on the bearing capacity of roller chain, effective detection and evaluation methods are needed.
Dimension detection: By measuring the dimensional deviation of each component of roller chain, such as the length, width, thickness of chain plate and the diameter of pin shaft, the influence of welding deformation on the dimensional accuracy of components can be intuitively understood. Commonly used dimensional detection tools include vernier calipers, micrometers, gauge blocks, etc.
Shape detection: Optical instruments, coordinate measuring instruments and other equipment are used to detect the shape of roller chain components, such as the flatness, straightness and roundness of chain plates. The changes in these shape parameters can reflect the degree of damage to the geometric shape of components caused by welding deformation, and then evaluate its influence on the bearing capacity of roller chain.
Non-destructive testing: Non-destructive testing technologies such as ultrasonic testing and radiographic testing can detect defects inside roller chain welds, such as cracks, pores, slag inclusions, etc. These internal defects will affect the strength and bearing capacity of welds. Non-destructive testing can timely discover and deal with existing problems to ensure the quality and performance of roller chains.
Mechanical property test: Mechanical property tests such as tensile test and fatigue test are carried out on roller chains after welding deformation, which can directly measure performance indicators such as static load bearing capacity and fatigue load bearing capacity. By comparing with the performance data of standard roller chains, the specific impact of welding deformation on the bearing capacity of roller chains can be accurately evaluated.

7. Solutions and improvement measures
In view of the impact of welding deformation on the bearing capacity of roller chains, the following solutions and improvement measures can be taken:
Optimize manufacturing process: In the manufacturing process of roller chains, continuously optimize welding process parameters and operation methods, adopt advanced welding technology and equipment, and improve welding quality and stability. At the same time, strengthen the quality control of raw materials to ensure that the performance and quality of materials meet the requirements to reduce the possibility of welding deformation.
Carry out heat treatment process: Appropriate heat treatment of roller chains after welding, such as annealing and normalizing, can eliminate welding stress, improve the organization and performance of materials, and improve the bearing capacity of roller chains. The heat treatment process should be reasonably selected and controlled according to the material and specific conditions of the roller chain.
Strengthen quality inspection and control: Establish a strict quality inspection system to monitor the entire production process of the roller chain to ensure that each process meets the quality requirements. Carry out comprehensive inspection and evaluation of the roller chain after welding, including inspection of size, shape, appearance, mechanical properties, etc., timely discover and deal with existing problems, and ensure the product quality of the roller chain.
Adopt advanced design and manufacturing technology: With the continuous development of computer technology and advanced manufacturing technology, computer-aided design (CAD), computer-aided manufacturing (CAM), finite element analysis (FEA) and other technologies can be used to optimize and analyze the structural design, welding process, and load-bearing capacity of the roller chain. By simulating and predicting the impact of welding deformation on the load-bearing capacity of the roller chain, effective measures can be taken in advance to control and improve it, and improve the design and manufacturing level of the roller chain.

8. Actual case analysis
In order to more intuitively illustrate the impact of welding deformation on the load-bearing capacity of the roller chain and the effectiveness of the solution, we can refer to the following actual cases.
When a roller chain manufacturer was producing a batch of roller chains for heavy-duty mechanical transmission, it was found that some products had early failure during use. After testing and analysis, it was found that the bearing capacity of the roller chain decreased due to welding deformation. The company optimized the welding process, adjusted the welding parameters and welding sequence, and adopted new fixtures to control welding deformation. At the same time, it strengthened the quality control of raw materials and quality inspection during the production process. After a series of improvement measures, the roller chains produced have been significantly improved in terms of dimensional accuracy, shape accuracy and mechanical properties. The bearing capacity meets the design requirements, and it shows good performance and reliability in practical applications, effectively solving the problems caused by welding deformation.

9. Conclusion
Welding deformation has an important influence on the bearing capacity of roller chains. It reduces the static load bearing capacity, fatigue load bearing capacity and dynamic load bearing capacity of roller chains by changing the geometric shape, dimensional accuracy, strength and stiffness of roller chain components and destroying the matching accuracy between components. In order to improve the quality and performance of roller chains and ensure their reliable operation under various working conditions, effective measures must be taken to control welding deformation. This includes optimizing the design, rationally selecting welding process parameters, adopting advanced manufacturing technology and quality inspection methods, etc. By comprehensively considering and solving the problem of welding deformation, the load-bearing capacity of roller chains can be greatly improved, meeting the market demand for high-quality roller chains, and providing strong support for the development of the mechanical transmission field.
