The impact of welding deformation on the life of roller chains: in-depth analysis and solutions

The impact of welding deformation on the life of roller chains: in-depth analysis and solutions

In the manufacturing and application process of roller chains, welding deformation is a factor that cannot be ignored, and it has a profound impact on the life of roller chains. This article will deeply explore the impact mechanism, influencing factors and corresponding solutions of welding deformation on the life of roller chains, so as to help relevant enterprises and practitioners better understand and deal with this problem, improve the quality and reliability of roller chains, and meet the needs of international wholesale buyers for high-quality roller chains.

1. Working principle and structural characteristics of roller chains

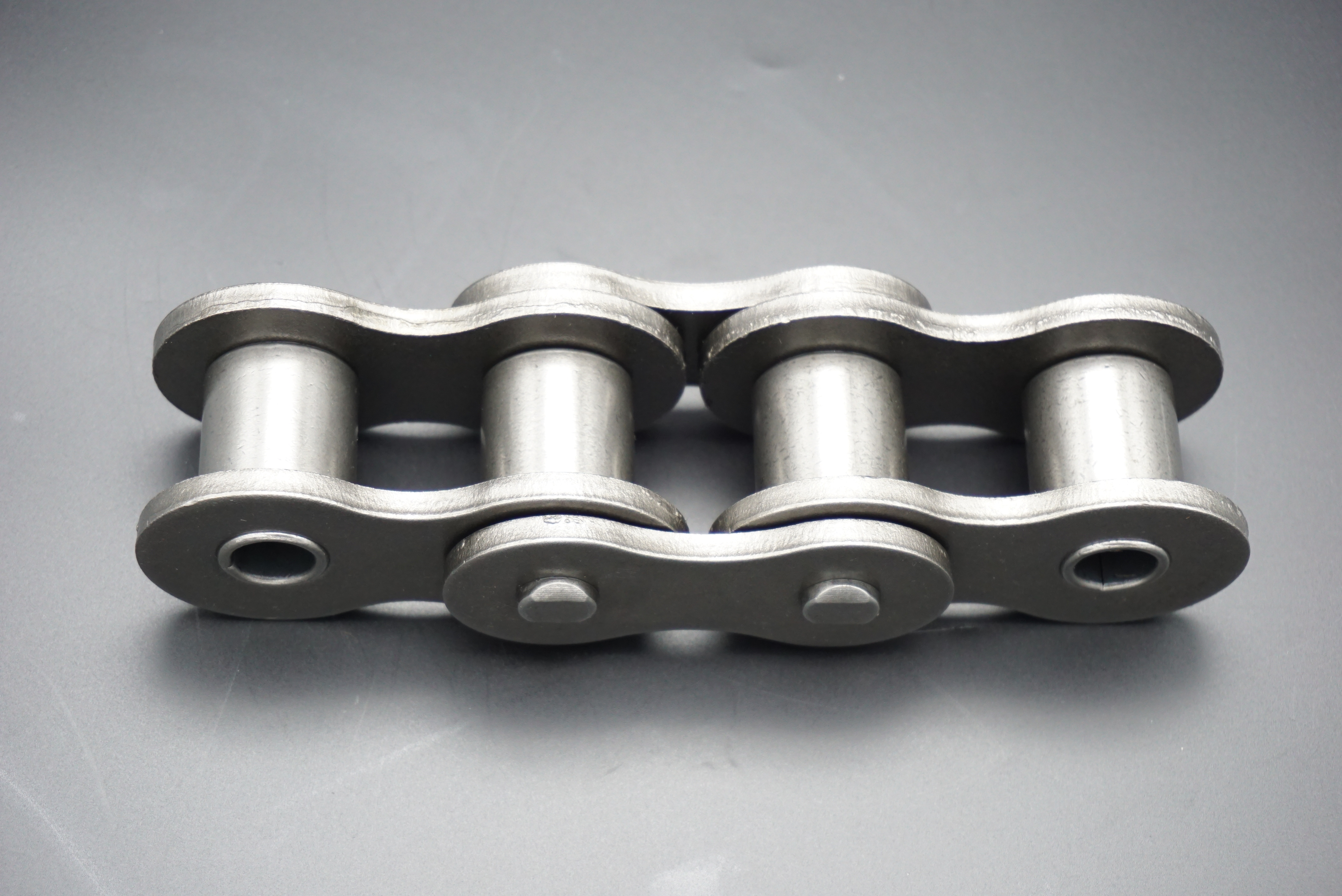

Roller chains are an important mechanical basic component widely used in mechanical transmission and conveying systems. It is mainly composed of basic components such as inner chain plates, outer chain plates, pins, sleeves and rollers. During the transmission process, the roller chain transmits power and motion through the meshing of rollers and sprocket teeth. The structural design of the roller chain makes it have good flexibility, high load-bearing capacity and transmission efficiency, and can operate stably under various complex working conditions.
The role of roller chains in mechanical transmission is crucial. It can realize power transmission between different axes, and the machine ensures the normal operation of the equipment. From simple bicycle chains to transmission systems on complex industrial production lines, roller chains play an indispensable role. Its transmission process is relatively smooth, which can reduce vibration and impact, reduce noise, and improve the operating stability and reliability of equipment. It is one of the indispensable key components in the modern machinery industry.

2. Analysis of the causes of welding deformation
(I) Welding process parameters
In the manufacturing process of roller chains, the selection of welding process parameters has a direct impact on welding deformation. For example, excessive or insufficient welding current will lead to different welding problems, which in turn cause deformation. When the welding current is too large, it will cause local overheating of the weldment, coarse grains of metal materials, increase the hardness and brittleness of the weld and heat-affected zone, reduce the plasticity and toughness of the material, and easily cause cracks and deformation during subsequent use. If the welding current is too small, the arc will be unstable, the weld will not be penetrated enough, resulting in weak welding, and it may also cause stress concentration in the weld area and deformation.
Welding speed is also a key factor. If the welding speed is too fast, the heat distribution of the weld will be uneven, the weld will be poorly formed, and defects such as incomplete penetration and slag inclusion will easily occur. These defects will become potential sources of welding deformation. At the same time, too fast welding speed will also lead to rapid cooling of weldment, increase the hardness and brittleness of welded joints, and reduce their ability to resist deformation. On the contrary, too slow welding speed will cause weldment to stay at high temperature for too long, resulting in excessive heating of weldment, grain growth, material performance degradation, and welding deformation.
(II) Fixtures
The design and use of fixtures play a vital role in controlling welding deformation. Reasonable fixtures can effectively fix weldment, provide a stable welding platform, and reduce displacement and deformation during welding. If the rigidity of the fixture is insufficient, it cannot effectively resist welding stress during welding, and weldment is prone to movement and deformation. For example, in the welding of roller chains, if the fixture cannot firmly fix components such as pins and sleeves, the heat generated during welding will cause these components to expand and contract, resulting in relative displacement, and ultimately causing welding deformation.
In addition, the positioning accuracy of the fixture will also affect welding deformation. If the positioning device of the fixture is not accurate enough, the assembly position of the welded parts will be inaccurate, and the relative position relationship between the welded parts will change during welding, which will cause welding deformation. For example, the inner and outer link plates of the roller chain need to be precisely aligned during assembly. If the positioning error of the fixture is large, the welding position between the link plates will deviate, resulting in deformation of the overall structure after welding, affecting the normal use and life of the roller chain.
(III) Material properties
The thermal physical properties and mechanical properties of different materials vary greatly, which also has a significant impact on welding deformation. The thermal expansion coefficient of the material determines the degree of expansion of the weldment when heated. Materials with large thermal expansion coefficients will produce greater expansion during welding heating, and correspondingly larger shrinkage during cooling, which can easily lead to welding deformation. For example, some high-strength alloy materials, although they have good mechanical properties, often have higher thermal expansion coefficients, which are prone to large deformation during welding, increasing the difficulty of the welding process.
The thermal conductivity of the material should not be ignored either. Materials with good thermal conductivity can quickly transfer heat from the welding area to the surrounding area, making the temperature distribution of the weldment more uniform, reducing local overheating and uneven shrinkage, and thus reducing the possibility of welding deformation. On the contrary, materials with poor thermal conductivity will concentrate welding heat in a local area, resulting in an increase in the temperature gradient of the weldment, resulting in greater welding stress and deformation. In addition, mechanical properties such as yield strength and elastic modulus of the material will also affect its deformation behavior during welding. Materials with lower yield strength are more likely to undergo plastic deformation when subjected to welding stress, while materials with smaller elastic modulus are more likely to undergo elastic deformation. These deformations may not be fully recovered after welding, resulting in permanent welding deformation.

3. Specific effects of welding deformation on roller chain life
(I) Stress concentration
Welding deformation will cause stress concentration in the weld area and heat-affected zone of the roller chain. Due to the uneven heating and cooling generated during welding, local areas of the weldment will produce large thermal stress and tissue stress. These stresses form a complex stress field inside the weldment, and the stress concentration is more serious at the welding deformation site. For example, at the welding point between the pin and the sleeve of the roller chain, if there is welding deformation, the stress concentration factor in this area will increase significantly.
Stress concentration will accelerate the initiation and propagation of fatigue cracks in the roller chain during use. When the roller chain is subjected to alternating loads, the material at the stress concentration site is more likely to reach the fatigue limit and produce tiny cracks. These cracks continue to expand under the action of cyclic loads, which may eventually lead to the fracture of welds or weldments, greatly shortening the service life of roller chains. Studies have shown that when the stress concentration factor increases by 1 times, the fatigue life may decrease by an order of magnitude or more, which poses a serious threat to the reliability of roller chains.
(ii) Loss of dimensional accuracy
Welding deformation will change the geometric dimensions of the roller chain, resulting in its inability to meet the dimensional accuracy required by the design. Roller chains have strict dimensional tolerance requirements during the manufacturing process, such as the diameter of the roller, the thickness and length of the chain plate, and the diameter of the pin shaft. If the welding deformation exceeds the allowable tolerance range, problems will occur during the assembly and use of the roller chain.
The loss of dimensional accuracy will affect the meshing performance of the roller chain and the sprocket. When the roller diameter of the roller chain becomes smaller or the chain plate is deformed, the roller and the sprocket teeth are not meshed well, resulting in increased impact and vibration during the transmission process. This will not only accelerate the wear of the roller chain itself, but also damage other transmission components such as the sprocket, reducing the efficiency and life of the entire transmission system. At the same time, dimensional deviation may also cause the roller chain to get stuck or jump teeth during the transmission process, further exacerbating the damage of the roller chain and significantly shortening its life.
(III) Reduced fatigue performance
Welding deformation will change the microstructure of the roller chain, thereby reducing its fatigue performance. During the welding process, due to local high-temperature heating and rapid cooling, the metal materials in the weld and heat-affected zone will undergo changes such as grain growth and uneven organization. These organizational changes will lead to a decrease in the mechanical properties of the material, such as uneven hardness, reduced plasticity, and reduced toughness.
The reduction in fatigue performance makes the roller chain more susceptible to fatigue failure when subjected to alternating loads. In actual use, the roller chain is usually in a state of frequent start-stop and speed change, and is subjected to complex alternating stresses. When the fatigue performance is reduced, a large number of microscopic cracks may appear in the roller chain at the beginning of use. These cracks gradually expand during subsequent use, eventually leading to the breakage of the roller chain. Experimental data show that the fatigue limit of the roller chain that has undergone welding deformation may be reduced by 30% – 50%, which is extremely unfavorable for the long-term stable operation of the roller chain.
(IV) Decreased wear resistance
Welding deformation will also have a negative impact on the wear resistance of the roller chain. Due to the effect of welding heat, the surface state of the material in the weld area and the heat-affected zone changes, and oxidation, decarburization and other phenomena may occur, which will reduce the hardness and wear resistance of the material surface. At the same time, the stress concentration and uneven organization caused by welding deformation will also cause the roller chain to wear more during use.
For example, during the meshing process between the roller chain and the sprocket, if there is welding deformation on the roller surface, the contact stress distribution between the roller and the sprocket teeth will be uneven, and wear and plastic deformation are likely to occur in the high stress area. With the increase of use time, the wear of the roller continues to increase, resulting in the pitch elongation of the roller chain, which further affects the meshing accuracy of the roller chain and the sprocket, forming a vicious circle, and ultimately shortening the service life of the roller chain due to excessive wear.

4. Control and preventive measures for welding deformation
(I) Optimize welding process parameters
Reasonable selection of welding process parameters is the key to controlling welding deformation. In the welding of roller chains, parameters such as welding current, welding speed, welding voltage, etc. should be accurately set according to factors such as material characteristics, thickness and structure of welded parts. Through a large number of experimental studies and production practices, the optimal welding parameter range for roller chains of different specifications can be summarized. For example, for small roller chains, a smaller welding current and a faster welding speed are used to reduce welding heat input and reduce the possibility of welding deformation; while for large roller chains, it is necessary to appropriately increase the welding current and adjust the welding speed to ensure the penetration and quality of the weld, and take corresponding anti-deformation measures.
In addition, the use of advanced welding processes and equipment can also help control welding deformation. For example, pulse welding technology controls the pulse width and frequency of the welding current to make the heat received by the weldment during the welding process more uniform, reduce heat input, and thus effectively reduce welding deformation. At the same time, automated welding equipment can improve the stability and consistency of the welding process, reduce welding parameter fluctuations caused by human factors, ensure welding quality, and thus control welding deformation.
(II) Improve the design of tooling and fixtures
The reasonable design and use of tooling and fixtures play a vital role in preventing welding deformation. In the manufacture of roller chains, fixtures with sufficient rigidity and good positioning accuracy should be designed according to the structural characteristics of the roller chain and the requirements of the welding process. For example, use fixture materials with greater rigidity, such as cast iron or high-strength alloy steel, and increase the strength and stability of the fixture through reasonable structural design, so that it can effectively resist the stress generated during welding and prevent weld deformation.
At the same time, improving the positioning accuracy of the fixture is also an important means to control welding deformation. Through the precise design and manufacture of positioning devices, such as positioning pins, positioning plates, etc., ensure that the position of the weldment during assembly and welding is accurate and correct, and reduce welding deformation caused by positioning errors. In addition, flexible fixtures can also be used to adjust according to the different shapes and sizes of weldments to meet the welding needs of roller chains of various specifications, and improve the versatility and adaptability of fixtures.
(III) Reasonable selection of materials
In the manufacture of roller chains, reasonable selection of materials is the basis for controlling welding deformation. Materials with good thermal physical properties and mechanical properties should be selected according to the working conditions and performance requirements of the roller chain. For example, selecting materials with a smaller thermal expansion coefficient can reduce thermal deformation during welding; selecting materials with good thermal conductivity is conducive to the rapid conduction and uniform distribution of welding heat, reducing welding stress and deformation.
In addition, for some high-strength and high-hardness materials, their welding performance should be fully considered. Under the premise of meeting the use requirements, try to select materials with better welding performance, or perform appropriate pretreatment of the materials, such as annealing, to improve their welding performance and reduce welding deformation. At the same time, through reasonable material matching and optimization of the material structure, the overall deformation resistance and performance of the roller chain can be improved, thereby extending its service life.
(IV) Post-welding treatment
Post-welding treatment is an important link in controlling welding deformation. Commonly used post-welding treatment methods include heat treatment and mechanical correction.
Heat treatment can eliminate welding residual stress, improve the organizational properties of weldments, and reduce welding deformation. For example, annealing the roller chain can refine the grains of the metal materials in the weld and heat-affected zone, reduce hardness and brittleness, and improve plasticity and toughness, thereby reducing the possibility of stress concentration and deformation. In addition, aging treatment also helps to stabilize the dimensional accuracy of the weldment and reduce deformation during subsequent use.
Mechanical correction can directly correct welding deformation. By applying external force, the weldment is restored to the shape and size required by the design. However, mechanical correction should be carried out after heat treatment to prevent the stress generated during the correction process from adversely affecting the weldment. At the same time, the magnitude and direction of the correction force should be strictly controlled during the mechanical correction process to avoid excessive correction leading to new deformation or damage.

5. Actual case analysis
(I) Case 1: A motorcycle roller chain manufacturer
During the production process, a motorcycle roller chain manufacturer found that some batches of roller chains broke after a period of use. After analysis, it was found that it was mainly due to stress concentration caused by welding deformation, which accelerated the initiation and expansion of fatigue cracks. The company took a series of measures to control welding deformation: first, the welding process parameters were optimized, and the optimal welding current and speed range were determined through repeated tests; second, the design of the fixture was improved, and the fixture material with better rigidity was used, and the positioning accuracy was improved; in addition, the material of the roller chain was optimized, and materials with a small thermal expansion coefficient and good welding performance were selected; finally, a heat treatment process was added after welding to eliminate welding residual stress. After the implementation of these improvement measures, the welding deformation of the roller chain has been effectively controlled, the fracture problem has been significantly improved, the product life has been increased by about 40%, the customer complaint rate has been greatly reduced, and the company’s market share has been further expanded.
(II) Case 2: A roller chain supplier for an industrial automation production line
When a roller chain supplier for an industrial automation production line provided roller chains to customers, the customer reported that the dimensional accuracy of the roller chain during the assembly process did not meet the requirements, resulting in noise and vibration problems in the transmission system. After investigation, it was found that this was due to the welding deformation exceeding the allowable tolerance range. In response to this problem, the supplier took the following solutions: on the one hand, the welding equipment was upgraded and modified, and an advanced automated welding system was adopted to improve the stability and accuracy of the welding process; on the other hand, the quality inspection during the welding process was strengthened, the welding parameters and weld deformation were monitored in real time, and the welding process was adjusted in time. At the same time, professional training was also conducted for operators to improve their welding skills and quality awareness. Through the implementation of these measures, the dimensional accuracy of the roller chain has been effectively guaranteed, the assembly problem has been solved, the customer satisfaction has been significantly improved, and the cooperation relationship between the two parties has become more stable.

6. Summary and Outlook
The impact of welding deformation on the life of roller chains is a complex and important issue, involving welding technology, fixtures, material properties and other aspects. By deeply understanding the causes and influencing mechanisms of welding deformation, taking effective measures such as optimizing welding process parameters, improving fixture design, rationally selecting materials and strengthening post-welding treatment, the adverse effects of welding deformation on the life of roller chains can be significantly reduced, the quality and reliability of roller chains can be improved, and the needs of international wholesale buyers for high-quality roller chains can be met.
In the future development, with the continuous advancement of mechanical manufacturing technology,With the development and application of new materials, the manufacturing process of roller chains will continue to innovate and improve. For example, new welding technologies such as laser welding and friction welding are expected to be more widely used in roller chain manufacturing. These technologies have the advantages of low heat input, fast welding speed and high welding quality, which can further reduce welding deformation and improve the performance and life of roller chains. At the same time, by establishing a more complete quality control system and standardized production process, the quality stability of roller chains can be better guaranteed, the competitiveness of enterprises in the international market can be enhanced, and a solid foundation can be laid for the sustainable and healthy development of the roller chain industry.
