The Difference Between Single-Pitch and Double-Pitch Roller Chains

The Difference Between Single-Pitch and Double-Pitch Roller Chains

In the fields of mechanical transmission and conveying, roller chains are widely used in various industrial applications as efficient and reliable transmission elements. Single-pitch and double-pitch roller chains are two common types of roller chains, each with unique characteristics and application scenarios. This article will delve into the differences between these two types of roller chains from multiple perspectives to help global high-end wholesale buyers better select the product that best suits their needs.

1. Basic Definition and Structure
(I) Single-Pitch Roller Chain

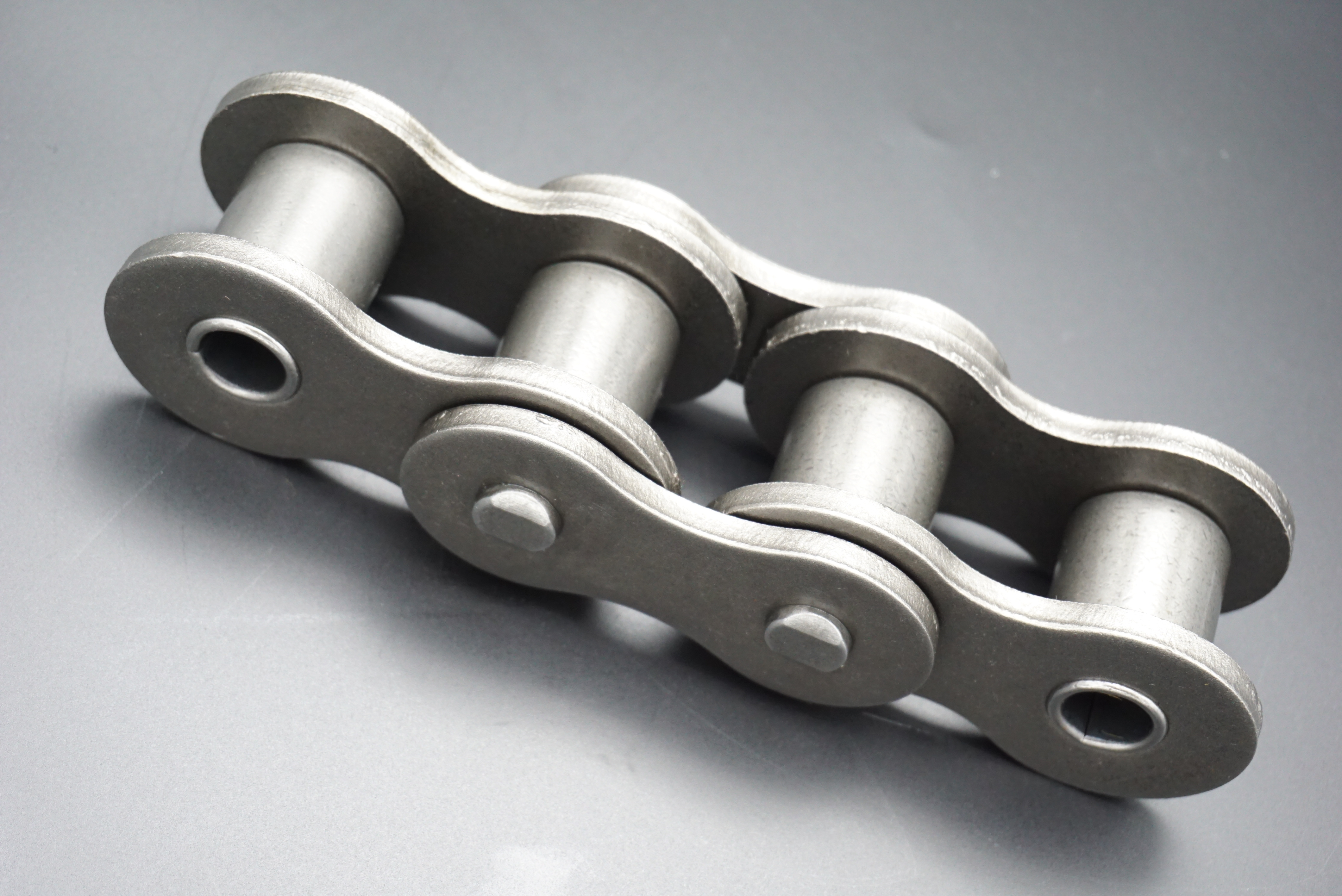

A single-pitch roller chain is designed and manufactured according to a standard pitch. The pitch is one of the chain’s fundamental parameters, determining its size and performance. It consists of alternating inner and outer links. The inner links consist of two inner plates and two bushings, while the outer links consist of two outer plates and a pin. The rollers fit over the bushings, connected by the pin and bushing. This structure ensures that single-pitch roller chains maintain excellent flexibility and stability during operation, making them suitable for a variety of transmission and conveying applications. (2) Double-Pitch Roller Chain
A double-pitch roller chain is a single-pitch roller chain with the pitch doubled. Its structure is similar to that of a single-pitch roller chain, but the chain plates are twice as long. This design gives double-pitch roller chains unique advantages in certain applications.

2. Performance Differences
(1) Load Capacity
Due to their smaller pitch, single-pitch roller chains are generally suitable for light- to medium-load applications. While their load capacity is relatively limited, they excel in high-precision and high-speed transmission. Double-pitch roller chains, however, have a greater load capacity due to their increased pitch. They can withstand greater loads and are suitable for transmission and conveying applications requiring heavy loads or high torque. For example, in conveying equipment that requires transporting heavy loads over long distances, double-pitch roller chains can better meet these requirements.
(2) Transmission Efficiency
Single-pitch roller chains generally offer higher transmission efficiency. Their smaller pitch and compact structure enable more precise engagement with the sprocket, reducing energy loss. While double-pitch roller chains offer strong load-bearing capacity, their larger pitch may compromise transmission efficiency to some extent. However, in some applications where transmission efficiency is less critical, double-pitch roller chains still offer significant advantages.
(III) Operating Speed
Single-pitch roller chains are suitable for high-speed transmissions. Their smaller pitch and lightweight construction enable smooth operation at higher speeds. Double-pitch roller chains are more suitable for lower speeds. However, their larger pitch and heavier construction may produce greater vibration and noise at higher speeds. Therefore, when selecting a roller chain, the decision between single-pitch and double-pitch roller chains should be based on the speed requirements of the application.
(IV) Service Life
The service life of a single-pitch roller chain is affected by a variety of factors, including the operating environment, lubrication conditions, and load conditions. Under good lubrication and maintenance conditions, single-pitch roller chains can have a longer service life. Due to their larger pitch and heavier construction, double-pitch roller chains may have a shorter service life under the same operating conditions. However, through optimized design and the use of high-quality materials, the service life of double-pitch roller chains can be significantly improved.

3. Application Scenarios
(I) Single-Pitch Roller Chains
Single-pitch roller chains are widely used in applications requiring high-precision and high-speed transmission. For example, in bicycles, motorcycles, and small machining equipment, single-pitch roller chains provide stable and reliable transmission. They are also suitable for compact equipment with high space requirements, as their smaller pitch allows for a more compact transmission system.
(II) Double-Pitch Roller Chains
Double-pitch roller chains are primarily used in heavy-load, low-speed conveying and transmission applications. For example, in mining machinery, agricultural machinery, and large conveying equipment, double-pitch roller chains can withstand heavy loads and meet long-distance transportation requirements. They are also suitable for applications requiring a reduced sprocket tooth count, as their larger pitch allows for use with sprockets with fewer teeth.

4. Installation and Maintenance
(I) Installation
Single-pitch roller chains are relatively simple to install. Due to its smaller pitch and lightweight construction, installation requires relatively low precision. Double-pitch roller chains, however, require higher precision during installation. Due to their larger pitch and heavier construction, proper engagement of the chain and sprockets must be ensured during installation. Furthermore, attention must be paid to chain tension during installation to prevent loosening or tooth skipping during operation.

(II) Maintenance
Maintenance for single-pitch roller chains primarily focuses on lubrication and cleaning. Regular lubrication reduces friction between the chain and sprockets, extending the chain’s service life. Furthermore, timely cleaning of the chain from dirt and debris can prevent the chain from binding or wear. Double-pitch roller chains require even more meticulous maintenance. In addition to lubrication and cleaning, regular chain tension checks are also necessary.
