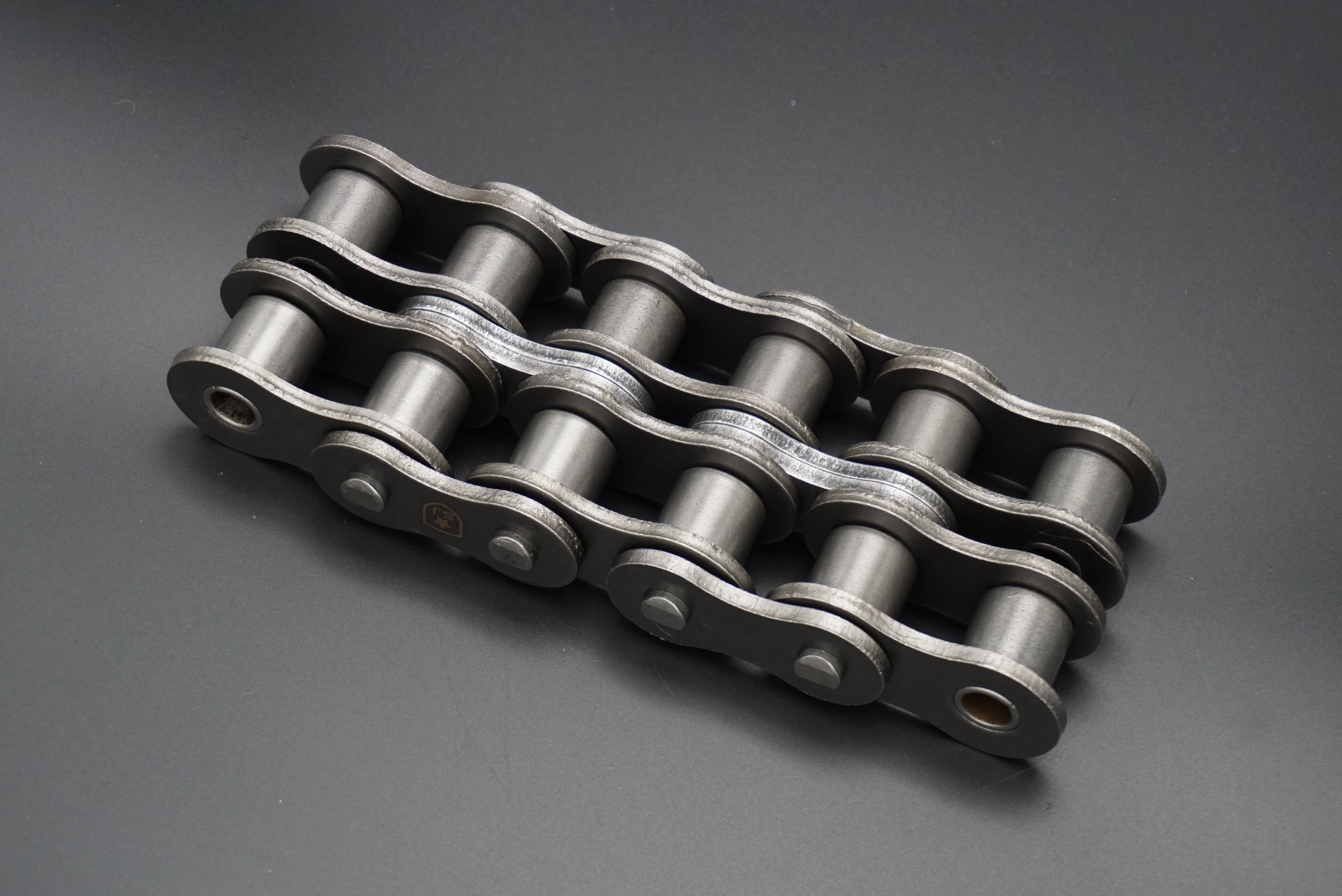

1. The Core Value of High-Precision Roller Chain Grinding: Why It’s the “Anchor” of Transmission Accuracy

Before discussing the technical requirements, we must first clarify: Why is professional grinding essential for high-precision roller chains? Compared to traditional machining methods like turning and milling, grinding, with its unique advantages, has become the core means of achieving micron-level precision in roller chains.

From an industrial perspective, whether in engine timing systems in automotive manufacturing, conveyor drives for intelligent logistics equipment, or power transmission in precision machine tools, roller chain precision requirements have moved from millimeter-level to micron-level. Roller roundness error must be controlled within 5μm, chain plate hole tolerances must be less than 3μm, and pin surface roughness must reach Ra0.4μm or less. These stringent precision requirements can only be reliably achieved through grinding.

Specifically, the core value of high-precision roller chain grinding lies in three key areas:

Error correction capability: Through the high-speed cutting of the grinding wheel, deformation and dimensional deviations caused by previous processes (such as forging and heat treatment) are precisely removed, ensuring dimensional consistency for each component;

Surface quality improvement: Grinding effectively reduces component surface roughness, reduces friction loss during chain operation, and extends service life;

Geometric accuracy assurance: For critical geometric tolerances such as roller roundness and cylindricity, pin straightness, and chainplate parallelism, the grinding process achieves control accuracy far exceeding that of other machining methods.

II. Core Technical Requirements for High-Precision Roller Chain Grinding: Comprehensive Control from Component to Component

The high-precision roller chain grinding process is not a single step; rather, it is a systematic process covering the three core components: rollers, pins, and chainplates. Each step is subject to strict technical standards and operating specifications.

(I) Roller Grinding: A “Micron-Level Battle” Between Roundness and Cylindricity

Rollers are key components in the meshing of roller chains and sprockets. Their roundness and cylindricity directly impact meshing smoothness and transmission efficiency. During roller grinding, the following technical requirements must be carefully controlled:
Dimensional Accuracy Control:
The roller’s outer diameter tolerance must strictly adhere to GB/T 1243-2006 or ISO 606. For high-precision grades (e.g., Grade C and above), the outer diameter tolerance must be controlled within ±0.01mm. Grinding requires a three-step process: rough grinding, semi-finishing grinding, and finishing grinding. Each step requires in-line inspection using a laser diameter gauge to ensure dimensional deviations remain within the permitted range. Geometric Tolerance Requirements:

Roundness: The roundness error of high-precision rollers must be ≤5μm. Double-center positioning must be used during grinding, along with high-speed grinding wheel rotation (linear speed ≥35m/s) to minimize the effects of centrifugal force on roundness.

Cylindricity: The cylindricity error must be ≤8μm. Adjusting the grinding wheel dressing angle (typically 1°-3°) ensures the straightness of the roller’s outer diameter.

End Face Parallelism: The parallelism error of the roller’s two end faces must be ≤0.01mm. End face positioning fixtures must be used during grinding to prevent meshing deviation caused by end face tilt.

Surface Quality Requirements:
The roller’s outer diameter must have a surface roughness of Ra 0.4-0.8μm. Surface defects such as scratches, burns, and scale must be avoided. During grinding, the grinding fluid concentration (typically 5%-8%) and the jet pressure (≥0.3MPa) must be controlled to dissipate grinding heat promptly and prevent surface burns. Furthermore, a fine-grit grinding wheel (e.g., 80#-120#) should be used during the fine grinding stage to improve surface finish.

(II) Pin Grinding: A “Precision Test” of Straightness and Coaxiality

The pin is the core component connecting the chain plates and rollers. Its straightness and coaxiality directly impact the flexibility and service life of the chain. The technical requirements for pin grinding focus on the following aspects:

Straightness Control:
The straightness error of the pin must be ≤0.005mm/m. During grinding, a “stable support + double center positioning” method must be used to prevent bending deformation caused by the pin’s own weight. For pins longer than 100mm, straightness checks must be performed every 50mm during the grinding process to ensure that overall straightness meets the requirements. Coaxiality Requirements:
The coaxiality error of the journals at both ends of the pin must be ≤0.008mm. During grinding, the center holes at both ends of the pin must be used as the reference (the center hole accuracy must meet Class A in GB/T 145-2001). The grinding wheel must be dressed and positioned to ensure the axis alignment of the journals at both ends. Furthermore, offline spot checks for coaxiality must be conducted using a three-dimensional coordinate measuring machine, with a minimum inspection rate of 5%. Surface Hardness and Grinding Compatibility:

Pin shafts must undergo heat treatment before grinding (usually carburizing and quenching to a hardness of HRC 58-62). Grinding parameters should be adjusted according to the hardness:

Rough grinding: Use a medium-grit grinding wheel (60#-80#), control the grinding depth to 0.05-0.1mm, and use a feed rate of 10-15mm/min.

Fine grinding: Use a fine-grit grinding wheel (120#-150#), control the grinding depth to 0.01-0.02mm, and use a feed rate of 5-8mm/min to avoid surface cracks or hardness loss caused by improper grinding parameters.

(III) Chainplate Grinding: Detailed Control of Hole Accuracy and Flatness

Chainplates are the backbone of roller chains. Their hole accuracy and flatness directly impact chain assembly accuracy and transmission stability. Chain plate grinding primarily targets two key areas: the chain plate hole and the chain plate surface. Technical requirements are as follows:
Chain plate hole grinding accuracy:
Aperture tolerance: The hole tolerance of high-precision chain plates must be controlled within H7 (e.g., for a φ8mm hole, the tolerance is +0.015mm to 0mm). Diamond grinding wheels (150#-200# grit) and a high-speed spindle (≥8000 rpm) are used to ensure precise hole dimensions.
Hole position tolerance: The center distance between adjacent holes must be ≤0.01mm, and the perpendicularity error between the hole axis and the chain plate surface must be ≤0.005mm. Grinding requires dedicated tooling and real-time monitoring with a CCD vision inspection system.
Chain plate surface grinding requirements:
The chain plate flatness error must be ≤0.003mm/100mm, and the surface roughness must reach Ra0.8μm. Grinding requires a “double-sided grinding” process. The synchronized rotation (linear speed ≥ 40 m/s) and feed of the upper and lower grinding wheels ensures parallelism and flatness on both sides of the chain. Furthermore, the grinding pressure (typically 0.2-0.3 MPa) must be controlled to prevent deformation of the chain due to uneven force.

III. Process Control for High-Precision Roller Chain Grinding: Comprehensive Assurance from Equipment to Management

To achieve these stringent technical requirements, simply setting processing parameters is insufficient. A comprehensive process control system, encompassing equipment selection, tooling design, parameter monitoring, and quality inspection, must also be established.

(I) Equipment Selection: The “Hardware Foundation” of High-Precision Grinding
Grinding Machine Selection: Choose a high-precision CNC grinding machine (positioning accuracy ≤ 0.001mm, repeatability ≤ 0.0005mm), such as Junker (Germany) or Okamoto (Japan). Ensure the machine’s accuracy meets processing requirements.
Grinding Wheel Selection: Select the appropriate grinding wheel type based on the component material (typically 20CrMnTi or 40Cr) and processing requirements. For example, a corundum grinding wheel is used for roller grinding, a silicon carbide grinding wheel is used for pin grinding, and a diamond grinding wheel is used for chainplate hole grinding.
Testing Equipment Configuration: High-precision testing equipment such as a laser diameter gauge, a three-dimensional coordinate measuring machine, a surface roughness tester, and a roundness tester are required to combine online and offline spot checks during the processing process. (II) Tooling Design: The “Key Support” for Precision and Stability

Positioning fixtures: Design specialized positioning fixtures for rollers, pins, and chains. For example, rollers utilize double-center positioning fixtures, pins utilize center-frame support fixtures, and chains utilize hole-positioning fixtures. This ensures precise positioning and zero play during the grinding process.

Clamping fixtures: Utilize flexible clamping methods (such as pneumatic or hydraulic clamping) to control clamping force (typically 0.1-0.2 MPa) to prevent component deformation caused by excessive clamping force. Furthermore, the positioning surfaces of the fixtures must be regularly polished (to a surface roughness of Ra 0.4 μm or less) to ensure positioning accuracy. (III) Parameter Monitoring: “Dynamic Guarantee” with Real-Time Adjustment
Processing Parameter Monitoring: The CNC system monitors key parameters such as grinding speed, feed rate, grinding depth, grinding fluid concentration, and temperature in real time. When any parameter exceeds the set range, the system automatically issues an alarm and shuts down the machine to prevent defective products.
Temperature Control: Heat generated during the grinding process is the primary cause of component deformation and surface burns. Temperature control is required through the following methods:
Grinding Fluid Circulation System: Use a grinding fluid with high cooling capacity (such as emulsion or synthetic grinding fluid) equipped with a refrigeration unit to maintain a temperature of 20-25°C.
Intermittent Grinding: For components prone to heat generation (such as pins), an intermittent grinding process of “grinding-cooling-regrinding” is employed to prevent heat accumulation. (IV) Quality Inspection: The “Last Line of Defense” for Achieving Precision

Online Inspection: Laser diameter gauges, CCD vision inspection systems, and other equipment are installed near the grinding station to conduct real-time inspections of component dimensions and form and position tolerances. Only qualified components can proceed to the next process.

Offline Sampling Inspection: 5%-10% of each batch of products undergoes offline inspection using a coordinate measuring machine (CMM) to check key indicators such as hole tolerance and coaxiality, a roundness tester to check roller roundness, and a surface roughness tester to check surface quality.

Full Inspection Requirements: For high-precision roller chains used in high-end equipment (such as aerospace and precision machine tools), 100% full inspection is required to ensure that every component meets the required precision.

IV. Application Scenarios and Future Trends of High-Precision Roller Chain Grinding Technology

(I) Typical Application Scenarios
High-precision roller chains, with their excellent precision and stability, have been widely used in fields with stringent transmission requirements:

Automotive Industry: Engine timing chains and transmission chains must withstand high speeds (≥6000 rpm) and high-frequency impact, placing extremely high demands on roller roundness and pin straightness;

Smart Logistics: Automated sorting equipment and high-bay warehouse conveyor systems require precise speed control and positioning. Chain plate hole accuracy and roller cylindricity directly impact operational stability;

Precision Machine Tools: CNC machine tools’ spindle drives and feed systems require micron-level motion control. Pin coaxiality and chain plate flatness are crucial for ensuring transmission accuracy.

(II) Future Technology Trends

With the advancement of Industry 4.0 and smart manufacturing, high-precision roller chain grinding processes are developing in the following directions:

Intelligent machining: Introducing AI-powered visual inspection systems to automatically identify component dimensions and surface quality, enabling parameter adjustment and improving machining efficiency and consistency;

Green grinding: Developing environmentally friendly grinding fluids (such as biodegradable grinding fluids) combined with efficient filtration systems to reduce environmental pollution; Simultaneously, adopting low-temperature grinding technology to reduce energy consumption;

Compound grinding: Integrating the grinding processes of rollers, pins, and chain plates into a “one-stop” composite process, using multi-axis CNC grinding machines to reduce positioning errors between processes and further improve overall precision.
