Structural Characteristics of Double-Pitch Roller Chains

In the industrial transmission and conveying sector, double-pitch roller chains, thanks to their adaptability to large center distances and low load loss, have become core components in agricultural machinery, mining conveying, and light industrial equipment. Unlike conventional roller chains, their unique structural design directly determines their stability and efficiency over long distances. This article will provide an in-depth analysis of the structural characteristics of double-pitch roller chains from three perspectives: core structural analysis, design logic, and performance correlations, providing a professional reference for selection, application, and maintenance.

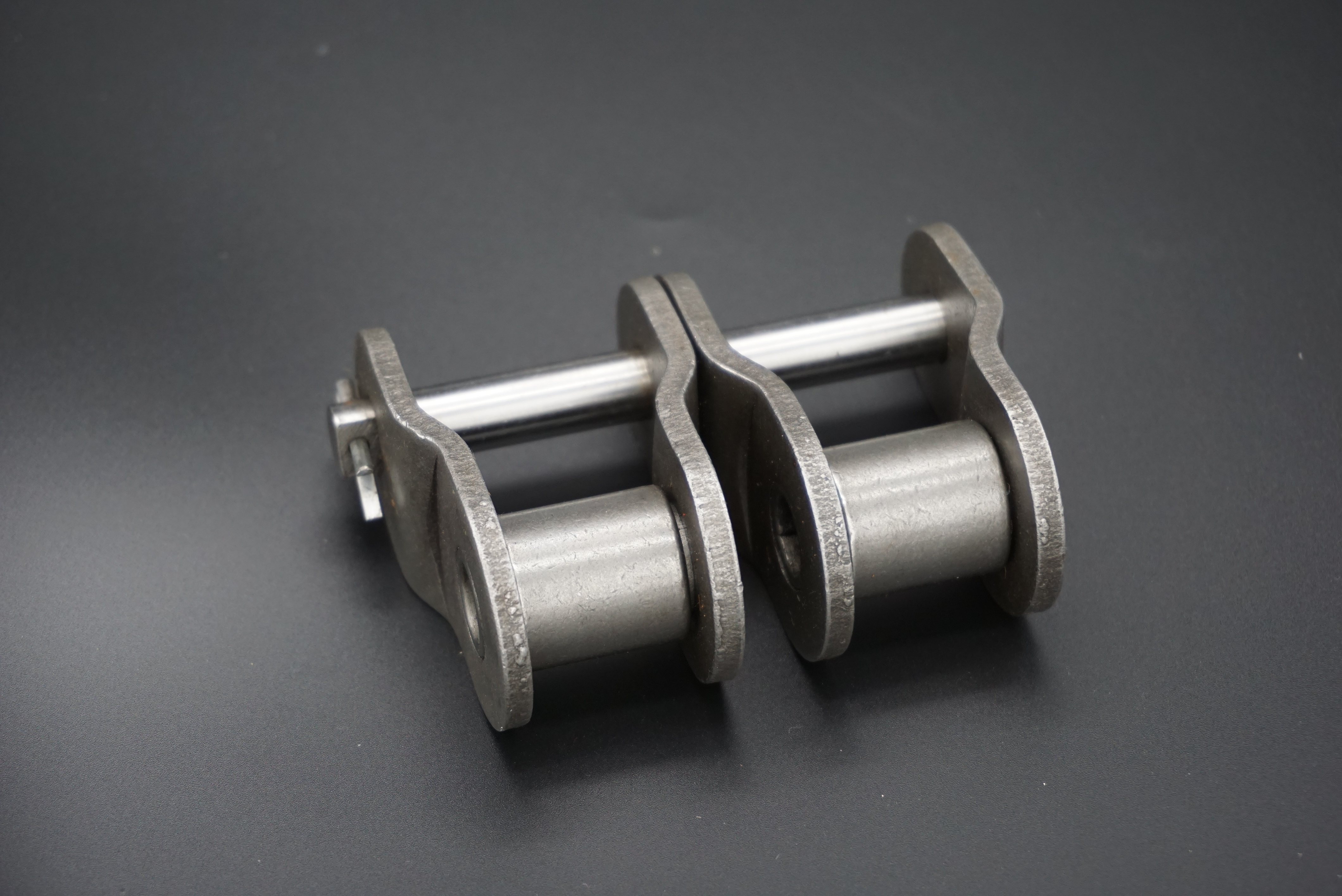

I. Double-Pitch Roller Chain Core Structure Analysis

The “double pitch” of a double-pitch roller chain refers to a chain link center distance (the distance from the center of a pin to the center of the adjacent pin) that is twice that of a conventional roller chain. This fundamental design difference leads to the unique design of the following four core structural components, which together contribute to its functional advantages.

1. Chain Links: A “Longer Pitch + Simplified Assembly” Drive Unit
Pitch Design: Using a pitch twice that of a standard roller chain (e.g., a standard chain pitch of 12.7mm corresponds to a double-pitch chain pitch of 25.4mm). This reduces the total number of chain links for the same transmission length, reducing chain weight and installation complexity.
Assembly: A single drive unit consists of “two outer link plates + two inner link plates + one set of roller bushings,” rather than the “one set of link plates per pitch” typical of conventional chains. This simplifies the component count while improving load-bearing stability per pitch.

2. Rollers and Bushings: A “High-Precision Fit” for Drag Reduction
Roller Material: Mostly made of low-carbon steel (e.g., 10# steel) that undergoes a carburizing and quenching treatment, achieving a surface hardness of HRC58-62 to ensure wear resistance when meshing with the sprocket. Stainless steel or engineering plastics may be used for corrosion resistance in some heavy-load applications. Sleeve Design: The sleeve and roller have a clearance fit (0.01-0.03mm), while the inner hole and pin have an interference fit. This creates a three-layer drag-reducing structure: “pin fixation + sleeve rotation + roller rolling.” This reduces the transmission friction coefficient to 0.02-0.05, significantly lower than sliding friction.

3. Chain Plates: “Wide Width + Thick Material” for Tensile Support
External Design: Both the outer and inner link plates utilize a “wide rectangular” structure, 15%-20% wider than conventional chains of the same specification. This disperses radial pressure during sprocket engagement and prevents wear on the chain plate edges.
Thickness Selection: Depending on the load rating, chain plate thickness is typically 3-8mm (compared to 2-5mm for conventional chains). Made of high-strength carbon steel (such as 40MnB) through quenching and tempering, the chain plates achieve a tensile strength of 800-1200 MPa, meeting the tensile load requirements of long-span transmissions.

4. Pin: The Key to “Thin Diameter + Long Section” Connection
Diameter Design: Due to the longer pitch, the pin diameter is slightly smaller than that of a standard chain of the same specification (e.g., a standard chain pin diameter is 7.94mm, while a double-pitch chain pin diameter is 6.35mm). However, the length is doubled, ensuring stable connection between adjacent links even with larger spans.
Surface Treatment: The pin surface is chrome-plated or phosphated with a thickness of 5-10μm. This coating enhances corrosion resistance and reduces sliding friction with the inner bore of the sleeve, extending fatigue life (typically reaching 1000-2000 hours of transmission life).

II. The Core Connection between Structural Design and Performance: Why is a double-pitch chain suitable for long-span transmissions?

The structural features of a double-pitch roller chain go beyond simply increasing size. Instead, they address the core requirement of “long center-to-center transmission” and achieve the three key performance goals of “reduced weight, reduced drag, and stable load.” The specific linkage logic is as follows:

1. Long pitch design → Reduced chain weight and installation costs
For the same transmission distance, a double-pitch chain has only half the number of links as a conventional chain. For example, for a 10-meter transmission distance, a conventional chain (12.7mm pitch) requires 787 links, while a double-pitch chain (25.4mm pitch) requires only 393 links, reducing total chain weight by approximately 40%.

This reduced weight directly reduces the “overhang load” of the transmission system, especially in vertical or inclined transmission scenarios (such as elevators). This reduces motor load and reduces energy consumption (measured energy savings of 8%-12%).

2. Wide Chainplates + High-Strength Pins → Improved Span Stability
In long-span transmissions (e.g., center distances exceeding 5 meters), chains are prone to sagging due to their own weight. Wide chainplates increase the meshing contact area with the sprocket (30% greater than conventional chains), reducing runout during engagement (runout is controlled to within 0.5mm).
The long pins, combined with an interference fit, prevent chain links from loosening during high-speed transmissions (≤300 rpm), ensuring transmission accuracy (transmission error ≤0.1mm/meter).

3. Three-Layer Drag Reduction Structure → Suitable for Low Speeds and Long Life
Double-pitch chains are primarily used in low-speed transmissions (typically ≤300 rpm, compared to 1000 rpm for conventional chains). The three-layer roller-bushing-pin structure effectively distributes static friction at low speeds, preventing premature component wear. Field test data shows that in agricultural machinery (such as the conveyor chain of a combine harvester), double-pitch chains can have a service life 1.5-2 times that of conventional chains, reducing maintenance frequency.

III. Extended Structural Features: Selection and Maintenance Key Points for Double-Pitch Roller Chains

Based on the above structural features, targeted selection and maintenance are required in actual applications to maximize their performance advantages.

1. Selection: Matching Structural Parameters Based on “Transmission Center Distance + Load Type”
For center distances greater than 5 meters, double-pitch chains are preferred to avoid the complex installation and sagging issues associated with conventional chains due to the excessive number of links.

For light-load conveying (loads less than 500N), thin chain plates (3-4mm) with plastic rollers can be used to reduce costs. For heavy-load transmission (loads greater than 1000N), thick chain plates (6-8mm) with carburized rollers are recommended to ensure tensile strength.

2. Maintenance: Focus on “Friction Areas + Tension” to Extend Life.
Regular Lubrication: Every 50 hours of operation, inject lithium-based grease (Type 2#) into the gap between the roller and bushing to prevent bushing wear caused by dry friction.
Tension Check: Because long pitches are prone to elongation, adjust the tensioner every 100 hours of operation to keep chain sag within 1% of the center distance (e.g., for a 10-meter center distance, sag ≤ 100mm) to prevent decoupling from the sprocket.

Conclusion: Structure Determines Value. The “Long-Span Advantage” of Double-Pitch Roller Chains Comes from Precision Design.
The structural features of double-pitch roller chains precisely address the demand for “long-center-distance transmission”—reducing deadweight through a longer pitch, improving stability through wide link plates and high-strength pins, and extending life through a three-layer drag-reducing structure. Whether it is long-distance transportation of agricultural machinery or low-speed transmission of mining equipment, the deep matching of its structural design and performance makes it an irreplaceable transmission component in the industrial field.
