Roller Chain Weld Defects

Roller Chain Weld Defects

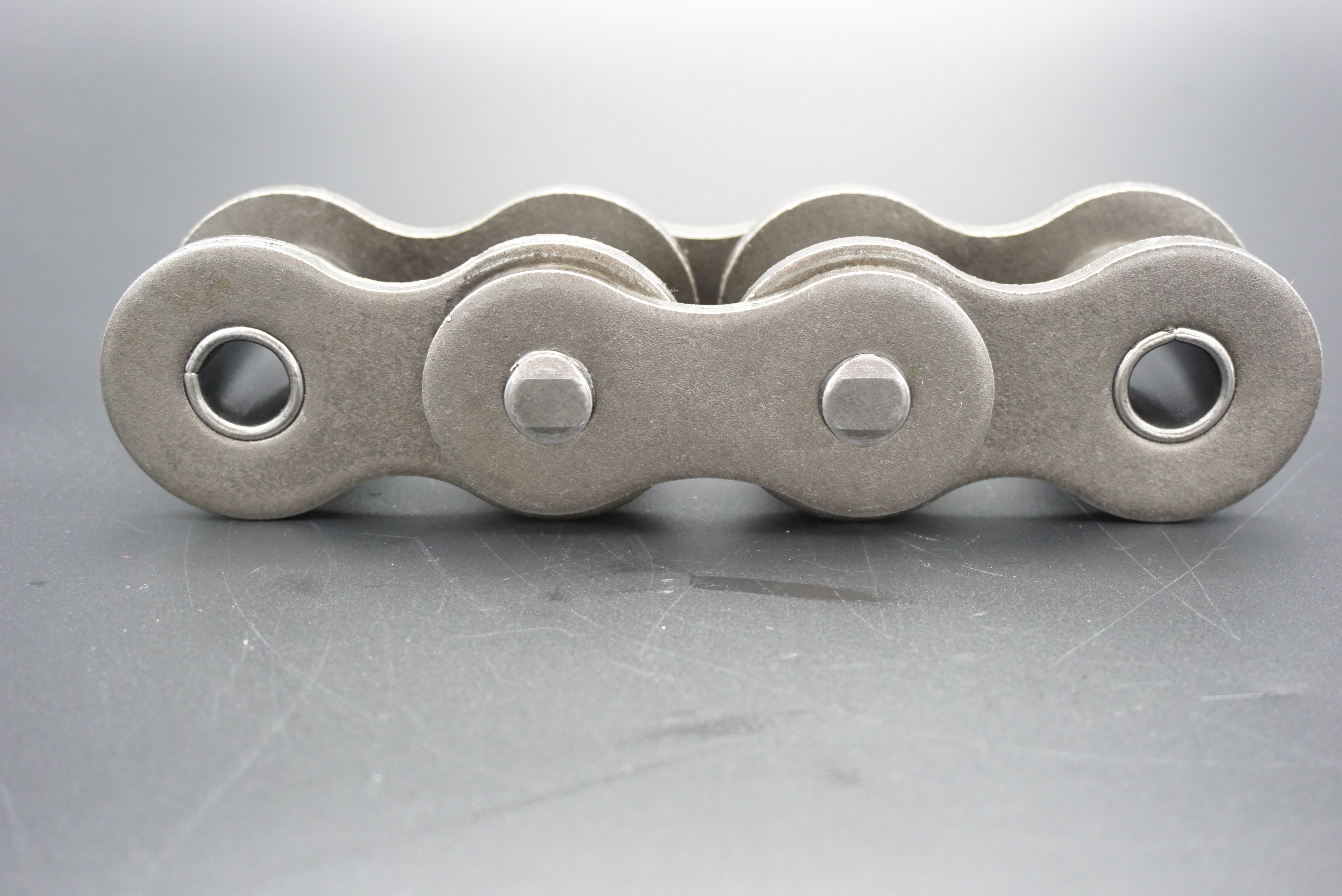

In industrial transmission systems, roller chains, with their high efficiency and strong load-bearing capacity, have become core components in mining, manufacturing, agriculture, and other fields. Welds, as the critical connection between roller chain links, directly determine the chain’s service life and operational safety. For overseas buyers, roller chain weld defects can not only cause equipment downtime and production interruptions, but can also lead to safety accidents and high repair costs. This article will provide an in-depth analysis of the types, causes, detection methods, and prevention strategies of roller chain weld defects, providing a professional reference for foreign trade procurement and manufacturing.

I. Common Types and Dangers of Roller Chain Weld Defects

Roller chain weld connections must withstand the multiple challenges of dynamic loads, friction, and environmental corrosion. Common defects, often hidden beneath a seemingly intact appearance, can become the trigger for chain failure.

(I) Cracks: A Precursor to Chain Breakage
Cracks are one of the most dangerous defects in roller chain welds and can be categorized as hot cracks or cold cracks based on when they develop. Hot cracks often occur during the welding process, caused by rapid cooling of the weld metal and excessive levels of impurities (such as sulfur and phosphorus), leading to brittle fracture at grain boundaries. Cold cracks form hours to days after welding, primarily due to the combined effects of weld residual stress and the hardened structure of the base metal. These defects can dramatically reduce weld strength. In high-speed transmission systems, cracks can rapidly propagate, eventually causing the chain to break, resulting in equipment jams and even casualties.

(II) Porosity: A Hotbed for Corrosion and Fatigue

Porosity in welds is caused by gases (such as hydrogen, nitrogen, and carbon monoxide) entrained during welding that fail to escape in time. Porosity typically manifests as circular or oval holes on the surface or within the weld. Porosity not only reduces weld tightness and can lead to lubricant leakage, but also disrupts metal continuity and increases stress concentration points. In humid and dusty industrial environments, pores become channels for corrosive media to enter, accelerating weld corrosion. Furthermore, under cyclical loads, fatigue cracks easily form at the edges of pores, significantly shortening the roller chain’s service life.

(III) Lack of Penetration/Lack of Fusion: The “Weak Point” of Insufficient Strength
Lack of penetration refers to incomplete fusion at the weld root, while lack of fusion refers to the lack of effective bonding between the weld metal and the base metal or between weld layers. Both types of defects arise from insufficient welding current, excessive welding speed, or substandard groove preparation, resulting in insufficient welding heat and inadequate metal fusion. Roller chains with these defects have weld load capacities of only 30%-60% of those of qualified products. Under heavy loads, weld delamination is highly likely to occur, leading to chain dislocation and production line downtime.

(IV) Slag Inclusion: The “Invisible Killer” of Performance Degradation
Slag inclusions are non-metallic inclusions formed within the weld during welding, where molten slag fails to rise completely to the weld surface. Slag inclusions disrupt the weld metallurgical continuity, reducing its toughness and wear resistance, and acting as a source of stress concentration. Over long-term operation, microcracks are likely to form around the slag inclusions, accelerating weld wear, leading to chain pitch lengthening, affecting transmission accuracy, and even causing poor meshing with the sprocket.

II. Tracing the Root: Analyzing the Core Causes of Roller Chain Weld Defects

Roller chain weld defects are not accidental but the result of multiple factors, including material selection, process control, and equipment condition. Especially in mass production, even slight parameter deviations can lead to widespread quality issues.

(I) Material Factors: The “First Line of Defense” of Source Control

Substandard Base Material Quality: To reduce costs, some manufacturers select steel with excessively high carbon content or impurities as roller chain base material. This type of steel has poor weldability, is prone to cracking and porosity during welding, and lacks sufficient bond strength between the weld and the base material. Poor welding material compatibility: A common problem is the mismatch between the composition of the welding rod or wire and the base material. For example, using ordinary low-carbon steel wire when welding high-strength alloy steel chain can result in a weld with lower strength than the base material, creating a “weak bond.” Moisture in the welding material (e.g., moisture absorbed by the welding rod) can release hydrogen during welding, causing porosity and cold cracking.

(II) Process Factors: The “Key Variables” of the Production Process

Uncontrolled Welding Parameters: Welding current, voltage, and speed are the core parameters that determine weld quality. Too little current results in insufficient heat, which can easily lead to incomplete penetration and lack of fusion. Too much current overheats the base material, causing coarse grains and thermal cracking. Excessive welding speed shortens the cooling time of the weld pool, preventing gases and slag from escaping, resulting in porosity and slag inclusions. Improper groove and cleaning: Too small a groove angle and uneven gaps can reduce weld penetration, resulting in incomplete penetration. Failure to thoroughly clean the groove surface from oil, rust, and scale can generate gas and impurities during welding, leading to porosity and slag inclusions.
Improper welding sequence: In mass production, failure to follow the welding sequence principles of “symmetrical welding” and “stepped-back welding” can lead to high residual stress in the weld chain, which can cause cold cracking and deformation.

(III) Equipment and Environmental Factors: Easily Overlooked “Hidden Impacts”

Inadequate welding equipment accuracy: Older welding machines can produce unstable current and voltage outputs, leading to inconsistent weld formation and increasing the probability of defects. Failure of the welding gun angle adjustment mechanism can affect weld position accuracy, resulting in incomplete fusion.

Environmental interference: Welding in a humid (relative humidity >80%), windy, or dusty environment can cause moisture in the air to enter the weld pool, creating hydrogen pores. Wind can disperse the arc, leading to heat loss. Dust can enter the weld, forming slag inclusions.

III. Accurate Inspection: Professional Detection Methods for Roller Chain Weld Defects

For buyers, accurate weld defect detection is key to mitigating procurement risks; for manufacturers, efficient testing is a core means of ensuring factory quality. The following is an analysis of the application scenarios and advantages of two mainstream inspection methods.

(I) Nondestructive Testing (NDT): “Precise Diagnosis” without Destroying the Product

NDT detects internal and surface defects in welds without damaging the roller chain structure, making it the preferred method for foreign trade quality inspection and batch production sampling.

Ultrasonic Testing (UT): Suitable for detecting internal weld defects such as cracks, incomplete penetration, and slag inclusions. Its detection depth can reach from several millimeters to tens of millimeters, with high resolution, enabling precise location and size of defects. It is particularly suitable for inspecting welds in heavy-duty roller chains, effectively detecting hidden internal defects. Penetrant Testing (PT): Penetrant testing is performed by applying a penetrant to the weld surface, using the capillary effect to reveal surface-opening defects (such as cracks and pores). It is simple to operate and low-cost, making it suitable for inspecting roller chain welds with a high surface finish.
Radiographic Testing (RT): X-rays or gamma rays are used to penetrate the weld, revealing internal defects through film imaging. This method can visually demonstrate the shape and distribution of defects and is often used for comprehensive inspection of critical batches of roller chains. However, this method is costly and requires proper radiation protection.

(II) Destructive Testing: The “Ultimate Test” for Verifying Ultimate Performance

Destructive testing involves mechanical testing of samples. While this method destroys the product, it can directly reveal the actual load-bearing capacity of the weld and is commonly used for type testing during new product development and mass production.

Tensile Testing: Chain link samples containing welds are stretched to measure the tensile strength and fracture location of the weld, directly determining whether the weld has strength deficiencies. Bend Test: By repeatedly bending the weld to observe whether surface cracks appear, the weld’s toughness and ductility are evaluated, effectively detecting hidden microcracks and brittle defects.
Macrometallographic Examination: After polishing and etching the weld cross section, the microstructure is observed under a microscope. This can identify defects such as incomplete penetration, slag inclusions, and coarse grains, and analyze the rationality of the welding process.

IV. Preventive Measures: Prevention and Repair Strategies for Roller Chain Weld Defects

To control roller chain weld defects, it is necessary to adhere to the principle of “prevention first, repair second.” A quality control system should be established that integrates materials, processes, and testing throughout the entire process, while providing buyers with practical advice on selection and acceptance.

(I) Manufacturer: Establishing a Full-Process Quality Control System

Strict Material Selection at the Source: Select high-quality steel that meets international standards (such as ISO 606) as the base material, ensuring that the carbon content and impurity content are within the weldability range. Welding materials must be compatible with the base material and stored in a moisture-proof and rust-proof manner, drying them before use. Optimize welding processes: Based on the base material and chain specifications, determine the optimal welding parameters (current, voltage, and speed) through process testing, and create process cards for strict implementation. Use machined grooves to ensure groove dimensions and surface cleanliness. Promote symmetrical welding processes to reduce residual stress.

Strengthen process inspections: During mass production, sample 5%-10% of each batch for nondestructive testing (preferably a combination of ultrasonic and penetrant testing), with 100% inspection required for critical products. Regularly calibrate welding equipment to ensure stable parameter output. Establish a training and assessment system for welding operators to improve operational standards.

(II) Purchaser’s Side: Risk-Avoiding Selection and Acceptance Techniques

Clear quality standards: Specify in the purchase contract that roller chain welds must comply with international standards (such as ANSI B29.1 or ISO 606), specify the inspection method (e.g., ultrasonic testing for internal defects, penetrant testing for surface defects), and require suppliers to provide quality inspection reports. On-site acceptance key points: Visual inspections should focus on ensuring welds are smooth, free of obvious depressions and protrusions, and free of visible defects such as cracks and pores. Samples can be randomly selected for simple bend tests to observe weld anomalies. For chains used in critical equipment, it is recommended to entrust a third-party testing agency with non-destructive testing.

Choosing a reliable supplier: Prioritize suppliers certified to the ISO 9001 quality management system. Investigate the advanced production equipment and testing capabilities. If necessary, conduct an on-site factory audit to confirm the integrity of their welding processes and quality control procedures.

(III) Defect Repair: Emergency Response Plans to Reduce Losses

For minor defects discovered during inspection, targeted repair measures can be implemented, but it is important to note that re-inspection is required after repair:

Porosity and slag inclusions: For shallow surface defects, use an angle grinder to remove the defective area before repairing the weld. Deeper internal defects require ultrasonic locating and removal before repairing the weld. Minor lack of fusion: The groove needs to be widened, and scale and impurities removed from the lack of fusion area. Repair welding should then be performed using appropriate welding parameters. Tensile testing is required to verify strength after repair welding.
Cracks: Cracks are more difficult to repair. Minor surface cracks can be removed by grinding and then repaired by welding. If the crack depth exceeds 1/3 of the weld thickness or a through-crack is present, it is recommended that the weld be scrapped immediately to avoid safety hazards after repair.
