Roller Chain Tempering Process: A Core Component Determining Transmission Reliability

Roller Chain Tempering Process: A Core Component Determining Transmission Reliability

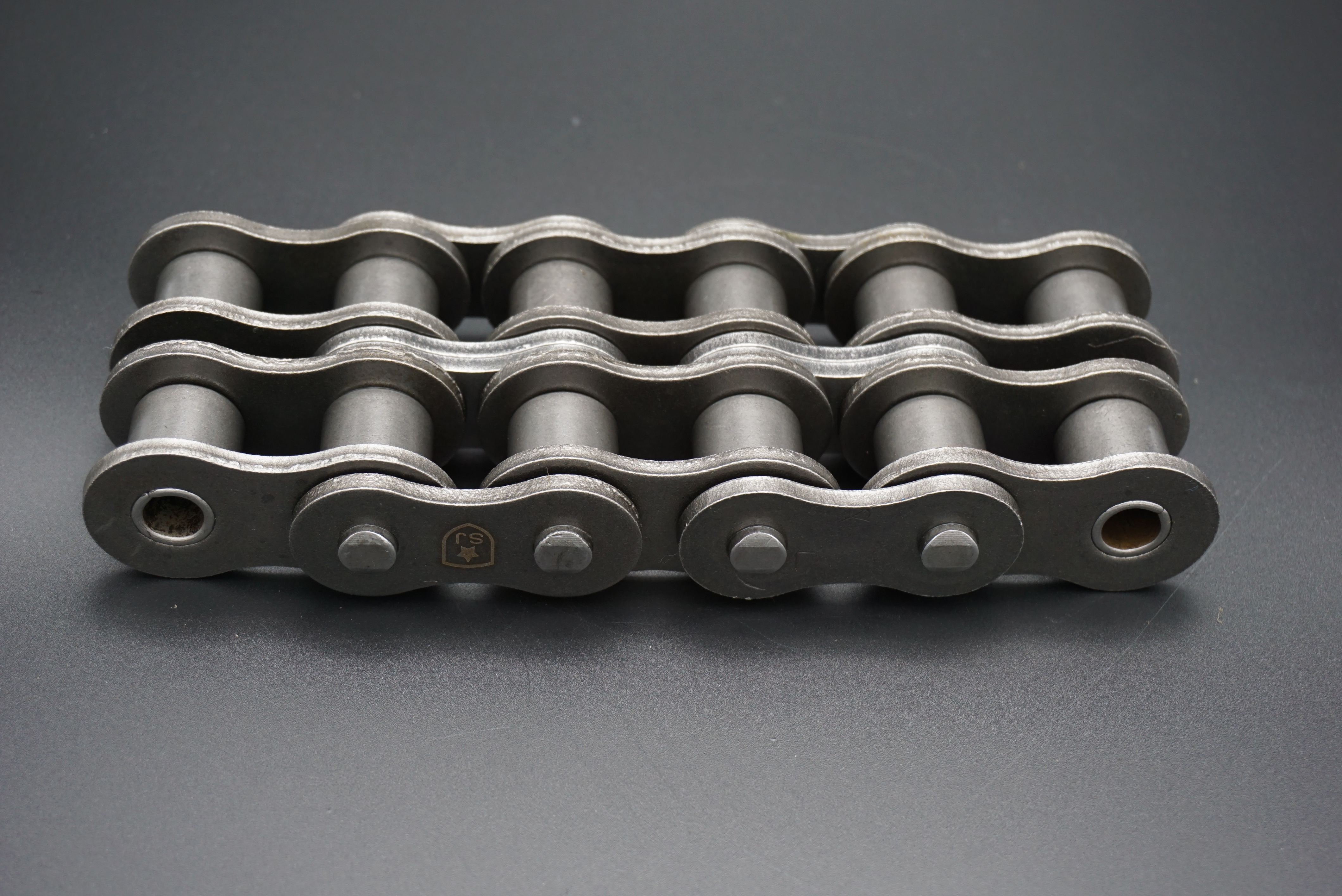

In the industrial transmission sector, roller chains are key components for transmitting power and motion, and their performance directly impacts the operating efficiency and safety of the entire machinery. From heavy-duty transmission in mining machinery to precise driving of precision machine tools, from field operations in agricultural machinery to power transmission in automobile engines, roller chains consistently play the role of a “power bridge.” In roller chain manufacturing, tempering, a core step in the heat treatment process, is like the crucial step that “turns stone into gold,” directly determining the chain’s strength, toughness, wear resistance, and service life.

1. Why is tempering a “compulsory course” in roller chain manufacturing?

Before discussing the tempering process, we first need to clarify: Why is roller chain tempering essential? This begins with the processing of the chain’s core components: rollers, bushings, pins, and link plates. After forming, key roller chain components typically undergo a quenching process: the workpiece is heated above the critical temperature (typically 820-860°C), held at that temperature for a period of time, and then rapidly cooled (e.g., in water or oil) to transform the metal’s internal structure into martensite. While quenching significantly increases the hardness of the workpiece (reaching HRC 58-62), it also presents a critical drawback: extremely high internal stresses and brittleness, making it susceptible to fracture under shock or vibration. Imagine using a quenched roller chain directly for transmission. Failures such as pin breakage and roller cracking could occur during the initial load, with disastrous consequences.

The tempering process addresses the “hard but brittle” issue after quenching. The quenched workpiece is reheated to a temperature below the critical temperature (typically 150-350°C), held at that temperature for a period of time, and then slowly cooled. This process adjusts the metal’s internal structure to achieve the optimal balance between hardness and toughness. For roller chains, tempering plays a key role in three key areas:

Relieve internal stress: Releases structural and thermal stresses generated during quenching, preventing deformation and cracking in the workpiece due to stress concentration during use;

Optimize mechanical properties: Adjust the ratio of hardness, strength, and toughness based on the application requirements—for example, chains for construction machinery require higher toughness, while precision transmission chains require higher hardness;

Stabilize microstructure and dimensions: Stabilize the metal’s internal microstructure to prevent dimensional deformation of the chain caused by microstructure changes during use, which could affect transmission accuracy.

II. Core Parameters and Control Points of the Roller Chain Tempering Process

The effectiveness of the tempering process depends on the precise control of three core parameters: temperature, time, and cooling rate. Different parameter combinations can produce significantly different performance results. The tempering process needs to be tailored to the different components of the roller chain (rollers, bushings, pins, and plates) due to their varying load characteristics and performance requirements.

1. Tempering Temperature: The “Core Knob” for Performance Control
Tempering temperature is the most critical factor in determining the final performance of a workpiece. As the temperature increases, the workpiece’s hardness decreases and its toughness increases. Depending on the roller chain application, tempering temperatures are generally categorized as follows:
Low-temperature tempering (150-250°C): Primarily used for components requiring high hardness and wear resistance, such as rollers and bushings. Low-temperature tempering maintains a workpiece hardness of HRC 55-60 while eliminating some internal stress, making it suitable for high-frequency, low-impact transmission applications (such as machine tool spindle drives).
Medium-temperature tempering (300-450°C): Suitable for components requiring high strength and elasticity, such as pins and chain plates. After medium-temperature tempering, the workpiece hardness drops to HRC 35-45, significantly improving its yield strength and elastic limit, enabling it to withstand heavy impact loads (e.g., in construction machinery and mining equipment).
High-temperature tempering (500-650°C): Rarely used for core roller chain components, it is only used in specialized applications for auxiliary components requiring high toughness. At this temperature, the hardness is further reduced (HRC 25-35), but impact toughness is significantly improved.
Key Control Points: Temperature uniformity within the tempering furnace is crucial, with temperature differences controlled within ±5°C. Uneven temperatures can lead to significant performance variations within the same batch of workpieces. For example, excessively high localized temperatures on rollers can create “soft spots,” reducing wear resistance. Excessively low temperatures can incompletely eliminate internal stresses, leading to cracking.

2. Tempering Time: A “Sufficient Condition” for Microstructural Transformation
The tempering time must ensure sufficient microstructural transformation within the workpiece while avoiding performance degradation caused by overtempering. Too short a time prevents complete internal stress release, resulting in incomplete microstructural transformation and insufficient toughness. Too long a time increases production costs and may also lead to an excessive reduction in hardness. The tempering time for roller chain components is generally determined by the workpiece thickness and furnace load:
Thin-walled components (such as chain plates, 3-8mm thick): Tempering time is generally 1-2 hours;
Thick-walled components (such as rollers and pins, 10-30mm diameter): Tempering time should be extended to 2-4 hours;
For larger furnace loads, the tempering time should be increased by 10%-20% to ensure even heat transfer to the core of the workpiece.
Key Control Points: Using a “step temperature ramp” method can optimize tempering efficiency—first raise the furnace temperature to 80% of the target temperature, hold for 30 minutes, and then raise it to the target temperature to avoid new thermal stresses in the workpiece due to rapid temperature increases.

3. Cooling Rate: The “Last Line of Defense” for Stable Performance
The cooling rate after tempering has a relatively small impact on workpiece performance, but it still needs to be properly controlled. Air cooling (natural cooling) or furnace cooling (furnace cooling) is typically used:

After low-temperature tempering, air cooling is generally used to quickly reduce the temperature to room temperature and avoid prolonged exposure to medium temperatures, which can lead to hardness loss.

If higher toughness is required after medium-temperature tempering, furnace cooling can be used. The slow cooling process further refines the grain size and improves impact resistance.

Key Control Points: During the cooling process, it is important to avoid uneven contact between the workpiece surface and air, which can lead to oxidation or decarburization. Protective gases such as nitrogen can be introduced into the tempering furnace, or anti-oxidation coatings can be applied to the workpiece surface to ensure surface quality.

III. Common Roller Chain Tempering Problems and Solutions

Even if the core parameters are understood, tempering quality issues can still occur in actual production due to factors such as equipment, operation, or materials. The following are the four most common problems encountered during roller chain tempering and their corresponding solutions:

1. Insufficient or Uneven Hardness

Symptoms: The workpiece hardness is lower than the design requirement (e.g., the roller hardness does not reach HRC 55), or the hardness difference between different parts of the same workpiece exceeds HRC 3. Causes:
Tempering temperature is too high or holding time is too long;
Tempering furnace temperature distribution is uneven;
Workpiece cooling rate after quenching is insufficient, resulting in incomplete martensite formation.
Solutions:
Calibrate the tempering furnace thermocouple, regularly monitor the temperature distribution within the furnace, and replace aging heating tubes;
Strictly control temperature and time according to the process sheet and employ staged holding;
Optimize the quenching and cooling process to ensure rapid and uniform cooling of the workpiece.

2. Internal stress is not eliminated, leading to cracking during use
Symptoms: During the initial installation and use of the chain, the pin or chain plate may break without warning, with a brittle fracture.
Causes:
Tempering temperature is too low or holding time is too short, resulting in inadequate release of internal stress;
Workpiece is not tempered promptly after quenching (for more than 24 hours), leading to internal stress accumulation. Solution:
Appropriately increase the tempering temperature based on the workpiece thickness (e.g., from 300°C to 320°C for pins) and extend the holding time.
After quenching, the workpiece must be tempered within 4 hours to avoid prolonged stress accumulation.
Use a “secondary tempering” process for key components (after initial tempering, cool to room temperature and then temper again at elevated temperatures) to further eliminate residual stress.

3. Surface Oxidation and Decarburization

Symptoms: A gray-black oxide scale appears on the workpiece surface, or a hardness tester indicates that the surface hardness is lower than the core hardness (the decarburization layer is more than 0.1mm thick).
Cause:
Excessive air content in the tempering furnace causes a reaction between the workpiece and oxygen.
Excessive tempering time causes carbon to diffuse and dissipate from the surface. Solution: Use a sealed tempering furnace with a nitrogen or hydrogen protective atmosphere to control the oxygen content in the furnace to below 0.5%. Reduce unnecessary tempering time and optimize the furnace loading method to avoid over-packing of workpieces. For workpieces that have slightly oxidized, perform shot blasting after tempering to remove surface scale.

4. Dimensional Deformation

Symptoms: Excessive roller ovality (exceeding 0.05mm) or misaligned chain plate holes.

Cause: Excessively rapid tempering heating or cooling rates generate thermal stress that leads to deformation.

Improper placement of workpieces during furnace loading results in uneven stress.

Solution: Use slow heating (50°C/hour) and slow cooling to reduce thermal stress.

Design specialized fixtures to ensure the workpiece remains free during tempering to avoid compression deformation.

For high-precision parts, add a straightening step after tempering, using pressure straightening or heat treatment to correct dimensions.

IV. Tempering Process Quality Inspection and Acceptance Criteria

To ensure that roller chain components meet performance requirements after tempering, a comprehensive quality inspection system must be established, conducting comprehensive inspections across four dimensions: appearance, hardness, mechanical properties, and microstructure.

1. Appearance Inspection

Inspection Content: Surface defects such as scale, cracks, and dents.

Inspection Method: Visual inspection or inspection with a magnifying glass (10x magnification).

Acceptance Criteria: No visible scale, cracks, or burrs on the surface, and uniform color.

2. Hardness Inspection

Inspection Content: Surface hardness and hardness uniformity.

Inspection Method: Use a Rockwell hardness tester (HRC) to test the surface hardness of rollers and pins. 5% of the workpieces from each batch are randomly sampled, and three different locations on each workpiece are inspected.

Acceptance Criteria:

Rollers and bushings: HRC 55-60, with a hardness difference of ≤ HRC3 within the same batch.

Pin and chain plate: HRC 35-45, with a hardness difference of ≤ HRC2 within the same batch. 3. Mechanical Properties Testing

Test Content: Tensile strength, impact toughness;

Test Method: Standard specimens are prepared from one batch of workpieces each quarter for tensile testing (GB/T 228.1) and impact testing (GB/T 229);

Acceptance Criteria:

Tensile Strength: Pins ≥ 800 MPa, Chains ≥ 600 MPa;

Impact Toughness: Pins ≥ 30 J/cm², Chains ≥ 25 J/cm².

4. Microstructure Testing

Test Content: Internal structure is uniform tempered martensite and tempered bainite;

Test Method: Cross-sections of the workpiece are cut, polished, and etched, and then observed using a metallographic microscope (400x magnification);

Acceptance Criteria: Uniform structure with no network carbides or coarse grains, and a decarburized layer thickness ≤ 0.05 mm.

V. Industry Trends: The Development Direction of Intelligent Tempering Processes

With the widespread adoption of Industry 4.0 technologies, roller chain tempering processes are developing towards intelligent, precise, and green processes. The following are three key trends worth noting:

1. Intelligent Temperature Control System

Utilizing Internet of Things (IoT) technology, multiple sets of high-precision thermocouples and infrared temperature sensors are placed within the tempering furnace to collect real-time temperature data. Using AI algorithms, heating power is automatically adjusted to achieve temperature control accuracy within ±2°C. Furthermore, the system records the tempering curve for each batch of workpieces, creating a traceable quality record.

2. Digital Process Simulation

Using finite element analysis software (such as ANSYS), the temperature and stress fields of the workpiece during tempering are simulated to predict potential deformation and uneven performance, thereby optimizing process parameters. For example, simulation can determine the optimal tempering time for a specific roller model, increasing efficiency by 30% compared to traditional trial-and-error methods.​
3. Green and Energy-Saving Processes

Developing low-temperature, short-time tempering technology reduces tempering temperature and energy consumption by adding a catalyst. Implementing a waste heat recovery system to recycle the heat from the high-temperature flue gas discharged from the tempering furnace for preheating workpieces, achieving energy savings of over 20%. Furthermore, promoting the use of water-soluble anti-oxidation coatings as an alternative to traditional oil-based coatings reduces VOC emissions.
