Precision Rollers: Common Heat Treatment Methods for Lifting Chains

Precision Rollers: Common Heat Treatment Methods for Lifting Chains

In the lifting machinery industry, chain reliability is directly related to personnel safety and operational efficiency, and heat treatment processes are crucial for determining the core performance of lifting chains, including strength, toughness, and wear resistance. As the “skeleton” of the chain, precision rollers, along with components like chain plates and pins, require proper heat treatment to maintain stable performance under demanding conditions such as heavy lifting and frequent operation. This article will provide an in-depth analysis of commonly used heat treatment methods for lifting chains, exploring their process principles, performance advantages, and applicable scenarios, providing industry practitioners with a reference for selection and application.

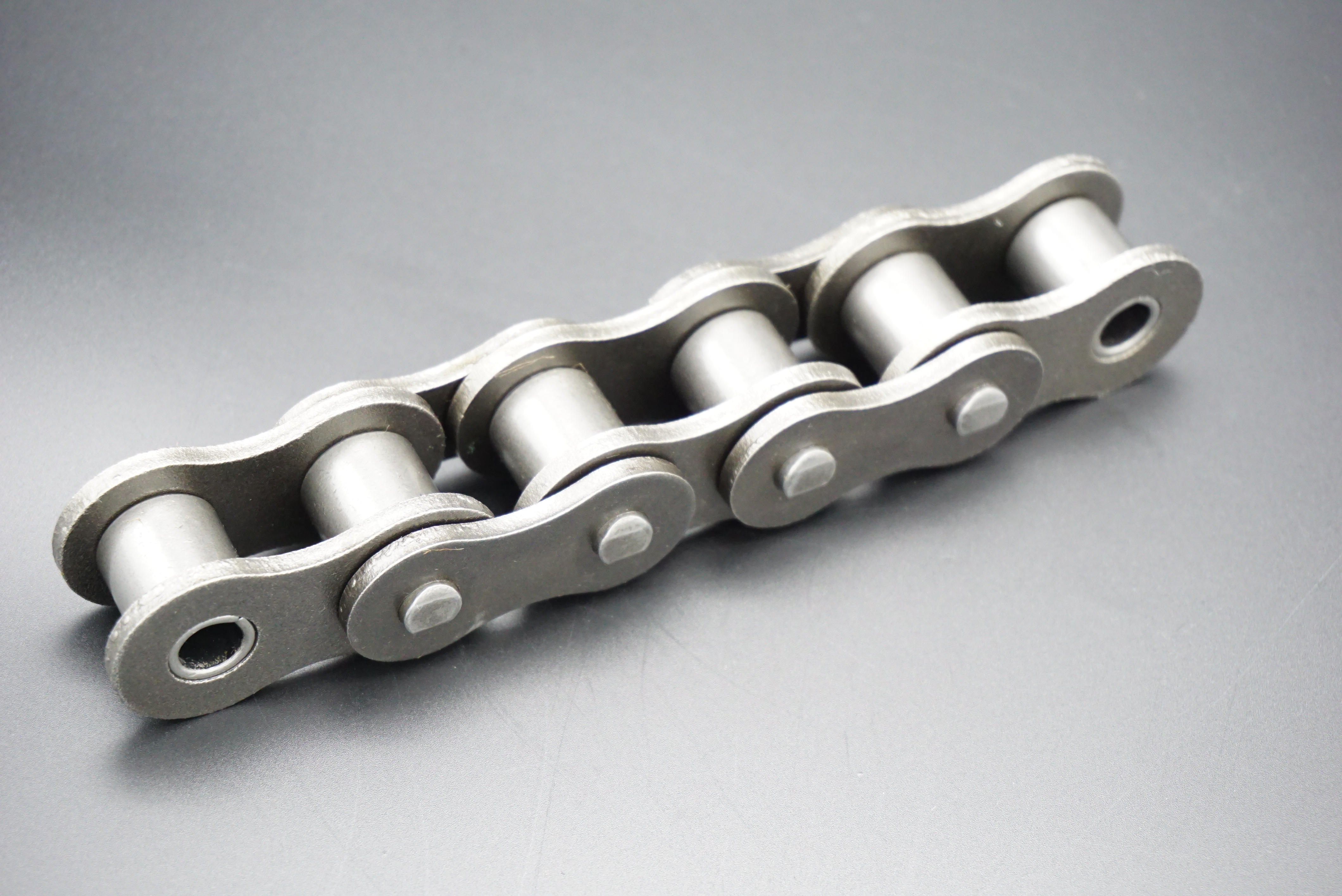

1. Heat Treatment: The “Shaper” of Lifting Chain Performance
Lifting chains are often manufactured from high-quality alloy structural steels (such as 20Mn2, 23MnNiMoCr54, etc.), and heat treatment is crucial to optimize the mechanical properties of these raw materials. Chain components that haven’t been heat-treated have low hardness and poor wear resistance, and are prone to plastic deformation or fracture when subjected to stress. Scientifically engineered heat treatment, by controlling the heating, holding, and cooling processes, alters the material’s internal microstructure, achieving a “strength-toughness balance”—high strength to withstand tensile and impact stresses, yet sufficient toughness to avoid brittle fracture, while also improving surface wear and corrosion resistance.

For precision rollers, heat treatment demands even higher precision: as key components in the meshing of chain and sprocket, rollers must ensure a precise match between surface hardness and core toughness. Otherwise, premature wear and cracking are likely to occur, compromising the transmission stability of the entire chain. Therefore, selecting the appropriate heat treatment process is a prerequisite for ensuring safe load-bearing and long-lasting service for lifting chains.

II. Analysis of the Five Common Heat Treatment Methods for Lifting Chains

(I) Overall Quenching + High-Tempering (Quenching and Tempering): The “Gold Standard” for Basic Performance

Process Principle: Chain components (link plates, pins, rollers, etc.) are heated to a temperature above Ac3 (hypoeutectoid steel) or Ac1 (hypereutectoid steel). After holding the temperature for a period of time to fully austenitize the material, the chain is quickly quenched in a cooling medium such as water or oil to obtain a high-hardness but brittle martensite structure. The chain is then reheated to 500-650°C for high-temperature tempering, which decomposes the martensite into a uniform sorbite structure, ultimately achieving a balance of “high strength + high toughness.”

Performance Advantages: After quenching and tempering, chain components exhibit excellent overall mechanical properties, with a tensile strength of 800-1200 MPa and a well-balanced yield strength and elongation, capable of withstanding the dynamic and impact loads encountered in lifting operations. Furthermore, the uniformity of the sorbite structure ensures excellent component processing performance, facilitating subsequent precision forming (such as roller rolling).

Applications: Widely used to optimize the overall performance of medium- and high-strength lifting chains (such as Grade 80 and Grade 100 chains), particularly for key load-bearing components such as chain plates and pins. This is the most fundamental and core heat treatment process for lifting chains. (II) Carburizing and Quenching + Low-Tempering: A “Reinforced Shield” for Surface Wear Resistance

Process Principle: Chain components (focusing on meshing and friction components such as rollers and pins) are placed in a carburizing medium (such as natural gas or kerosene cracking gas) and held at 900-950°C for several hours, allowing carbon atoms to penetrate the component surface (the carburized layer depth is typically 0.8-2.0mm). This is followed by quenching (usually using oil as the cooling medium), which forms a high-hardness martensite structure on the surface while retaining a relatively tough pearlite or sorbite structure in the core. Finally, low-temperature tempering at 150-200°C eliminates quenching stresses and stabilizes the surface hardness. Performance Advantages: Components after carburizing and quenching exhibit a gradient performance characteristic of “hard outside, tough inside”—the surface hardness can reach HRC58-62, significantly improving wear resistance and seizure resistance, effectively combating friction and wear during sprocket meshing. The core hardness remains at HRC30-45, providing sufficient toughness to prevent component breakage under impact loads.

Applications: For high-wear precision rollers and pins in lifting chains, particularly those subject to frequent starts and stops and heavy-load meshing (e.g., chains for port cranes and mine hoists). For example, the rollers of 120-grade high-strength lifting chains are commonly carburized and quenched, extending their service life by over 30% compared to conventional heat treatment. (III) Induction Hardening + Low-Tempering: Efficient and Precise “Local Strengthening”

Process Principle: Using an alternating magnetic field generated by a high-frequency or medium-frequency induction coil, specific areas of chain components (such as the outer diameter of rollers and pin surfaces) are locally heated. Heating is rapid (typically a few seconds to tens of seconds), allowing only the surface to quickly reach the austenitizing temperature, while the core temperature remains largely unchanged. Cooling water is then injected for rapid quenching, followed by low-temperature tempering. This process allows precise control of the heated area and the hardened layer depth (typically 0.3-1.5mm).

Performance Advantages: ① High Efficiency and Energy Saving: Localized heating avoids the energy waste of overall heating, increasing production efficiency by over 50% compared to overall quenching. ② Low Deformation: Short heating times minimize component thermal deformation, eliminating the need for extensive subsequent straightening, making it particularly suitable for dimensional control of precision rollers. ③ Controllable Performance: By adjusting the induction frequency and heating time, the hardened layer depth and hardness distribution can be flexibly adjusted.​
Applications: Suitable for local strengthening of mass-produced precision rollers, short pins, and other components, particularly for lifting chains requiring high dimensional accuracy (such as precision transmission lifting chains). Induction hardening can also be used for chain repair and refurbishment, re-strengthening worn surfaces.

(IV) Austempering: “Impact Protection” Prioritizing Toughness

Process Principle: After heating the chain component to the austenitizing temperature, it is quickly placed in a salt or alkaline bath slightly above the M s point (the martensitic transformation start temperature). The bath is held for a period of time to allow the austenite to transform into bainite, followed by air cooling. Bainite, a structure intermediate between martensite and pearlite, combines high strength with excellent toughness.

Performance Advantages: Austempered components exhibit significantly greater toughness than conventional quenched and tempered parts, achieving impact absorption energy of 60-100 J, capable of withstanding severe impact loads without fracture. Furthermore, the hardness can reach HRC 40-50, meeting the strength requirements for medium and heavy-duty lifting applications, while minimizing quenching distortion and reducing internal stresses. Applicable Applications: Primarily used for lifting chain components subject to heavy impact loads, such as those frequently used to lift irregularly shaped objects in mining and construction industries, or for lifting chains used in low-temperature environments (such as cold storage and polar operations). Bainite possesses far superior toughness and stability to martensite at low temperatures, minimizing the risk of low-temperature brittle fracture.

(V) Nitriding: A “Long-Lasting Coating” for Corrosion and Wear Resistance
Process Principle: Chain components are placed in a nitrogen-containing medium, such as ammonia, at 500-580°C for 10-50 hours. This allows nitrogen atoms to penetrate the component surface, forming a nitride layer (primarily composed of Fe₄N and Fe₂N). Nitriding does not require subsequent quenching and is a “low-temperature chemical heat treatment” with minimal impact on the overall performance of the component. Performance Advantages: ① High surface hardness (HV800-1200) provides superior wear resistance compared to carburized and quenched steel, while also offering a low friction coefficient, reducing energy loss during meshing. ② The dense nitrided layer offers excellent corrosion resistance, reducing the risk of rust in humid and dusty environments. ③ Low processing temperature minimizes component deformation, making it suitable for pre-formed precision rollers or assembled small chains.

Applications: Suitable for lifting chains requiring both wear and corrosion resistance, such as those used in the food processing industry (clean environments) and marine engineering (high salt spray environments), or for small lifting equipment requiring “maintenance-free” chains.

III. Heat Treatment Process Selection: Matching the Operating Conditions is Key

When selecting a heat treatment method for a lifting chain, consider three key factors: load rating, operating environment, and component function. Avoid blindly pursuing high strength or excessive cost savings:

Select by load rating: Light-load chains (≤ Grade 50) can undergo full quenching and tempering. Medium- and heavy-load chains (80-100) require a combination of carburizing and quenching to strengthen vulnerable parts. Heavy-load chains (above Grade 120) require a combined quenching and tempering process, or induction hardening to ensure precision.

Select by operating environment: Nitriding is preferred for humid and corrosive environments; austempering is preferred for applications with high impact loads. Frequent meshing applications prioritize carburizing or induction hardening of rollers. Select components based on their function: Chain plates and pins prioritize strength and toughness, prioritizing quenching and tempering. Rollers prioritize wear resistance and toughness, prioritizing carburizing or induction hardening. Auxiliary components such as bushings can utilize low-cost, integrated quenching and tempering.

IV. Conclusion: Heat Treatment is the “Invisible Line of Defense” for Chain Safety
The heat treatment process for lifting chains is not a single technique; rather, it is a systematic approach that integrates material properties, component functions, and operating requirements. From the carburizing and quenching of precision rollers to the quenching and tempering of chain plates, precision control in each process directly determines the safety of the chain during lifting operations. In the future, with the widespread adoption of intelligent heat treatment equipment (such as fully automated carburizing lines and online hardness testing systems), the performance and stability of lifting chains will be further enhanced, providing a more reliable guarantee for the safe operation of special equipment.
