Key Parameter Confirmation for Roller Chain Procurement

Key Parameter Confirmation for Roller Chain Procurement

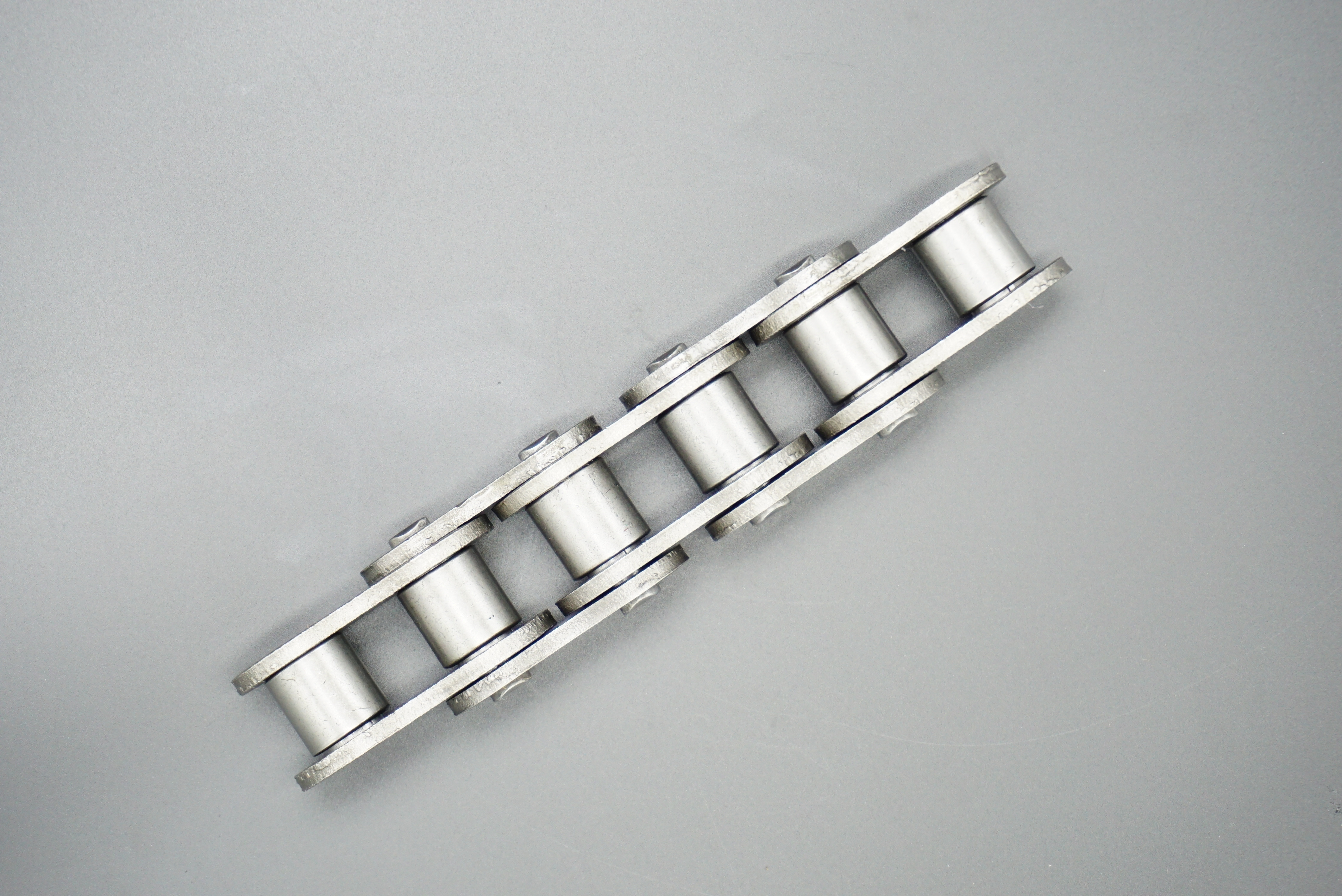

For buyers, accurately confirming procurement parameters is crucial to avoiding cost waste and ensuring production compatibility. Incorrect parameters can lead to chain incompatibility with equipment, potentially causing downtime losses, transportation returns, and other additional costs. This article systematically breaks down the six key parameters for roller chain procurement, combining international standards with practical scenarios to quickly and accurately identify requirements.

I. Core Foundation: Chain Number Confirmation

The chain number is the “identity identifier” of the roller chain, directly corresponding to international standards and core dimensions, and is the primary basis for procurement. Currently, there are three main global standards; it is necessary to first clarify the standard system of the target market or equipment compatibility during procurement.

Main Standard Systems:

ANSI Standard (United States): Begins with “#”, such as #40, #50, #60, commonly used in North America and Southeast Asia markets.

ISO Standard (International): Identified by “08A, 10A, 12A,” etc., corresponding to ANSI standard dimensions (e.g., 08A ≈ #40), universally applicable.

DIN Standard (Germany): Represented by “RS40, RS50,” dimensions are consistent with ANSI, primarily used in the European market.

Purchasing Tips: If only the equipment model is known at the time of purchase, provide the equipment brand (e.g., Siemens, Mitsubishi) and application (e.g., conveyor line, agricultural machinery), and the supplier can assist in matching the corresponding chain number; if an old chain is available, providing the old chain number directly is the most accurate method.

II. Core of Transmission: Pitch Confirmation
Pitch is the distance between the centers of two adjacent pins of a roller chain, determining the chain’s transmission capacity, speed, and sprocket compatibility; it is a crucial parameter that cannot be mismatched.

Importance: The smaller the pitch, the smoother the chain operation and the lower the noise, suitable for high-speed, light-load scenarios (e.g., food conveying); the larger the pitch, the stronger the load-bearing capacity, suitable for heavy-load scenarios (e.g., mining machinery).

Confirmation Method:

Direct Measurement: Measure the center distance of three adjacent pins on the old chain using calipers, then divide by 2 to reduce single measurement error.

Corresponding Chain Number: Known chain numbers directly correspond to the pitch (e.g., #40 corresponds to a pitch of 12.7mm, 08A corresponds to a pitch of 12.7mm).

Purchasing Tip: If sprockets are also involved, ensure that the chain pitch and sprocket pitch are completely consistent; otherwise, it will cause meshing problems and accelerated wear.

III. Installation and Adaptation: Chain Length Confirmation
The chain length needs to be calculated based on the center distance of the equipment (distance between the centers of the two sprockets) and the number of sprocket teeth. Chains that are too long or too short will affect transmission efficiency and may even cause equipment malfunction.

Calculation Logic: The commonly used formula is “Number of Chain Links = 2 × Center Distance ÷ Pitch + (Number of Teeth on Driving Pulley + Number of Teeth on Driven Pulley) ÷ 2 + Pitch ÷ (4 × Center Distance)”. The calculation result must be rounded to the nearest integer (the chain is measured in “links” as the smallest unit). Confirmation Method:
**Provide Equipment Parameters:** Directly inform the supplier of the center distance and number of teeth of the two sprockets. The supplier will then calculate the required number of links.

**Existing Chain Reference:** If replacing an old chain, directly count the total number of links on the old chain (excluding worn or broken links).

**Purchasing Tips:** If the center distance is adjustable, it is recommended to allow 1-2 links for fine-tuning during installation. If the center distance is fixed, the number of links must be calculated accurately to avoid installation failure due to length deviations.

IV. Durability Key: Material & Heat Treatment Confirmation
The material and heat treatment determine the tensile strength, wear resistance, and corrosion resistance of the roller chain. Selection must be based on the operating environment and load requirements.

Common Materials and Applicable Scenarios:

Material Type | Tensile Strength | Corrosion Resistance | Applicable Scenarios

Low Carbon Steel (e.g., 10#) | Lower | Poor | Light load, non-corrosive temporary transmission

Medium Carbon Steel (e.g., 40Mn) | Medium | General | Conventional industrial transmission (e.g., assembly lines)

Alloy Steel (e.g., 20CrMnTi) | High | General | Heavy load, high speed scenarios (e.g., agricultural machinery)

Stainless Steel (e.g., 304) | Medium | Excellent | Food, chemical, humid environments

Heat Treatment Processes:

Carburizing and Quenching: Improves the surface hardness of pins and rollers, enhancing wear resistance; the mainstream process for industrial-grade chains.

Integral Quenching: Suitable for heavy-duty chains, improving overall strength, but toughness will slightly decrease.

Purchasing Tips: If used in the food or pharmaceutical industry, specify “food-grade stainless steel” and “oil-free lubrication” to avoid material contamination; if used in high-temperature environments (e.g., baking equipment), select high-temperature resistant materials (e.g., 316 stainless steel).

V. Precision Assurance: Pin and Roller Tolerance Confirmation

The dimensional tolerances of the pins and rollers directly affect the smoothness and lifespan of the chain. Excessive tolerance can easily lead to chain jamming and skipping, especially significant for high-speed transmission equipment.

Key Tolerance Indicators:
* Pin Diameter Tolerance: Typically requires ±0.02mm. Excessive deviation can cause loosening with the bushing.
* Roller Outer Diameter Tolerance: Generally ±0.05mm. Too large or too small a tolerance will affect the fit with the sprocket teeth.

Purchasing Tips: Before bulk purchasing, request samples from the supplier and measure key dimensions with a micrometer to confirm they meet the precision requirements of your equipment. If used for precision transmission (such as automated equipment), the tolerance grade (e.g., ISO 4, 5) must be clearly specified.

VI. Scenario Adaptability: Accessories & Special Requirements

In addition to basic parameters, accessories and special treatments need to be confirmed according to the specific usage scenario, directly affecting the chain’s installation efficiency and adaptability.

Common Attachment Types:
* **Attachment:** Available in models A1, A2, K1, K2, etc., used for conveying materials (e.g., scraper conveyor chains).

* **Stopper Pin:** Prevents the chain from slipping during vertical transmission; suitable for lifting equipment.

* **Connecting Link:** Available in cotter pin and spring clip types; used for connecting the beginning and end of the chain; must match the chain number.

Special Requirements:
* **Surface Treatment:** Galvanized (for mild corrosion), chrome-plated (for enhanced wear resistance), powder-coated (for scratch resistance).

* **Lubrication Method:** Pre-lubricated (oiled before leaving the factory, ready to use), oil-free lubrication (suitable for clean environments).

* **Packaging Requirements:** Export packaging materials (e.g., waterproof corrugated cardboard, wooden crates) and markings (e.g., CE, FDA certification marks) must be clearly specified.

**Purchase Parameter Confirmation FAQ (Frequently Asked Questions for Global Buyers)**
* **Q:** Are chains of different standards (e.g., ANSI #40 and ISO 08A) interchangeable? A: Chains of the same size can be temporarily substituted, but it is recommended to prioritize chains that match the equipment standards to avoid accelerated wear due to slight differences in sprocket tooth profiles.

Q: How can I verify if the material meets the requirements when purchasing in bulk?

A: You can request the supplier to provide a material testing report (such as SGS or BV certification), or randomly select samples for hardness testing (such as Rockwell hardness testing).

Q: Can I return or exchange goods if the parameters are incorrect?

A: Agree on a “parameter mismatch return/exchange clause” with the supplier in advance, and specify key parameters such as chain number, pitch, and material in the contract to reduce the risk of disputes.
