Is Double Pitch Roller Chain Suitable for High-Speed Transmission?

Is Double Pitch Roller Chain Suitable for High-Speed Transmission?

Introduction
When it comes to high-speed transmission applications, the suitability of double pitch roller chain is a topic of significant interest. Double pitch roller chains are designed to offer specific advantages in certain scenarios, but their applicability in high-speed contexts requires careful consideration of various factors.

Basic Structure and Function

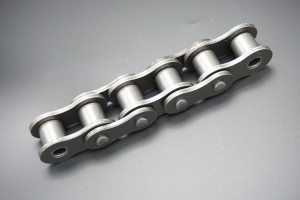

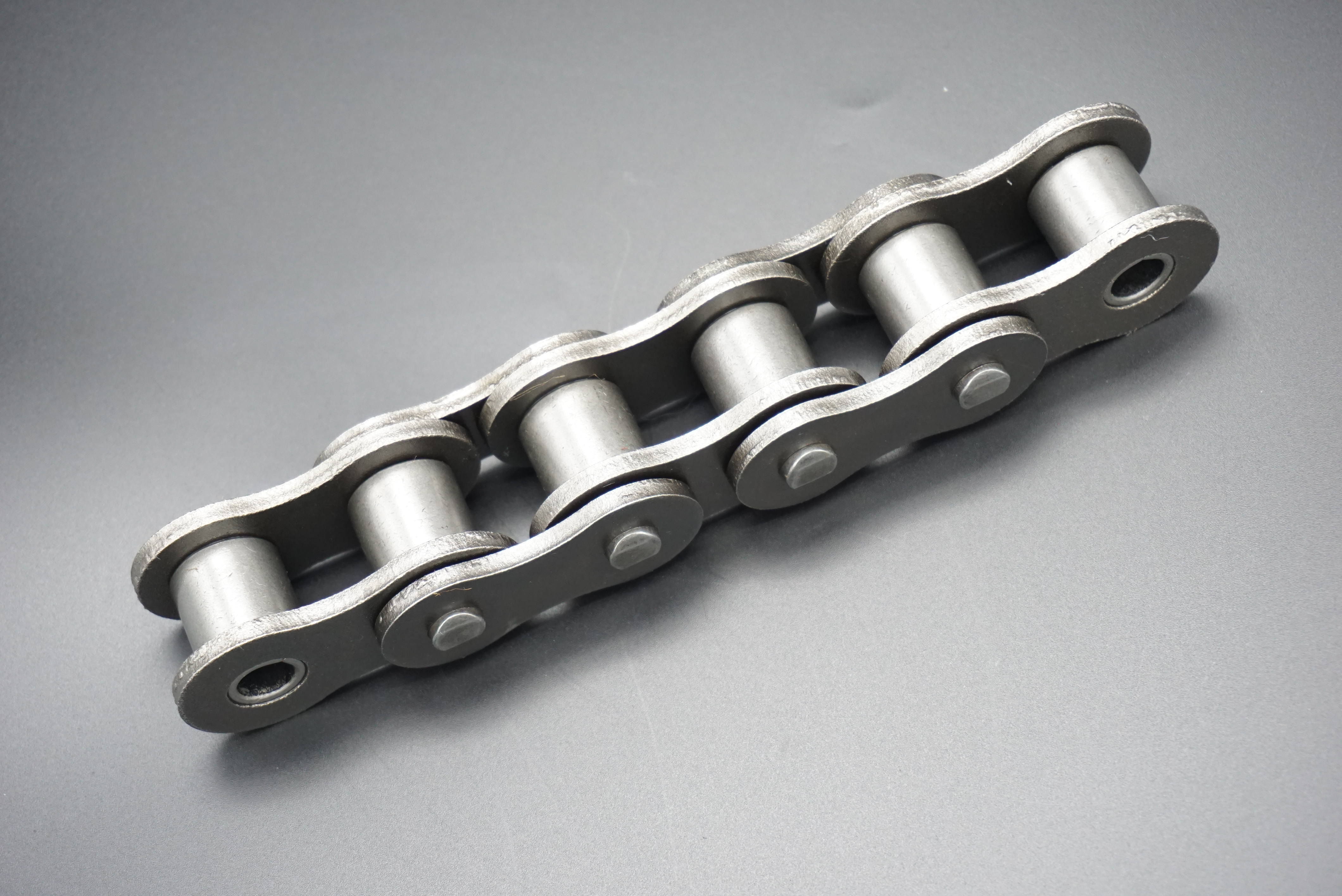

Double pitch roller chains, as the name suggests, have a pitch that is twice that of standard single pitch roller chains. This design allows for a larger distance between the chain links, which can be advantageous in applications where a greater engagement distance is required. The basic structure includes inner and outer link plates, pins, bushings, and rollers, similar to standard roller chains. The larger pitch can provide increased load-carrying capacity and smoother operation at lower speeds, but its performance at high speeds needs to be evaluated based on specific application requirements.

High-Speed Transmission Considerations
Load Capacity: Double pitch roller chains can handle higher loads due to their larger size and greater engagement distance. However, high-speed applications often require a balance between load capacity and the ability to operate efficiently at high rotational speeds. The increased size of the double pitch chain may introduce higher inertia, which can affect performance at very high speeds.
Speed Limits: The upper speed limits for roller chains are influenced by factors such as chain pitch, material properties, and lubrication conditions. For double pitch chains, the speed limits are generally lower compared to single pitch chains due to the larger pitch and associated higher mass. The upper speed limits for different chain pitches are provided in tables, and double pitch chains typically have a lower maximum speed compared to their single pitch counterparts.
Lubrication and Maintenance: Proper lubrication is crucial for high-speed operation to reduce friction and wear. Double pitch chains, like all roller chains, require adequate lubrication to maintain efficiency and longevity. The larger size of double pitch chains may necessitate more frequent or specialized lubrication to ensure optimal performance at high speeds.
Noise and Vibration: High-speed operation can lead to increased noise and vibration. Double pitch chains may produce more noise due to their larger size and greater engagement forces. Special designs, such as using plastic rollers or low-noise chain configurations, can help mitigate these issues.

Applications and Suitability
Double pitch roller chains are commonly used in applications where a combination of high load capacity and moderate speed is required. For example, in industrial machinery and heavy equipment, the double pitch chain can provide reliable power transmission with reduced wear and tear. However, for applications that demand high-speed operation, such as automotive engines or high-speed industrial drives, single pitch chains or other types of chains specifically designed for high-speed use may be more suitable.

Conclusion
In summary, double pitch roller chains can be suitable for certain high-speed applications, but their use should be carefully evaluated based on the specific requirements of the application. Factors such as load capacity, speed limits, lubrication needs, and noise considerations must be taken into account. For applications that require very high speeds, alternative chain types or specialized designs may be necessary to achieve optimal performance and reliability.
