How to prevent dust from entering the hinge pair of the roller chain?

How to prevent dust from entering the hinge pair of the roller chain?
In industrial production, roller chain is a common transmission component, and its performance and service life are crucial to the normal operation of mechanical equipment. However, in many working environments, impurities such as dust can easily enter the hinge pair of the roller chain, causing increased chain wear, unstable operation, and even failure. This article will explore in depth the various methods of preventing dust from entering the hinge pair of the roller chain to help you better maintain and use the roller chain.

1. The structure of the roller chain and the way dust enters

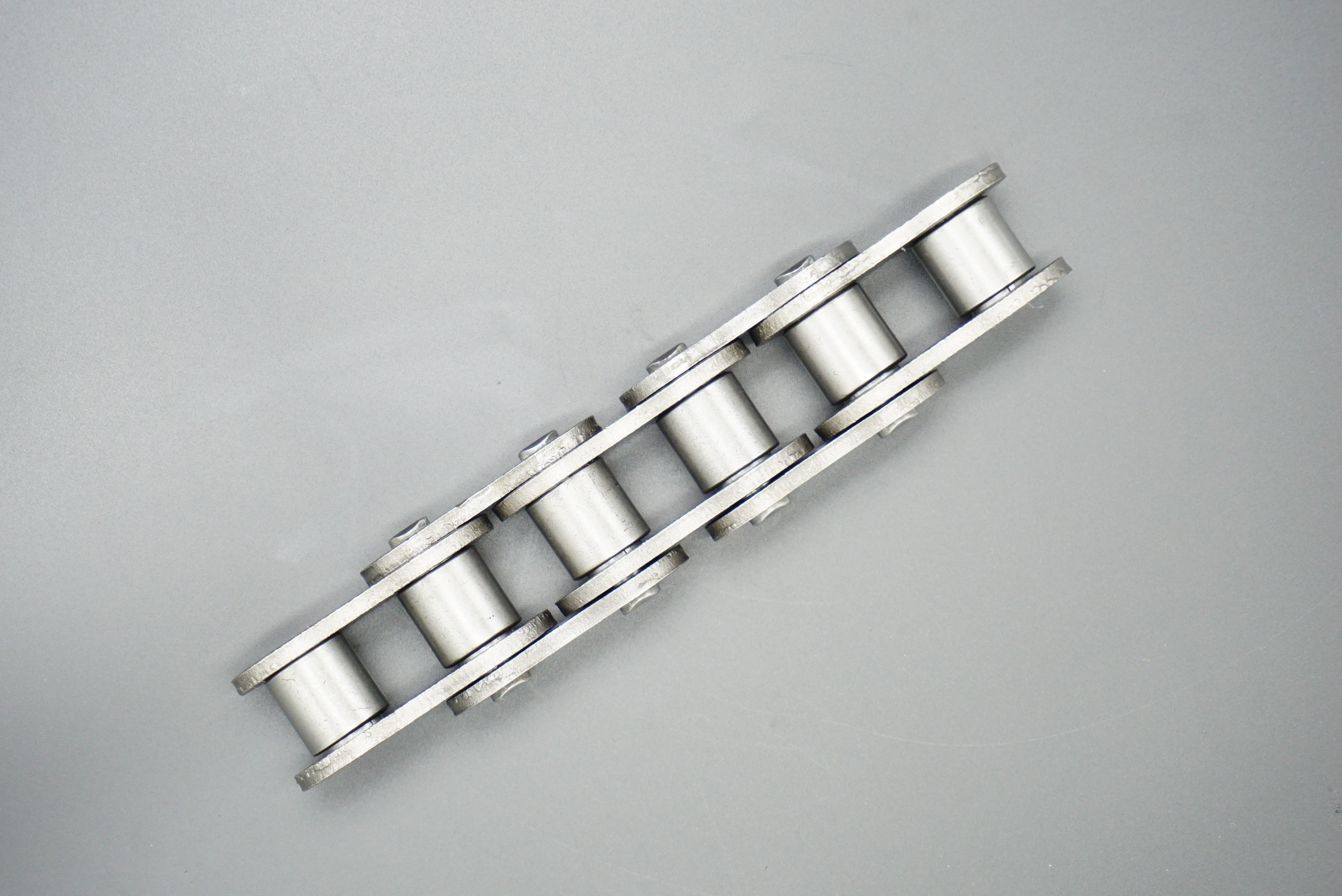

The roller chain is mainly composed of pins, inner sleeves, outer sleeves, inner plates and outer plates. Its working principle is to pass the pin through the through hole of the inner sleeve, and at the same time pass through the inner plate through holes of the two inner plates and the outer plate through holes of the two outer plates to achieve a rotatable connection between the components. However, the diameter of the through hole of the outer plate of the traditional roller chain is smaller than the outer diameter of the inner sleeve and larger than the outer diameter of the pin shaft, and the two ends of the inner sleeve are not higher than the outer surface of the inner plate, resulting in a linear gap between the outer plate, the inner plate and the pin shaft, and this linear gap is directly connected to the gap between the pin shaft and the inner sleeve, which will cause dust and sand to easily enter the gap between the pin shaft and the inner sleeve.

2. Methods to prevent dust from entering the roller chain hinge pair

(I) Optimize the structural design of the roller chain
Improve the coordination between the outer plate and the inner sleeve: The diameter of the through hole of the outer plate of the traditional roller chain is smaller than the outer diameter of the inner sleeve and larger than the outer diameter of the pin shaft, resulting in a linear gap between the outer plate, the inner plate and the pin shaft, making it easy for dust and sand to enter. The improved dustproof roller chain sets countersunk holes on the outer plate so that the two ends of the inner sleeve are just placed in the countersunk holes of the outer plate, and the gap between the outer plate, the inner plate and the inner sleeve becomes a “Z” shape, thereby effectively reducing the entry of dust.
Optimize the fit between the pin and the sleeve: The gap between the pin and the sleeve is one of the main channels for dust to enter. By optimizing the fit accuracy between the pin and the sleeve and reducing the gap between the two, the entry of dust can be effectively prevented. For example, interference fit or high-precision processing technology can be used to ensure that the gap between the pin and the sleeve is within a reasonable range.

(ii) Use dust seals
Install O-rings: Installing O-rings in the hinge pair of the roller chain is a common dust prevention method. O-rings have good elasticity and wear resistance and can effectively prevent the entry of dust. For example, install O-rings between the sleeve and the inner chain plate, between the pin and the outer chain plate, etc., to ensure that the compression of the seal is within a reasonable range to ensure its sealing performance.
Use dust covers: Installing dust covers at the ends or key parts of the roller chain can effectively prevent dust from entering the hinge pair from the outside. Dust covers are usually made of plastic or metal and have good sealing and durability. For example, install a dust cover at the end connection structure of the chain to reduce the dust from entering the chain from this part.

(III) Regular maintenance and care
Cleaning and inspection: Clean and inspect the roller chain regularly to remove dust and impurities attached to the chain in time. When cleaning, you can use a soft brush, compressed air or special cleaning agent, and avoid using too rough tools to avoid damaging the chain surface. When checking, focus on the wear of the hinge pair and the integrity of the seal. If wear or damage is found, it should be replaced in time.
Lubrication and adjustment: Lubricate the roller chain regularly. Using a suitable lubricant can reduce friction and wear inside the chain, and also help prevent dust from entering. When lubricating, the lubricant should be selected according to the manufacturer’s recommendations and ensure that the lubricant is evenly applied to all parts of the chain. In addition, the tension of the chain should be checked regularly to ensure that it is within the appropriate range. Too loose or too tight will affect the normal operation and service life of the chain.

(IV) Improve the working environment
Reduce dust sources: Whenever possible, minimize dust sources in the working environment. For example, dust-generating equipment can be sealed or wet operation can be used to reduce the generation and spread of dust.
Strengthen ventilation and dust removal: In a dusty working environment, ventilation and dust removal measures should be strengthened to promptly discharge dust in the air and reduce the impact of dust on the roller chain. Ventilation equipment and dust removal devices, such as exhaust fans and air purifiers, can be installed to keep the working environment clean.

(V) Choose the right roller chain material
Wear-resistant materials: Choose roller chain materials with high wear resistance, such as alloy steel, stainless steel, etc., which can effectively resist the wear of dust and extend the service life of the chain.
Self-lubricating materials: Roller chains are made of materials with self-lubricating properties, such as certain engineering plastics or composite materials. These materials can automatically release lubricants during operation, reduce friction and wear inside the chain, and also help prevent dust from entering.

3. Dust prevention strategies in different application scenarios

(I) Motorcycle roller chain
Motorcycle roller chains are eroded by road dust, mud and other impurities during driving. Especially in bad road conditions, dust is more likely to enter the hinge pair and accelerate the wear of the chain. For motorcycle roller chains, in addition to the above-mentioned dust prevention measures, special dustproof grooves or dustproof baffles can be designed on the outer plate of the chain to further block the entry of dust. At the same time, lubricants with good water resistance and antioxidant properties are selected to adapt to different driving environments.

(II) Industrial conveyor roller chain
Industrial conveyor roller chains usually operate in dusty environments, such as mines, cement plants, etc. In order to prevent dust from entering the hinge pair, in addition to optimizing the chain structure and using seals, dust covers or dustproof curtains can be installed on the conveyor frame to isolate the chain from external dust. In addition, regular maintenance and cleaning of the conveyor to ensure the cleanliness of the chain and working environment are also important measures to extend the service life of the chain.

(III) Agricultural machinery roller chain
Agricultural machinery roller chains are exposed to a lot of dirt and dust when working in the farmland, and the dust prevention task is arduous. For agricultural machinery roller chains, special sealing designs such as labyrinth seals or lip seals can be used between the pins and sleeves of the chain to improve the sealing effect. At the same time, chain materials with good corrosion resistance and wear resistance are selected to adapt to various chemicals and impurities in the farmland environment.

IV. Summary
Preventing dust from entering the hinge pair of the roller chain is the key to ensuring the normal operation of the roller chain and extending its service life. By optimizing the structural design of the roller chain, using dust seals, regular maintenance and maintenance, improving the working environment, and selecting suitable materials, the impact of dust on the roller chain can be effectively reduced, and its operation stability and reliability can be improved. In practical applications, various dust prevention methods should be comprehensively considered according to different working environments and usage requirements, and reasonable dust prevention strategies should be formulated to ensure the normal operation and long-term use of the roller chain.
