How to ensure the accuracy of roller chain size after welding

How to ensure the accuracy of roller chain size after welding

Introduction
As an important basic mechanical part widely used in various mechanical transmission and conveying systems, roller chain plays a key role in many fields, such as automobiles, motorcycles, agricultural machinery, food processing, logistics and transportation. The quality of roller chain is directly related to the stability, reliability and service life of equipment operation. The dimensional accuracy of roller chain is one of the important indicators to measure its quality, especially for international wholesale buyers, who often have strict requirements on product quality and precision. Welding, as one of the key processes in the manufacturing process of roller chain, has an important impact on the dimensional accuracy of roller chain. So, how to ensure the accuracy of roller chain size after welding? This article will discuss in depth from multiple aspects.

1. Structure and dimensional parameters of roller chain
First, let us understand the basic structure and main dimensional parameters of roller chain, which will help us better understand the impact of welding on its size and subsequent dimensional accuracy guarantee measures.

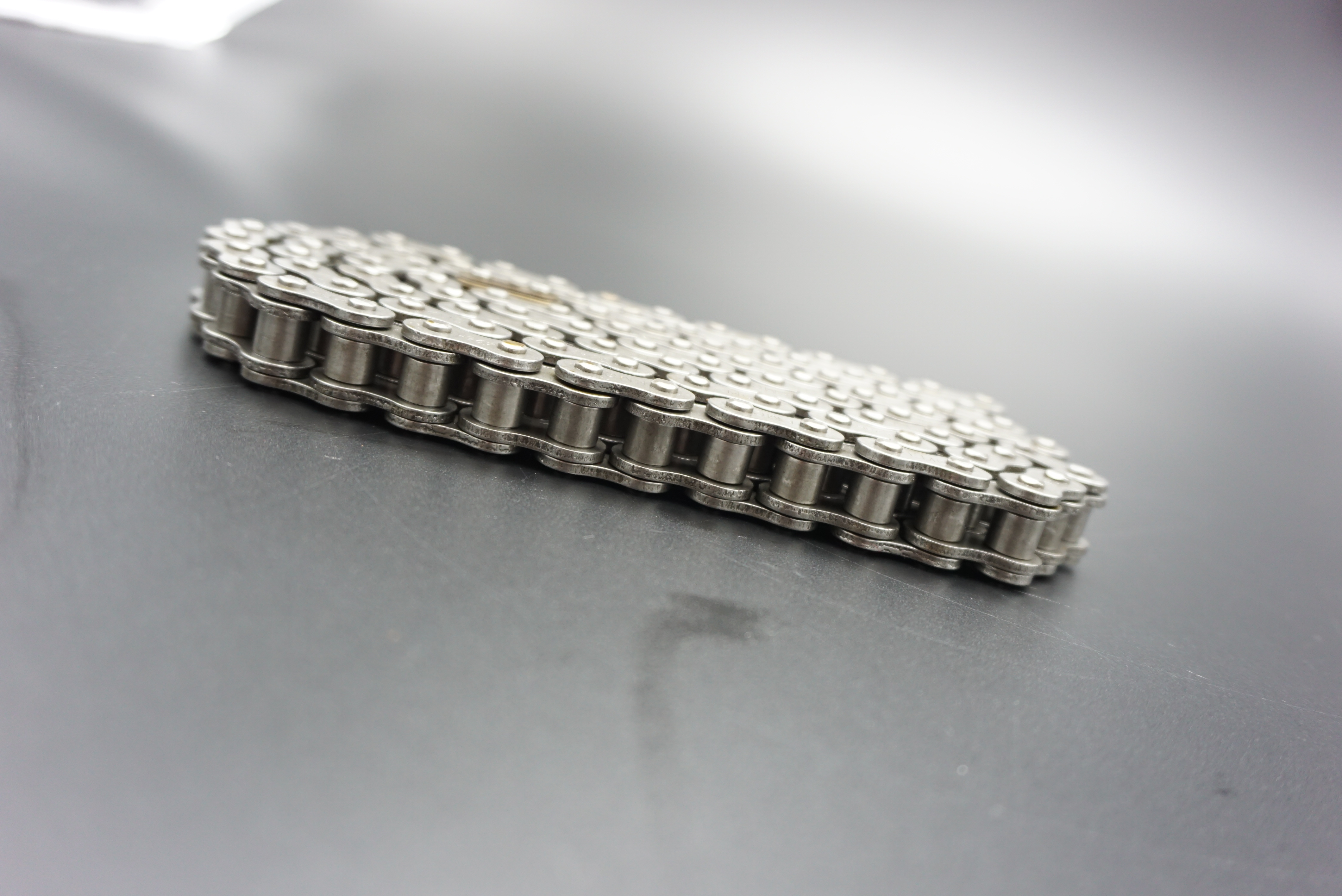

Roller chain usually consists of basic components such as inner chain plate, outer chain plate, pin shaft, sleeve and roller. Its main dimensional parameters include pitch, roller diameter, pin diameter, chain plate thickness, outer chain plate height, inner chain plate height, inner section width, etc. These dimensional parameters have strict standards and tolerance ranges to ensure the normal operation of the roller chain during use and good coordination with other components.

2. The influence of welding process on roller chain size

Welding is a crucial link in the manufacture of roller chains. It connects various components together to form a complete roller chain structure. However, various factors in the welding process will also affect the size of the roller chain:

Thermal deformation: The high temperature generated during welding will cause uneven heating of the roller chain components, resulting in thermal deformation. This thermal deformation may cause changes in pitch, warping of the chain plate, increased ellipticity of the pin hole, and other problems, which in turn affects the overall dimensional accuracy of the roller chain.

Welding stress: The stress generated during welding will produce residual stress inside the roller chain. These stresses will cause deformation of the components to a certain extent, resulting in dimensional instability. If the residual stress is too large, it may also cause quality problems such as cracking of the roller chain during use.
Quality of welding joints: The quality of welding joints will also affect dimensional accuracy. For example, welding defects such as insufficient welding, pores, slag inclusions, etc. will affect the strength and rigidity of the welding joints, which will lead to deformation of the connection parts and affect the dimensional stability of the roller chain.

3. Methods to ensure accurate roller chain dimensions after welding
(I) Optimize welding process parameters
Choose appropriate welding methods: Different welding methods have different heat input and heat-affected zone sizes for roller chain components. Therefore, the appropriate welding method should be selected according to the material, structure and size requirements of the roller chain. For example, for small and precise roller chain components, laser welding or resistance welding, which have small heat-affected zones and low heat input, can be used to reduce welding deformation; while for larger and thicker components, gas shielded welding or arc welding may be more suitable.
Control welding parameters: Reasonable control of welding current, voltage, welding speed, welding time and other parameters is the key to ensuring welding quality and reducing welding deformation. For example, in resistance welding, appropriately reducing the welding current and time can reduce the welding heat input, thereby reducing the deformation of the welding part; while in laser welding, precise control of laser power and welding speed can achieve high-quality welded joints and maintain the dimensional stability of the roller chain.
(ii) Use appropriate welding fixtures and tooling
Design special welding fixtures: Special welding fixtures can accurately position and clamp the various components of the roller chain, ensure the stability of the position and posture of the components during the welding process, and effectively limit welding deformation. When designing welding fixtures, the structural characteristics of the roller chain and the welding process requirements should be fully considered to ensure the rigidity and accuracy of the fixture. For example, for the chain plate welding of the roller chain, a fixture that can simultaneously position and clamp multiple chain plates can be designed to ensure the spacing and parallelism between the chain plates, thereby ensuring the pitch accuracy of the roller chain after welding.
Use auxiliary tooling: In addition to special welding fixtures, some auxiliary tooling can also be used to further reduce welding deformation. For example, when welding a long roller chain, a welding positioner can be used to easily rotate the welding part to the optimal welding position, reducing deformation caused by improper welding position; at the same time, the use of equipment such as welding traction machines can maintain the stability and consistency of the welding process and improve the welding quality and dimensional accuracy of the roller chain.
(III) Post-weld heat treatment
Stress relief annealing: Stress relief annealing after welding is an effective way to relieve welding residual stress and stabilize the size of the roller chain. By heating the roller chain to a certain temperature, keeping it warm for a certain period of time and then slowly cooling it, the residual stress generated during the welding process can be released, the deformation caused by stress can be reduced, and the dimensional stability of the roller chain can be improved. The selection of annealing temperature and time should be optimized according to the material and welding process of the roller chain to ensure the best stress relief effect without affecting other properties of the roller chain.
Stabilization treatment: For some roller chains with extremely high dimensional accuracy requirements, a stabilization treatment process can also be used. This process is based on stress relief annealing, and through reheating and slow cooling, the internal structure and stress distribution of the roller chain are more uniform and stable, further reducing dimensional changes. Stabilization treatment usually requires strict control of process parameters such as heating temperature and cooling speed to ensure the consistency and reliability of the treatment effect.
(IV) Strengthen dimensional inspection and quality control
Establish a complete inspection system: In the production process of roller chains, especially after welding, a complete dimensional inspection system should be established, including comprehensive and accurate inspection of the main dimensional parameters of the roller chain, such as pitch, roller diameter, pin diameter, and chain plate thickness. A variety of inspection equipment and methods can be used, such as gauge blocks, calipers, micrometers, projectors, three-coordinate measuring machines, etc., to select appropriate inspection tools according to the characteristics and precision requirements of different dimensional parameters to ensure the accuracy and reliability of the inspection results.
Implement strict quality control process: According to the inspection results, strict quality control is carried out on the welded roller chain. For products whose dimensional deviation exceeds the allowable range, timely analysis and processing should be carried out to find out the reasons for the dimensional deviation and take corresponding corrective measures. At the same time, a quality traceability mechanism should be established to mark and record each batch of roller chains so that when quality problems occur, they can be traced back to each link in the production process in a timely manner, and effective improvement measures can be taken to continuously improve the dimensional accuracy and quality stability of the roller chain.
(V) Improve the skill level of operators
Professional training and skill improvement: The skill level of operators has a direct impact on the welding quality and dimensional accuracy of roller chains. Therefore, enterprises should regularly organize professional training for operators, including knowledge and skills training in welding process, equipment operation, quality control, etc. Through training, operators will be familiar with the structure and dimensional requirements of roller chains, master the correct welding methods and operating skills, be able to skillfully operate various welding equipment and testing tools, accurately judge and deal with problems arising during welding, thereby improving the welding quality and dimensional accuracy of roller chains.
Establish an incentive mechanism and assessment system: In order to improve the work enthusiasm and sense of responsibility of operators, enterprises should establish corresponding incentive mechanisms and assessment systems. Incorporate the dimensional accuracy and quality indicators of roller chains into the performance assessment system of operators, reward and commend operators who produce high-quality and high-precision roller chain products, and punish and criticize the responsible persons for dimensional deviations or quality problems due to improper operation, thereby prompting operators to continuously improve their skills and work quality to ensure the dimensional accuracy of roller chains.

4. Conclusion
As a key basic mechanical part, the dimensional accuracy of roller chain has a vital impact on the normal operation and service life of the equipment. During the welding process, due to the influence of factors such as thermal deformation, welding stress and welding joint quality, the dimensional accuracy of the roller chain is difficult to guarantee. Therefore, by optimizing welding process parameters, using appropriate welding fixtures and tooling, performing post-weld heat treatment, strengthening dimensional inspection and quality control, and improving the skills of operators, a series of measures can be taken to effectively reduce the impact of welding on the size of the roller chain and ensure the dimensional accuracy of the roller chain. At the same time, drawing on the quality control experience and advanced technology of well-known roller chain manufacturers also provides us with a useful reference and reference for ensuring the dimensional accuracy of roller chains during the production process.
