How to Ensure Mechanical Stretching Does Not Cause Overstretching of Roller Chains

How to Ensure Mechanical Stretching Does Not Cause Overstretching of Roller Chains

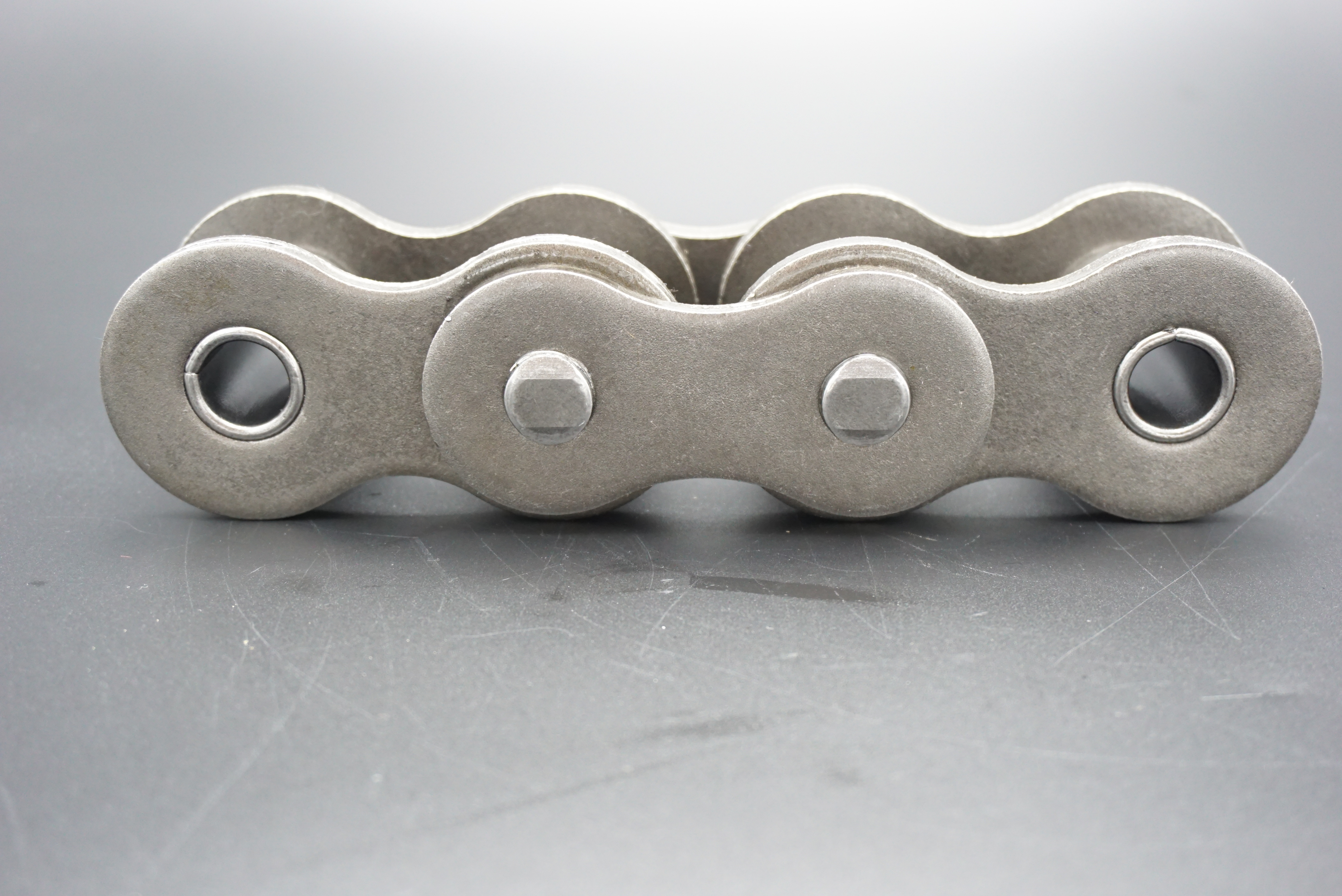

In industrial transmission systems, roller chains, due to their high efficiency and durability, have become core transmission components in conveying machinery, agricultural equipment, and automotive manufacturing. Mechanical stretching is a key process in roller chain installation, commissioning, and maintenance. Its proper operation directly determines the chain’s service life and equipment stability. Improper operation leading to overstretching can not only cause premature chain failure but also potentially lead to a series of problems, including equipment downtime and production accidents. This article will deeply analyze the core principles of mechanical stretching, comprehensively examine the dangers of overstretching, and provide a scientific and practical overstretch prevention plan from three perspectives: preparation, execution, and testing and maintenance.

1. Understanding the Core Connection Between Mechanical Stretching and Roller Chain Overstretching

Before discussing “how to prevent” this, we must first clarify “what”—only by understanding the mechanism of mechanical stretching and the criteria for defining overstretching can we mitigate the risks at their root. 1. The Core Function of Mechanical Stretching: Not “Lengthening the Chain” but “Precise Fitting”

Mechanical stretching doesn’t simply stretch a roller chain with external force. Its essence is to use controlled mechanical force to achieve a preset chain tension during installation or to eliminate accumulated plastic deformation caused by long-term operation during maintenance. Specific application scenarios include:

Pre-stretching during new chain installation: During the manufacturing process, small gaps exist between components such as the chain plates, pins, and rollers. Mechanical stretching can pre-break these gaps, preventing vibration and noise caused by excessive clearance during initial operation.

Adjusting an old chain during maintenance: Roller chains that have been in operation for a long time will experience pitch elongation due to wear. Mechanical stretching can help determine whether the chain is still within the safe operating range or compensate for this elongation by fine-tuning the tensioner.

Synchronous calibration in multi-axis transmissions: When equipment uses multiple roller chains, mechanical stretching ensures consistent tension across all chains, preventing overload on individual chains due to uneven force distribution. 2. Defining Overstretch: The Red Line from “Allowable Elongation” to “Failure Threshold”
Roller chain “stretch” can be divided into two types: elastic stretch (recoverable after the external force is removed) and plastic stretch (permanent deformation after the external force exceeds the material’s yield point). The core of overstretch is “excessive plastic stretch,” usually determined by pitch elongation:

For ordinary transmission roller chains: a pitch elongation exceeding 3% is considered overstretched and requires replacement;

For heavy-duty/high-speed transmission roller chains: a pitch elongation exceeding 2% is a cause for concern, and exceeding 2.5% requires replacement.

Overstretch essentially occurs when the applied force during mechanical stretching exceeds the yield strength of the chain material, or when the stretching time is too long, resulting in excessive accumulated plastic deformation.

2. The Dangers of Overstretch: More Than Just “Chain Failure,” It’s “Equipment Disaster”

Many people believe that “overstretching simply means the chain won’t last long,” but in reality, overstretching can have cascading effects on the entire transmission system and can even lead to safety accidents.

1. Direct Hazard: Irreversible Damage to the Chain

Chain Plate Fracture: Excessive stretching can cause stress concentration at the chain plate holes, leading to cracking at the edges of the holes after long-term operation.

Accelerated Pin Wear: Plastic deformation increases the clearance between the pin and the chain plate hole, causing wear 3-5 times faster than normal.

Roller Seizure: Uneven force during stretching can cause misalignment between the roller and sleeve, preventing the roller from rotating smoothly and further exacerbating wear. 2. Indirect Hazards: Cascading Failures in the Transmission System

Degraded Transmission Accuracy: Excessive chain stretching increases the chain pitch, increasing the meshing clearance with the sprocket teeth. This can easily lead to tooth skipping and chain dropout, impacting equipment operating accuracy (e.g., increased positioning error in conveying equipment).

Premature Sprocket Failure: When a chain with an excessive pitch meshes with a standard sprocket, uneven force is applied to the sprocket teeth, causing localized wear and tooth spalling, shortening the sprocket life.

Surge in Motor Load: When the chain is overstretched, operating resistance increases, requiring the motor to output higher power to maintain operation. This can lead to motor overheating, burnout, or frequent inverter tripping in the long term.

3. Ultimate Hazard: Production Interruption and Safety Risks

For assembly line manufacturers, chain breakage due to excessive chain stretching can cause hours or even days of downtime, resulting in direct economic losses of tens to hundreds of thousands of yuan.

In lifting and hoisting equipment, excessive roller chain stretching can cause heavy objects to fall, resulting in personal injury.

3. Key Prevention: Full Process Control from “Preliminary Preparation” to “Implementation”

The key to avoiding overstretching during mechanical stretching is controllability. Through precise pre-planning, standardized operational execution, and real-time monitoring and inspection, the stretching process can be kept within the “elastic range” to prevent excessive plastic deformation. The following is a phased implementation plan:

Phase 1: Pre-Stretching Preparation – Know Yourself and Your Enemy to Avoid Blind Operations

Insufficient preparation is the primary cause of overstretching. Three key tasks must be completed before stretching:

1. Determine the chain’s “tensile limit parameters.”

Roller chains of different models and materials have significantly different yield strengths and allowable elongations. Key parameters must be determined in advance by consulting the product manual or conducting testing:

Rated tensile load: The maximum tensile force the chain can withstand without plastic deformation (e.g., the rated tensile load for a 16A series roller chain is approximately 15.8kN);

Allowable pitch elongation: Determined based on the equipment’s operating conditions (3% for normal conditions, less than 2.5% for heavy-duty conditions);

Material yield strength: The yield strength of the chain’s main components (such as 40Mn for chain plates and 20CrMnTi for pins) is used as the basis for calculating tensile force.

Practical advice: If the product manual is unavailable, cut a section of the same model chain and perform a “test stretch.” Use a tensile testing machine to determine the yield point, which will serve as a reference for actual stretching. 2. Select Appropriate Stretching Equipment and Tools
Common equipment for mechanical stretching methods includes manual tensioners, electric tensioners, and hydraulic tensioners. The key factors in selecting the right equipment are controllable precision and stable tension.

Small chain (pitch ≤ 12.7mm): A manual tensioner can be used with a torque wrench to control the tension (determine the torque value using the “torque – tension” conversion formula).

Medium-to-large chain (pitch 15.875-38.1mm): An electric tensioner with a digital tension display and automatic shutdown is recommended.

Heavy-duty chain (pitch ≥ 50.8mm): A hydraulic tensioner must be used, using a hydraulic pump to precisely control pressure and avoid sudden increases in tension.

Avoidance Tip: Brute force stretching (such as using a crane) is strictly prohibited. This method fails to control tension and can easily lead to over-stretching. 3. Check the chain and foundation condition.

A pre-stretching condition check can help prevent stretching risks caused by “congenital defects”:

Appearance inspection of the chain: Check for cracks in the chain plates, loose pins, and intact rollers. If any defects are present, repair or replace them before stretching.

Base alignment: Check that the sprocket axes are parallel and coplanar (deviation should be ≤ 0.5 mm/m). Excessive foundation deviation can lead to localized overstretching of the chain after stretching due to uneven force.

Cleaning and lubrication: Remove oil and impurities from the chain surface. Apply a suitable amount of chain-specific lubricant to reduce friction during stretching and avoid localized stress concentrations caused by friction.

Stage 2: Stretching Process Control—Precise Force Application to Control Deformation Rhythm

The core of the stretching operation is “constant speed, controllable force, and real-time monitoring.” The following four steps must be strictly followed:

1. Setting “Graded Stretching” Parameters

To avoid excessive plastic deformation caused by a single application of excessive force, a “graded stretching” mode should be used. The specific parameters are as follows:

Level 1 (Pre-Stretching): Apply 30%-40% of the rated tensile load for 5-10 minutes to eliminate initial play in the chain and observe for abnormal deformation.

Level 2 (Working Stretching): Slowly increase the tensile force to 60%-70% of the rated tensile load and hold for 10-15 minutes. The chain is now in the elastic stretching stage, and the tension can be adjusted as needed.

Level 3 (Calibration Stretching): If further adjustment is required, increase the tensile force to 80% of the rated tensile load (strictly not exceeding 90%), hold for 5 minutes, then slowly unload and monitor for pitch changes. Core Principle: Pause for 3-5 minutes between each stretching stage to evenly distribute chain stress and avoid sudden tensile shocks.
2. Controlling Stretching Speed ​​and Force Uniformity
Stretching Speed: When manually stretching, the wrench rotation speed should be ≤ 1 rotation/second. When electrically/hydraulically stretching, the force increase rate should be ≤ 5kN/minute to avoid “sudden force” that can cause local overload.
Force Uniformity: When stretching, ensure that the tension points at both ends of the chain are aligned with the chain axis. If the chain is too long (over 5 meters), add auxiliary supports in the middle to prevent uneven force due to chain sagging due to its own weight.
Directional Control: The stretching direction should align with the chain’s operating load direction (e.g., a drive chain should be stretched along the drive plane) to avoid chain distortion caused by lateral tension. 3. Real-time Monitoring of Stretching Status: “Observe, Measure, and Listen”

Multi-dimensional monitoring is required during the stretching process to promptly detect signs of overstretching:

“Observe” Deformation: Use a vernier caliper or pitch gauge to measure the chain pitch every 5 minutes (measure 10 consecutive pitches and take the average to calculate the elongation). When the elongation approaches 80% of the allowable value, slow down the stretching process.

“Measure” Tension: Use the digital display of the stretching equipment to monitor the tension in real time. If the tension suddenly drops (indicating plastic deformation of the chain), stop stretching immediately.

“Listen” Abnormal Sounds: If unusual noises such as “clicking” or “squeaking” are heard during stretching, it may indicate a mismatch between the chain plate and pin. Stop the machine for inspection and correct the problem before continuing. 4. Standardize the Unloading Process: Avoid “Rebound Damage”

After reaching the desired stretching requirements, the unloading process is equally important. Improper unloading may cause the chain to rebound and deform:

Unloading Speed: Slowly reduce the tension. The unloading speed should be consistent with the stretching speed, and avoid sudden unloading.

Post-Unloading Inspection: After unloading, remeasure the chain pitch to confirm whether the elongation is stable (elastic stretch will recover, while plastic stretch will remain). If the elongation exceeds the allowable value, replace the chain immediately.

Temporary Securement: If the chain needs to be temporarily stored after unloading, it should be hung on a dedicated bracket to avoid squeezing and twisting, which may affect the calibrated tension.

Phase 3: Post-Stretching Maintenance – “Continuous Monitoring” to Extend Chain Life

Mechanical stretching isn’t a one-time fix. Regular post-stretching maintenance can promptly identify potential stretching issues:

1. Establish a “Chain Stretching File”

Record key data for each stretching operation to create a complete lifecycle management file:

Stretching date, operator, equipment model;

Pitch before/after stretching, tension value, hold time;

Chain operating conditions (load, speed, temperature).

By comparing these files, you can analyze the chain’s stretching deformation patterns and provide a basis for subsequent adjustments to stretching parameters.

2. Regularly Check Pitch Changes

Develop a pitch inspection plan based on the frequency of equipment operation:

Ordinary equipment: Monthly inspection;

Heavy-load/high-speed equipment: Weekly inspection;

Critical equipment (such as the production line’s main drive): Spot check during daily inspections.

When pitch elongation reaches 90% of the allowable value, schedule maintenance in advance to prevent sudden failure. 3. Optimize the operating environment to reduce chain stretch accumulation.
Lubrication management: Regularly add appropriate lubricant (such as mineral oil or synthetic oil) to reduce chain wear and delay pitch elongation.
Load control: Avoid long-term overload operation (load should be ≤ 85% of the rated load) to reduce chain stretch stress.
Cleaning and maintenance: Regularly remove dust and impurities from the chain to prevent abnormal pitch elongation caused by abrasive wear.

4. Common Mistakes to Avoid: These “Seemingly Reasonable” Operations Actually Accelerate Overstretching

Even after mastering the standard procedures, many people still fall into misconceptions that lead to overstretching. Here are three common pitfalls:

Myth 1: “The tighter the stretch, the better; avoid loosening during operation.”

Truth: Overtensioning exposes the chain to prolonged high stress, accelerating plastic deformation. The correct approach is to maintain chain sag within 2%-4% of the center distance between the two sprockets (in horizontal transmission). Less sag indicates overtension.

Myth 2: “Mixing old and new chains to adjust length by stretching.”

Truth: The old chain has already undergone plastic deformation. When combined with the new chain for stretching, the old chain will overstretch first due to its weaker tensile strength, resulting in uneven stress distribution throughout the chain. The correct approach is to replace all chains in the same transmission system with new ones from the same model and batch. Misconception 3: “Ignoring sprocket wear and simply stretching the chain”
Truth: If the sprocket teeth are severely worn (tooth tips are pointed, tooth surfaces are peeling), even if the chain is stretched to the standard pitch, uneven force will still be applied during meshing, indirectly leading to localized overstretching of the chain. The correct approach is to check the sprocket condition before stretching. If the sprocket wear exceeds the standard, replace the sprocket before stretching the chain.

5. Summary: Three Core Principles for Ensuring Controllable Mechanical Stretching

Overstretching of roller chains caused by mechanical stretching is essentially the result of “human error” and “lack of parameter understanding.” To completely avoid this risk, keep the following three principles in mind:
Parameters First: Before stretching, key chain parameters such as the rated load and allowable elongation must be clearly defined, and avoid relying on experience.
Controllable Process: Use staged stretching and real-time monitoring to keep tension and deformation within the elastic range.
Continuous Maintenance: After stretching, perform regular inspections and optimize the environment to delay stretch accumulation and extend chain life.
