How to determine whether the lubrication frequency of roller chain 12A is appropriate

How to determine whether the lubrication frequency of roller chain 12A is appropriate
In industrial production, roller chain 12A is a common transmission element, and its performance and service life are crucial to the stable operation of the equipment. Reasonable lubrication is one of the key factors to ensure the normal operation of roller chain 12A, reduce wear and extend service life. However, many users have doubts about how to determine whether the lubrication frequency of roller chain 12A is appropriate during use. This article will discuss in detail from multiple aspects to help you better understand and master this important link.

1. Basic characteristics and application scenarios of roller chain 12A

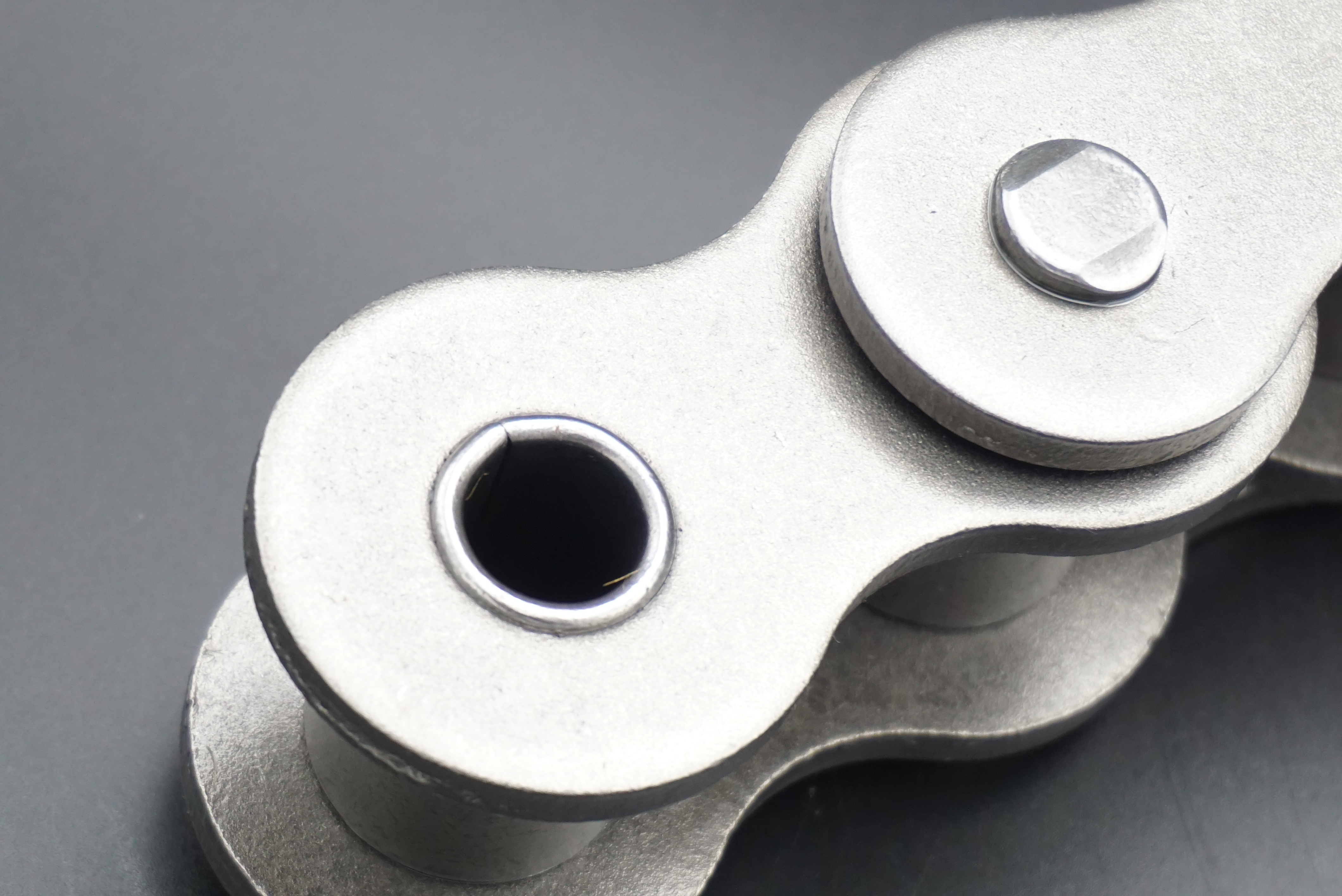

Basic characteristics: Roller chain 12A is a standard short-pitch precision roller chain for transmission with a pitch of 3/4 inches and good tensile strength, wear resistance and fatigue performance. It is usually made of high-quality alloy steel and can withstand large loads and impact forces after fine processing and heat treatment processes.
Application scenarios: Roller chain 12A is widely used in various mechanical transmission fields, such as automobiles, motorcycles, agricultural machinery, industrial automation equipment, conveying systems, etc. In these application scenarios, roller chain 12A needs to cooperate with sprockets to transfer power from the driving source to the driven equipment to achieve normal operation of the machinery.

2. The importance of lubrication for roller chain 12A
Reduce wear: Lubricants can form a protective film on the surface of relatively moving parts such as the chain and sprocket, chain and pin of roller chain 12A, so that metal parts can avoid direct contact, thereby significantly reducing the friction coefficient and wear rate. This helps to maintain the accuracy and performance of roller chain 12A, and reduce problems such as chain elongation and sprocket tooth damage caused by wear.
Extend service life: Sufficient and effective lubrication can effectively reduce the wear and fatigue damage of roller chain 12A during operation, so that it can perform longer-lasting performance within the design life range. Generally speaking, the service life of a well-lubricated roller chain 12A can be extended several times or even dozens of times compared to an unlubricated or poorly lubricated chain.
Anti-corrosion and anti-rust: The anti-corrosion and anti-rust components in the lubricant can form a protective film on the surface of the roller chain 12A, isolating the contact between corrosive media such as moisture, oxygen, and acidic substances in the air and the metal surface, thereby preventing the chain from rusting and corroding, and protecting the appearance and performance of the chain.
Reduce noise: When the roller chain 12A is in operation, if there is a lack of lubrication, the direct metal friction between the chain and the sprocket will produce large noise and vibration. Proper lubrication can effectively reduce this noise and vibration, making the machine run more smoothly and quietly, and improving the working environment.

3. Factors affecting the lubrication frequency of the roller chain 12A
Running speed: The running speed of the roller chain 12A has an important influence on its lubrication frequency. Under high-speed operation, the relative movement speed between the chain and the sprocket is faster, the heat generated by friction is more, and the lubricant is more likely to be thrown out or consumed. Therefore, more frequent lubrication is required to ensure that the lubricant can continue to play a role and maintain a good lubrication state. On the contrary, for the roller chain 12A running at a low speed, the lubrication interval can be appropriately extended.
Load size: When the load on roller chain 12A is large, the contact stress between the chain and the sprocket also increases, and the wear is aggravated. In order to provide adequate lubrication and protection under high load conditions, the lubrication frequency needs to be increased to replenish the lubricant and form a thicker protective film to reduce the wear of the chain and sprocket caused by the load.
Ambient temperature: The ambient temperature also has a significant impact on the performance and lubrication effect of the lubricant. In a high temperature environment, the viscosity of the lubricant will decrease and it is easy to lose, resulting in insufficient lubrication. At this time, it is necessary to select a lubricant suitable for a high temperature environment and appropriately increase the lubrication frequency to ensure that the lubricant can maintain good adhesion and lubricity at high temperatures. In a low temperature environment, the viscosity of the lubricant will increase and the fluidity will deteriorate, which may affect the distribution and replenishment of the lubricant. Therefore, it is necessary to select a suitable lubricant according to the characteristics of the low temperature environment and reasonably adjust the lubrication frequency.
Environmental humidity and pollution: If the roller chain 12A works in a humid, dusty or polluted environment, moisture, dust, impurities, etc. are easy to invade the inside of the chain, mix with the lubricant, form abrasive wear, and accelerate the damage of the chain. In this case, more frequent lubrication and cleaning work is required to remove impurities and moisture to prevent them from having adverse effects on the chain. At the same time, lubricants with good water resistance and dust resistance should be selected to improve the lubrication effect and protection performance.
Corrosiveness of the working environment: When the roller chain 12A is exposed to corrosive media, such as acids, alkalis, salts and other chemicals, the metal parts of the chain are prone to corrosion, resulting in performance degradation and shortened service life. In this corrosive environment, it is necessary to use special anti-corrosion lubricants and increase the frequency of lubrication to form a thick protective film on the surface of the chain to prevent the corrosive medium from contacting the metal and protect the chain from corrosion.
Chain design and manufacturing quality: High-quality roller chains 12A undergo fine processing and strict quality control during the manufacturing process. They have less surface roughness and higher precision, which can better retain lubricants and reduce lubricant loss and waste. Therefore, for roller chains 12A with better design and manufacturing quality, the lubrication frequency can be relatively low. Poor quality chains may require more frequent lubrication to make up for their shortcomings.
Lubricant type and quality: Different types of lubricants have different performance characteristics and service life. For example, some high-performance synthetic lubricants have good high-temperature stability, low-temperature fluidity and anti-wear properties, can maintain good lubrication effects over a wide operating temperature range, and the lubrication interval is relatively long. Ordinary mineral oil-based lubricants may need to be replaced and replenished more frequently. In addition, qualified lubricants can better play the role of lubrication, anti-wear, and anti-corrosion, and extend the lubrication cycle; while poor quality lubricants may accelerate the wear and damage of the chain and require more frequent lubrication.

4. Methods for determining the lubrication frequency of roller chain 12A
Reference to the equipment manufacturer’s recommendations: Equipment manufacturers usually provide specific recommendations and requirements for the lubrication frequency of the roller chain 12A used. These recommendations are based on the operating conditions, design parameters and usage of the equipment, and are highly reliable and authoritative. Therefore, when determining the lubrication frequency, you should first consult the equipment’s instruction manual or consult the equipment manufacturer to perform maintenance and maintenance according to the lubrication cycle recommended by it.
Regular inspection and observation: Regular comprehensive inspection and observation of the operating conditions of the roller chain 12A is one of the important means to determine the lubrication frequency. By checking the surface wear of the chain, the color and viscosity changes of the lubricant, the meshing state between the chain and the sprocket, etc., signs of poor lubrication can be found in time, such as increased wear, lubricant drying, deterioration, and increased impurities. Once these problems are found, the lubrication frequency should be adjusted immediately, the number of lubrications should be increased, and the chain should be cleaned and maintained.
Monitoring temperature and noise changes: Temperature and noise are important indicators that reflect the operating status and lubrication conditions of the roller chain 12A. Under normal operation, the temperature and noise of roller chain 12A should be kept within a relatively stable range. If the temperature is found to be abnormally high or the noise is significantly increased, this may be a sign of increased wear or dry friction caused by poor lubrication. At this time, it is necessary to check the condition of the lubricant in time, adjust the lubrication frequency according to the actual situation, and increase the amount of lubricant replenishment to reduce the temperature and noise and restore the normal lubrication state.
Wear measurement: Regular wear measurement of roller chain 12A is a more accurate method to determine whether the lubrication frequency is appropriate. By measuring parameters such as the pitch elongation of the chain, the wear degree of the pin shaft, and the thickness reduction of the chain plate, the wear degree of roller chain 12A can be quantitatively evaluated. If the wear rate is fast and exceeds the normal wear range, it means that the lubrication frequency may be insufficient, and it is necessary to increase the number of lubrication times or replace a more suitable lubricant. Generally speaking, when the pitch elongation of roller chain 12A exceeds 3% of the original pitch, it is necessary to consider replacing the chain, and before that, the wear rate should be slowed down by adjusting the lubrication frequency.
Consult professional organizations or technicians: If you have doubts or uncertainty about the lubrication frequency of roller chain 12A, you can consult professional lubrication organizations, roller chain 12A manufacturers or experienced technicians. They can provide professional advice and guidance based on your specific usage, equipment operating conditions and the actual condition of roller chain 12A to help you develop a reasonable lubrication plan and frequency.

5. Lubrication frequency recommendations for roller chain 12A in different application scenarios
Automotive industry: On automobile production lines, roller chain 12A is often used to drive various conveying equipment and automated production lines. Since automobile production lines usually have higher operating speeds and heavier loads, and the working environment is relatively clean and dry, the lubrication frequency of roller chain 12A is generally recommended to be lubricated once per shift or 2-3 times per week, which can be adjusted according to the actual operation of the production line and the requirements of the equipment manufacturer. At the same time, lubricants with good anti-wear properties and high temperature stability should be selected to meet the production needs of the automotive industry.
Agricultural machinery: In agricultural machinery, such as tractors and harvesters, roller chains 12A need to work in relatively harsh environments, such as high temperature, humidity, dust, mud, etc. These environmental factors will have a greater impact on the lubrication effect of roller chains 12A, and easily lead to lubricant loss, deterioration and impurity intrusion. Therefore, in agricultural machinery, the lubrication frequency of roller chains 12A should be appropriately increased. It is generally recommended to lubricate 1-2 times a week, or lubricate before and after each use. And it is necessary to select lubricants with good water resistance, dust resistance and corrosion resistance to protect roller chains 12A from the harsh environment and extend their service life.
Food processing industry: In the field of food processing, roller chains 12A are widely used in mechanical transmission systems such as conveyor belts and packaging equipment. Due to the high requirements for hygiene and safety in the food processing process, the lubricants used must meet food grade standards to prevent the lubricants from contaminating the food. In terms of lubrication frequency, it is generally recommended to lubricate once every 2-4 weeks, depending on factors such as the operating speed, load and working environment of the equipment. At the same time, it is necessary to ensure that the quality and use of the lubricant comply with relevant regulations to meet the strict requirements of the food processing industry.
Industrial automation equipment: In various industrial automation equipment, such as robots, automated assembly lines, etc., roller chains 12A usually work under relatively stable environmental conditions, and the operating speed and load are relatively moderate. In this case, the lubrication frequency can be determined according to the specific operating conditions of the equipment and the recommendations of the equipment manufacturer. Generally, lubrication 1-2 times a month is sufficient. However, it should be noted that due to the high precision requirements of industrial automation equipment, the selection of lubricants should have good adhesion and anti-oxidation properties to ensure the long-term stable operation of the equipment.

6. Selection and use of lubricants
Lubricant selection: According to the working conditions and environmental requirements of roller chains 12A, choosing the right lubricant is the key to ensuring the lubrication effect. The following are some common lubricant types and their applicable occasions:
Mineral oil-based lubricants: With good lubrication performance and economy, they are suitable for roller chains 12A with medium and low speeds and medium loads in general industrial environments. However, its performance may be affected to a certain extent in high or low temperature environments.
Synthetic lubricants: including synthetic hydrocarbons, esters, silicone oils, etc., have excellent high temperature stability, low temperature fluidity and anti-wear performance, can maintain good lubrication effect in a wide temperature range, and are suitable for harsh working conditions such as high temperature, low temperature, high speed, and heavy load. For example, synthetic lubricants containing poly α-olefin (PAO) or ester base oils can effectively lubricate roller chains 12A in a temperature range of -40°C to 200°C or even higher.
Grease: It has good adhesion and sealing properties, can prevent lubricant loss and impurity intrusion, and is suitable for roller chains 12A with low speed, heavy load or difficult to lubricate frequently. However, in high speed or high temperature environments, grease may be thrown out or deteriorate, and the appropriate grease type needs to be selected according to the actual situation.
Solid lubricants: such as molybdenum disulfide, graphite, etc., have good anti-wear and high temperature resistance, and can be used under extremely high temperatures and pressures. In some special working environments, such as vacuum, strong oxidizing media, etc., solid lubricants are ideal for roller chain 12A lubrication. However, the addition and application of solid lubricants are relatively complicated, and usually need to be mixed with other lubricants or processed through special processes.
Food-grade lubricants: In industries with high hygiene requirements such as food and medicine, food-grade lubricants that meet the standards of certification agencies such as FDA and USDA must be used to ensure that the lubricants will not cause harm to the human body when they accidentally come into contact with food or medicine.
Precautions for the use of lubricants: When using lubricants, you also need to pay attention to the following points:
Keep the lubricant clean: Before adding lubricants, make sure that the lubricant containers and tools are clean and dust-free to avoid impurities from mixing into the lubricant. At the same time, during the lubrication process, prevent impurities such as dust and moisture from entering the interior of the roller chain 12A to avoid affecting the lubrication effect and damaging the chain.
Apply lubricant correctly: Lubricant should be evenly applied to various parts of roller chain 12A, including the gap between the inner and outer chain plates, the contact surface between the pin and the sleeve, the meshing of the chain and the sprocket, etc. Special lubrication tools such as brushes, oil guns, sprayers, etc. can be used to ensure that the lubricant can fully penetrate into the interior of the chain to form a complete lubricating film.
Avoid mixing different types of lubricants: Chemical reactions or incompatibility problems may occur between different types of lubricants, resulting in the performance of the lubricant being degraded or even ineffective. Therefore, when replacing lubricants, the old lubricant should be thoroughly cleaned before adding new lubricants.
Regularly replace lubricants: Even if the lubricant is not completely consumed, its performance will gradually decline and lose its lubricating effect after a period of use. Therefore, it is necessary to regularly replace the lubricant according to the service life of the lubricant and the operation of the equipment to ensure the normal lubrication of the roller chain 12A.

7. Adjustment and optimization of lubrication frequency
Dynamic adjustment according to actual operation conditions: The lubrication frequency of roller chain 12A should not remain unchanged, but should be dynamically adjusted according to the actual operation conditions of the equipment. For example, in the early stage of equipment operation, due to the running-in process of the chain and sprocket, the wear rate is relatively fast, and the lubrication frequency may need to be appropriately increased to accelerate the running-in process and provide better protection. With the stable operation of the equipment, the lubrication cycle can be gradually adjusted according to the wear and lubrication conditions. In addition, when the operating conditions of the equipment change, such as major changes in speed, load, working environment, etc., the lubrication frequency should also be re-evaluated and adjusted in time to adapt to the new operating conditions and ensure the reliable operation of roller chain 12A.Establish lubrication records and maintenance files: Establishing detailed lubrication records and maintenance files is an important measure to optimize lubrication frequency management. Record the time of each lubrication, the type and amount of lubricant used, the operating status of the equipment, and the problems found. Through the analysis and statistics of these data, we can better understand the lubrication rules and wear trends of roller chain 12A, and provide a basis for formulating a reasonable lubrication plan and adjusting the lubrication frequency. At the same time, maintenance files also help to quickly locate the cause and solution of the problem during equipment maintenance and troubleshooting, and improve the management level and operation efficiency of the equipment.Use automatic lubrication system: For some roller chain 12A application scenarios that require frequent lubrication or are difficult to lubricate manually, you can consider using an automatic lubrication system. The automatic lubrication system can automatically inject an appropriate amount of lubricant into the roller chain 12A according to the preset program and time interval, ensuring the timeliness and accuracy of lubrication, and avoiding insufficient or excessive lubrication caused by human factors. This not only improves the efficiency and reliability of lubrication management, but also reduces labor maintenance costs and equipment downtime, and improves the overall operation efficiency of the equipment. Common automatic lubrication systems include drip lubrication systems, spray lubrication systems, grease lubrication systems, etc., which can be selected and installed according to specific application requirements and equipment characteristics.

8. Summary
Determining whether the lubrication frequency of roller chain 12A is appropriate is a complex process that requires comprehensive consideration of multiple factors. By deeply understanding the characteristics and application scenarios of roller chain 12A, fully recognizing the importance of lubrication, analyzing the key factors affecting lubrication frequency, and mastering the correct determination methods and precautions, we can formulate a scientific and reasonable lubrication plan for roller chain 12A, thereby ensuring its reliable operation and long service life under various working conditions.
In actual applications, we should pay close attention to the operating status of roller chain 12A, conduct regular inspections and maintenance, and adjust the lubrication frequency and method in time according to the actual situation of the equipment. At the same time, select high-quality lubricants and combine them with advanced lubrication technology to further improve the lubrication effect and equipment performance. Only in this way can we give full play to the advantages of roller chain 12A, provide stable and efficient power transmission solutions for industrial production, reduce equipment maintenance costs and downtime, and improve the production efficiency and economic benefits of enterprises.
