How to detect whether the roller chain needs lubrication?

How to detect whether the roller chain needs lubrication?

In the field of industrial transmission, roller chains play a vital role, and their normal operation has a profound impact on the stability and reliability of various mechanical equipment. Lubrication is a key link in the maintenance of roller chains. Accurately judging whether it needs lubrication can not only effectively extend the service life of the chain, but also avoid equipment failures and production interruptions caused by improper lubrication. This article will explore in depth how to detect whether the roller chain needs lubrication, covering a variety of practical methods, key points for detection and related precautions, to provide comprehensive and professional guidance for your equipment maintenance.

1. Basic structure and working principle of roller chain

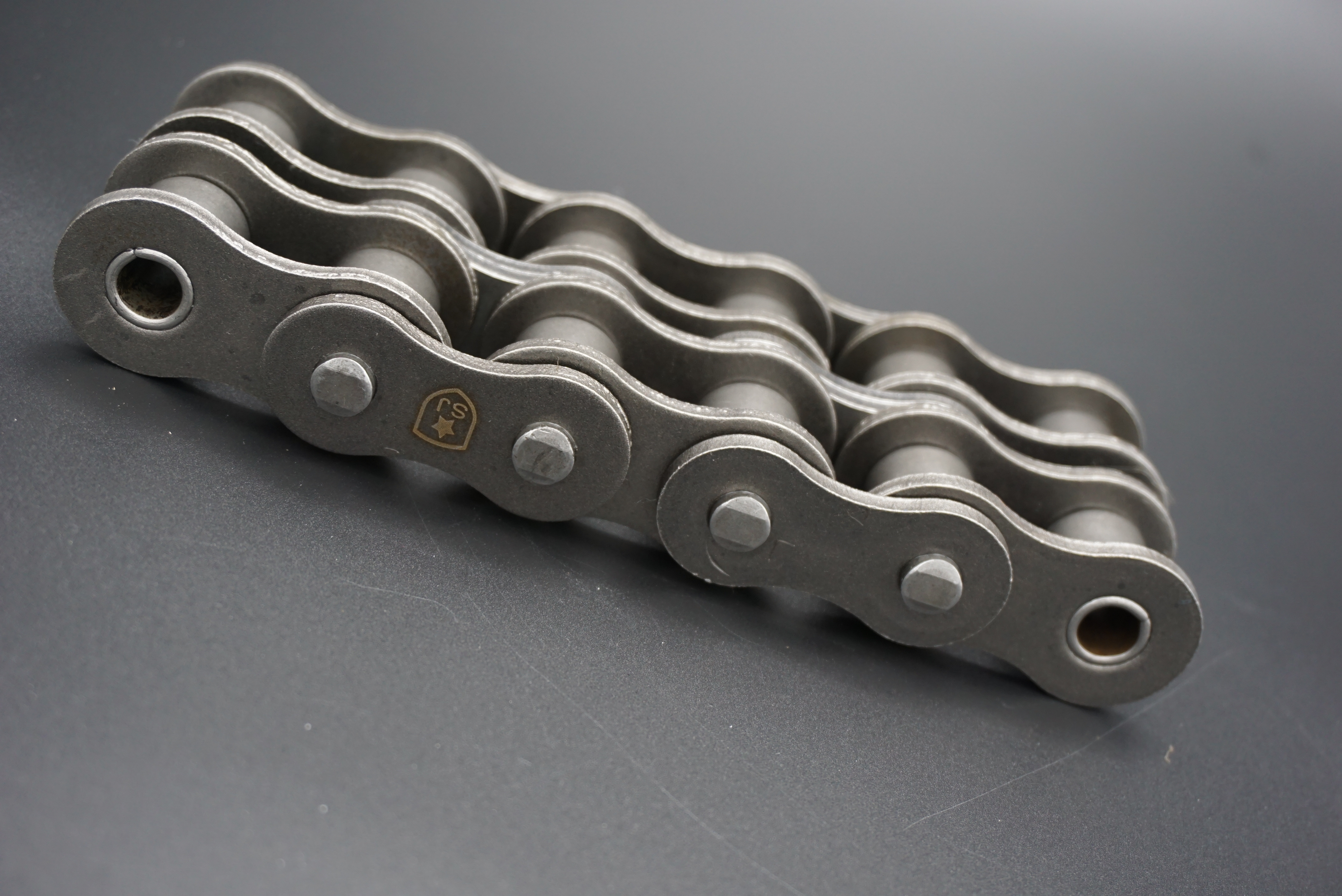

The roller chain is mainly composed of inner chain plates, outer chain plates, pins, sleeves and rollers. The inner chain plates and outer chain plates are formed by stamping and have high strength and precision. They work closely with the pins and sleeves to form the basic skeleton structure of the chain link. After the pin passes through, the sleeve is fixed between the inner chain plate and the outer chain plate, and the roller is sleeved on the outside of the sleeve and can rotate flexibly on the sleeve.
When the roller chain is in the transmission process, the roller meshes with the sprocket teeth. As the sprocket rotates, the roller rolls along the surface of the teeth, driving the entire chain to circulate, thereby realizing the transmission of power. This unique structure enables the roller chain to operate stably under complex working conditions such as high speed and heavy load, while having high transmission efficiency and precision. However, during the long-term operation of the roller chain, friction and wear will inevitably occur between the components, and reasonable lubrication is the key to reducing friction, reducing wear, and ensuring the normal operation of the roller chain.

2. The importance of lubrication to roller chains
Reducing friction and wear
When the roller chain is running, friction will occur between the roller and the sprocket teeth, between the sleeve and the pin, and between the chain plates. Friction not only consumes energy and reduces transmission efficiency, but also causes gradual wear on the surfaces of various components, affecting the precision and life of the roller chain. Proper lubrication can form a uniform oil film between these contact surfaces, so that liquid friction or mixed friction can be achieved between the relatively moving parts, significantly reducing friction resistance and wear. For example, in the roller chain transmission system of heavy-duty transport equipment, good lubrication can extend the wear life of the chain several times, effectively reducing the maintenance cost and downtime of the equipment.

Reduce noise and vibration
During the operation of the roller chain, due to the friction and collision between the components, a certain degree of noise and vibration will be generated. These noises and vibrations will not only affect the working environment of the operator, but also cause fatigue damage and reduced precision of the equipment. Lubricants can fill the tiny gaps between the components of the roller chain, play a role in buffering and vibration absorption, and reduce the direct impact between the components, thereby effectively reducing the noise and vibration levels. According to experiments, the noise of a fully lubricated roller chain transmission system can be reduced by 10-15 decibels, and the vibration amplitude can also be significantly reduced, which helps to improve the smoothness and comfort of the equipment.

Prevent corrosion and rust
In industrial production environments, roller chains are often exposed to various corrosive media, such as moisture, acid and alkali gases, oil stains, etc. These media easily form a corrosion layer on the surface of the roller chain, causing the chain to rust and become brittle, thereby affecting its normal transmission performance. Lubricants usually have good anti-rust and anti-corrosion properties, and can form a protective film on the surface of the roller chain to isolate the contact between the corrosive medium and the metal surface of the chain, effectively preventing the occurrence of corrosion and rust. For example, in a humid food processing workshop or chemical production environment, regular lubrication of the roller chain can significantly improve its corrosion resistance and ensure the long-term stable operation of the equipment in harsh environments.

3. Detect signs that the roller chain needs lubrication

Visual inspection
Dryness of the chain surface: Carefully observe the surface of the roller chain. If you find that the lubricating oil film on the surface of the chain has basically disappeared and is dry and matte, this is usually an obvious sign of insufficient lubrication. Under normal lubrication conditions, the surface of the roller chain should have a thin and uniform oil film, which will reflect a certain gloss under light. When the oil film is missing, direct friction between metals is prone to occur on the chain surface, accelerating the wear process. For example, on some conveying equipment roller chains that have not been lubricated and maintained for a long time, fine scratches and wear marks caused by dryness can be seen on the surface of the chain, indicating that the chain is in urgent need of lubricating oil.

Chain color change: During the operation of the roller chain, if poor lubrication leads to increased friction, a lot of heat will be generated. This heat will cause the metal on the surface of the chain to oxidize, causing the chain color to change. Usually, when there is a slight discoloration on the surface of the chain, such as light yellow or brown, it may mean that the lubrication condition has begun to deteriorate. If the color deepens further, turning into dark brown or black, or even partially burning blue, it means that the chain is already in a state of serious lack of lubrication and must be lubricated immediately, otherwise it may cause serious faults such as chain breakage. For example, in an industrial furnace transmission roller chain under high temperature environment, due to poor heat dissipation and insufficient lubrication, the chain surface is prone to burning blue, which is a lubrication warning signal that requires special attention.

Auditory judgment
Abnormal noise: During the operation of the roller chain, listen carefully to its transmission sound. Under normal circumstances, the transmission sound of the roller chain should be smooth, continuous and relatively quiet. If you hear a sharp, harsh friction sound or a periodic “click” sound from the chain, this is likely due to insufficient lubrication, which increases the friction between the roller and the sprocket teeth, between the sleeve and the pin, and produces abnormal mechanical noise. For example, in the roller chain transmission system of a bicycle, when the chain lacks lubrication, you can clearly hear the “squeaking” friction sound of the chain during riding, which indicates that the chain needs to be lubricated and maintained. In addition, if you hear irregular impact or vibration sounds during the chain transmission process, it may also be related to poor lubrication. It may be due to abnormal collisions between the gaps between the chain parts due to increased friction, which requires further inspection and treatment.

Noise change trend: In addition to paying attention to whether the roller chain has abnormal noise, you should also pay attention to the change trend of the noise. After the equipment has been running for a period of time, regularly monitor and record the noise of the roller chain transmission. If you find that the noise is gradually increasing or new noise frequency components appear, this may indicate that the lubrication condition is deteriorating. By comparing the noise data at different time points, you can find roller chain lubrication problems in advance, take corresponding lubrication measures in time, and avoid equipment failures. For example, in the roller chain transmission system of some automated production lines, by installing noise sensors, real-time monitoring of chain transmission noise, and combining data analysis software, the lubrication status of the roller chain can be accurately determined to achieve preventive maintenance.

Temperature measurement
Chain surface temperature: Use tools such as infrared thermometers or temperature patches to measure the surface temperature of the roller chain during operation. Under normal circumstances, the surface temperature of the roller chain should be kept within a relatively stable range. The specific temperature value depends on factors such as the operating speed, load conditions, and working environment of the equipment. If the surface temperature of the chain is found to be abnormally high, this may be due to insufficient lubrication, which leads to increased friction and a large amount of heat. For example, in the roller chain transmission system of the scraper conveyor of mining machinery, when the chain is poorly lubricated, its surface temperature may increase by 10-20 degrees Celsius or even higher than normal. Continuous high temperature will not only accelerate the wear of the chain, but also may cause the performance of the lubricating oil to deteriorate, further deteriorate the lubrication conditions, and form a vicious circle. Therefore, when the surface temperature of the roller chain is found to be abnormally high, the equipment should be stopped immediately, the lubrication condition should be checked, and corresponding lubrication measures should be taken.

Temperature rise rate: In addition to paying attention to the absolute temperature value of the roller chain, you should also pay attention to its temperature rise rate. When the equipment starts or the load increases suddenly, the temperature of the roller chain will rise, but if the temperature rise rate is too fast and exceeds the normal range, this may indicate a problem with the lubrication system. For example, in the timing chain transmission system of a car engine, when the lubrication is poor, the chain will heat up rapidly during high-speed operation, which may cause serious faults such as chain elongation, tooth skipping, or even breakage. By monitoring the temperature rise rate of the roller chain, early signs of lubrication problems can be discovered in time, and measures can be taken in advance to avoid equipment damage and safety accidents.

Friction coefficient test
Professional friction test instrument: Use professional friction test instruments, such as friction coefficient testers, to accurately measure the friction coefficient of the roller chain. During the test, the roller chain sample is installed on the test instrument to simulate the motion state under actual working conditions. The friction coefficient is calculated by measuring the friction between the chain and the sprocket and the motion parameters of the chain itself. Under normal lubrication conditions, the friction coefficient of the roller chain should be kept within a low and stable range. If the friction coefficient increases significantly and exceeds the normal range, it indicates that the lubrication effect is not good, the friction resistance between the chain components increases, and lubrication maintenance needs to be carried out in time. For example, in some high-precision mechanical transmission systems, such as the roller chain transmission device of CNC machine tools, the friction coefficient of the roller chain is required to be high. By regularly using professional friction testing instruments for testing, it can ensure that the roller chain is always in a good lubrication state and ensure the processing accuracy and operation efficiency of the equipment.

Simple friction test method: If there is no professional friction test instrument, some simple friction test methods can also be used to roughly judge the lubrication condition of the roller chain. For example, fix one end of the roller chain and apply a certain tension to the other end to keep the chain at a certain tension, then gently move the chain with your hand and observe the movement of the chain. If the chain moves smoothly, there is no obvious stagnation or jitter, and the sound emitted during the movement is relatively soft, this usually indicates that the lubrication condition is good. On the contrary, if the chain does not move smoothly, there is stagnation or jitter, and there is a loud friction sound, this may mean insufficient lubrication and further inspection and treatment are required. In addition, the friction condition can be indirectly judged by observing the degree of chain relaxation during operation. If the chain is excessively relaxed under normal load, it may be due to increased friction resistance, resulting in a decrease in chain tension, which may also be a sign of poor lubrication.

Chain flexibility check
Manual operation test: When the equipment is stopped, manually operate the roller chain to check its flexibility. Under normal circumstances, the roller chain should be able to bend and stretch easily, and the fit between the components is tight and smooth. If the chain is obviously stuck, stiff or irregular during manual operation, it may be due to insufficient lubrication, resulting in increased friction between the chain components, or the lubricating oil has deteriorated and agglomerated, affecting the normal movement of the chain. For example, on some roller chains of mechanical equipment that have not been used for a long time, the lubricating oil may precipitate or oxidize after being left standing for a long time. During manual operation, the flexibility of the chain will obviously decrease, and re-lubrication is required.

Chain slack test: Checking the slack of the roller chain is also a way to judge its lubrication condition. During the operation of the equipment, the roller chain will form a certain slack section under the action of gravity and tension. If the chain slack is found to be abnormally increased, it may be due to poor lubrication, which leads to increased chain wear and larger pitch, thereby reducing the tension of the chain and increasing the slack. By regularly measuring the slack of the roller chain and comparing it with the standard value recommended by the equipment manufacturer, lubrication problems can be discovered in time. For example, in the roller chain transmission system of the hoisting mechanism of some large cranes, there are strict requirements for the slack of the chain. By regularly checking and adjusting the slack of the chain, it is ensured that the roller chain is always in a good lubrication and tension state to ensure the safe operation of the equipment.

Fourth, the frequency of testing the lubrication state of the roller chain
The frequency of testing the lubrication state of the roller chain should be determined comprehensively based on factors such as the operating conditions of the equipment, the working environment, and the type and use of the roller chain. Generally speaking, for equipment with high operating speeds, heavy loads, and harsh working environments (such as high temperature, humidity, and more dust), the lubrication state of the roller chain should be tested more frequently. For example, in the blast furnace feeding system of a steel plant, the roller chain is in a high temperature, high dust environment for a long time, and the load is large. In order to ensure the normal operation of the roller chain, it is usually necessary to conduct a quick check of the lubrication state of the roller chain every day and a comprehensive inspection and maintenance once a week. For some equipment with lower running speed, lighter load and better working environment, such as file transfer equipment in the office, the frequency of roller chain lubrication status detection can be relatively low, generally once a month.
In addition, the newly installed or repaired roller chain transmission system should strengthen the detection of lubrication status during the initial operation stage. This is because during the running-in period of the equipment, the cooperation between the various components of the roller chain has not yet reached the optimal state, the friction is relatively large, and the lubricant consumption is also fast. By increasing the detection frequency, lubrication problems can be discovered and solved in time, helping the roller chain to smoothly pass the running-in period and extend its service life. For example, in a newly installed motorcycle roller chain transmission system, it is recommended to check the lubrication status of the roller chain every 100 kilometers within the first 500 kilometers, and make appropriate lubrication adjustments according to actual conditions.

5. Choose the right roller chain lubricant

Lubricant type
Lubricating oil: Lubricating oil is a common roller chain lubricant with good fluidity and lubrication properties. According to the different base oils, lubricating oils can be divided into two categories: mineral oil and synthetic oil. Mineral oil is relatively cheap and suitable for roller chain lubrication under general working conditions; synthetic oil has better high temperature stability, low temperature fluidity and anti-oxidation performance, and is suitable for roller chain lubrication under harsh working conditions such as high temperature, high speed and heavy load. For example, in the timing chain transmission system of automobile engines, high-performance synthetic lubricants are usually used to ensure long-term stable operation of the chain under high temperature and high speed.

Grease: Grease is a semi-solid lubricant composed of base oil, thickener and additives. Compared with lubricating oil, grease has better adhesion and sealing properties, can form a thicker lubricating film on the surface of the roller chain, effectively prevent the intrusion of impurities such as moisture and dust, and is suitable for roller chain lubrication under low speed, heavy load and humid working conditions. For example, in the roller chain transmission system of mining machinery, due to the harsh working environment and high dust, the use of grease for lubrication can better protect the roller chain and extend its service life.

Lubricant performance indicators
Viscosity: Viscosity is one of the most important performance indicators of lubricants, which directly affects the fluidity and lubrication effect of lubricants between the various components of the roller chain. For high-speed roller chains, lubricants with lower viscosity should be selected to reduce the agitation resistance of the lubricant and reduce energy loss; for low-speed and heavy-load roller chains, lubricants with higher viscosity should be selected to ensure that the lubricant forms a sufficiently thick oil film between the contact surfaces and effectively bears a larger load. For example, in the high-speed bicycle roller chain transmission system, lubricants with lower viscosity are usually used to ensure that the lubricant can quickly reach each lubrication point when the chain is running at high speed to reduce friction resistance; while in the roller chain transmission system of the hoisting mechanism of the crane, grease with higher viscosity is required to meet the lubrication requirements under heavy load conditions.

Antioxidation: During the operation of the roller chain, the lubricant will be affected by factors such as high temperature, high pressure, and friction, and it is easy to undergo oxidation reactions, resulting in a decrease in lubricant performance and the generation of harmful substances such as sludge and carbon deposits. Therefore, good antioxidation is one of the essential properties of roller chain lubricants. Lubricants with good antioxidation properties can maintain their chemical properties for a long time, extend the service life of the lubricant, and reduce the number of equipment maintenance. For example, in some industrial furnace roller chain transmission systems in high temperature environments, the use of synthetic lubricants with excellent antioxidant properties can effectively prevent the lubricant from rapid oxidation and deterioration at high temperatures, ensuring the long-term stable operation of the roller chain.

Water resistance: For roller chain transmission systems in humid environments or with more contact with water, the water resistance of the lubricant is crucial. Lubricants with good water resistance can still maintain their lubricating properties when in contact with water, and are not easily washed away by water, preventing moisture from entering the roller chain to cause corrosion and rust. For example, in the roller chain transmission system of ship deck machinery, due to long-term exposure to the humid environment at sea, grease with good water resistance must be used for lubrication to ensure the normal operation of the roller chain in harsh environments.

VI. Roller chain lubrication methods and steps

Preparation before lubrication
Cleaning the chain: Before lubricating the roller chain, you first need to thoroughly clean the chain. Use appropriate detergents, such as kerosene, diesel or special chain cleaners, to remove impurities such as oil, dust, metal chips, etc. on the surface of the chain. When cleaning, you can use a soft brush or rag to dip in detergent and gently wipe all parts of the chain to ensure that there is no residual dirt on the surface of the rollers, chain plates, sleeves and pins. After cleaning, wipe the detergent on the surface of the chain with a clean rag, and let the chain dry naturally or blow it dry with compressed air to avoid moisture remaining on the surface of the chain and affecting the lubrication effect.

Check the chain condition: While cleaning the chain, carefully check the wear, deformation, and whether there are cracks, breaks and other damages of the roller chain. If the chain is found to be severely worn or damaged, a new chain should be replaced in time to avoid safety accidents such as chain breakage during continued use after lubrication. For slightly worn chains, they can continue to be used after lubrication, but daily inspections and maintenance should be strengthened, and the development trend of wear should be closely monitored.
Filling of lubricants
Filling of lubricants: For roller chain transmission systems lubricated with lubricants, oil guns, oil pots or automatic lubrication equipment can be used to fill lubricants into various lubrication points of the chain. When filling lubricating oil, ensure that the lubricating oil can be evenly applied to the contact surfaces of components such as rollers, chain plates, sleeves and pins. In general, the amount of lubricating oil added should be controlled to the extent that the chain can be fully soaked with lubricating oil but not to the extent that the lubricating oil overflows excessively. Too much lubricating oil will not only cause waste, but may also increase the stirring resistance and affect the operating efficiency of the equipment. For example, in the lubrication process of motorcycle roller chains, a grease gun is usually used to evenly inject lubricating oil into the gap between the rollers and chain plates of the chain until the lubricating oil overflows slightly from the other side of the chain.
Grease filling: For roller chain transmission systems lubricated with grease, a grease gun can be used to inject grease into the lubrication points of the chain. When filling grease, it should be noted that the amount of grease filled should not be too much. Generally, 1/3 – 1/2 of the internal space of the chain can be filled. Too much grease will increase the movement resistance of the chain and cause the operating temperature of the equipment to increase. At the same time, due to the poor fluidity of grease, during the filling process, it should be ensured that the grease can be fully filled into the gaps between the rollers, chain plates, sleeves and pins to achieve a good lubrication effect. For example, during the lubrication of the crane roller chain, use a grease gun to slowly inject the grease into each lubrication point of the chain until the grease is slightly squeezed out of the gap of the chain, indicating that the grease has been fully filled into the chain.

Inspection and adjustment after lubrication
Check the lubrication effect: After completing the lubrication of the roller chain, start the equipment for trial operation, observe the operating status of the roller chain, and check whether the lubrication effect is good. During the trial operation, pay attention to monitoring the transmission sound of the roller chain, observe the temperature changes of the chain, and whether there is leakage of lubricating oil or grease. If it is found that the roller chain still has abnormal noise, high temperature or lubricant leakage, the equipment should be stopped immediately, the filling of the lubricant and the sealing of the lubrication system should be checked, and adjustments and treatments should be made in time.
Adjust the lubrication cycle: According to the lubrication effect of the roller chain during the trial run and the actual operating conditions of the equipment, the lubrication cycle should be appropriately adjusted. If the roller chain shows signs of insufficient lubrication in a short period of time, it means that the lubrication cycle is too long and needs to be shortened; on the contrary, if the roller chain remains in good lubrication for a long time, it means that the lubrication cycle can be appropriately extended. By reasonably adjusting the lubrication cycle, it can not only ensure that the roller chain is always in a good lubrication state, but also effectively reduce the consumption of lubricants and the maintenance cost of the equipment.

VII. Precautions for roller chain lubrication

Avoid mixing different lubricants: When lubricating the roller chain, avoid mixing lubricants of different brands, types or performance indicators. The chemical composition and performance characteristics of different lubricants may vary greatly. Mixing may cause chemical reactions between lubricants, generate precipitates or colloidal substances, affect the lubrication effect, and even cause corrosion and damage to the roller chain. Therefore, when replacing the lubricant, the old lubricant should be thoroughly cleaned before adding the new lubricant.

Prevent impurities from entering the lubrication system: The sealing of the roller chain lubrication system is crucial to maintaining the lubrication effect. During the lubrication process, ensure that the lubricant filling port and the seals of the lubrication system are intact to prevent dust, moisture, metal chips and other impurities from entering the lubrication system. If impurities enter the lubrication system, they will mix with the lubricant, reduce the performance of the lubricant, and increase the friction and wear between the various components of the roller chain. Therefore, in daily maintenance, it is necessary to regularly check the sealing of the lubrication system, replace damaged seals in time, and keep the lubrication system clean and sealed.

Pay attention to the storage and preservation of lubricants: The storage and preservation conditions of lubricants will also affect their performance and service life. Lubricating oils and greases should be stored in a cool, dry, well-ventilated place, avoiding direct sunlight and high temperature environments. At the same time, ensure that the lubricant container is well sealed to prevent moisture and impurities from entering. During use, lubricants should be used according to the first-in-first-out principle to prevent the lubricant from being stored for a long time and deteriorating and failing. In addition, different types of lubricants should be stored separately to avoid confusion and misuse.

By mastering the above methods and key points for detecting whether the roller chain needs lubrication, as well as rationally selecting lubricants, using correct lubrication methods and precautions, the normal operation of the roller chain can be effectively guaranteed, its service life can be extended, and the reliability and production efficiency of the equipment can be improved. In practical applications, a scientific and reasonable roller chain lubrication maintenance plan should be formulated according to the specific conditions and operating conditions of the equipment, and regular inspections and maintenance should be carried out to ensure that the roller chain is always in a good lubrication state, providing a strong guarantee for the stable operation of the equipment.
