In roller chain manufacturing, welding is a critical process for connecting links and ensuring chain strength. However, thermal deformation during welding often becomes a persistent problem, impacting product precision and performance. Deformed roller chains can exhibit problems such as link deflection, uneven pitch, and inconsistent chain tension. These problems not only reduce transmission efficiency but also increase wear, shorten service life, and even cause equipment failure. As a key tool for controlling deformation, the design of welding fixtures directly determines the quality of roller chain welding. This article will examine the root causes of roller chain welding deformation and systematically explain how to achieve deformation control through scientific fixture design, providing practical technical solutions for manufacturing practitioners.

First, understand: What is the root cause of roller chain welding deformation?

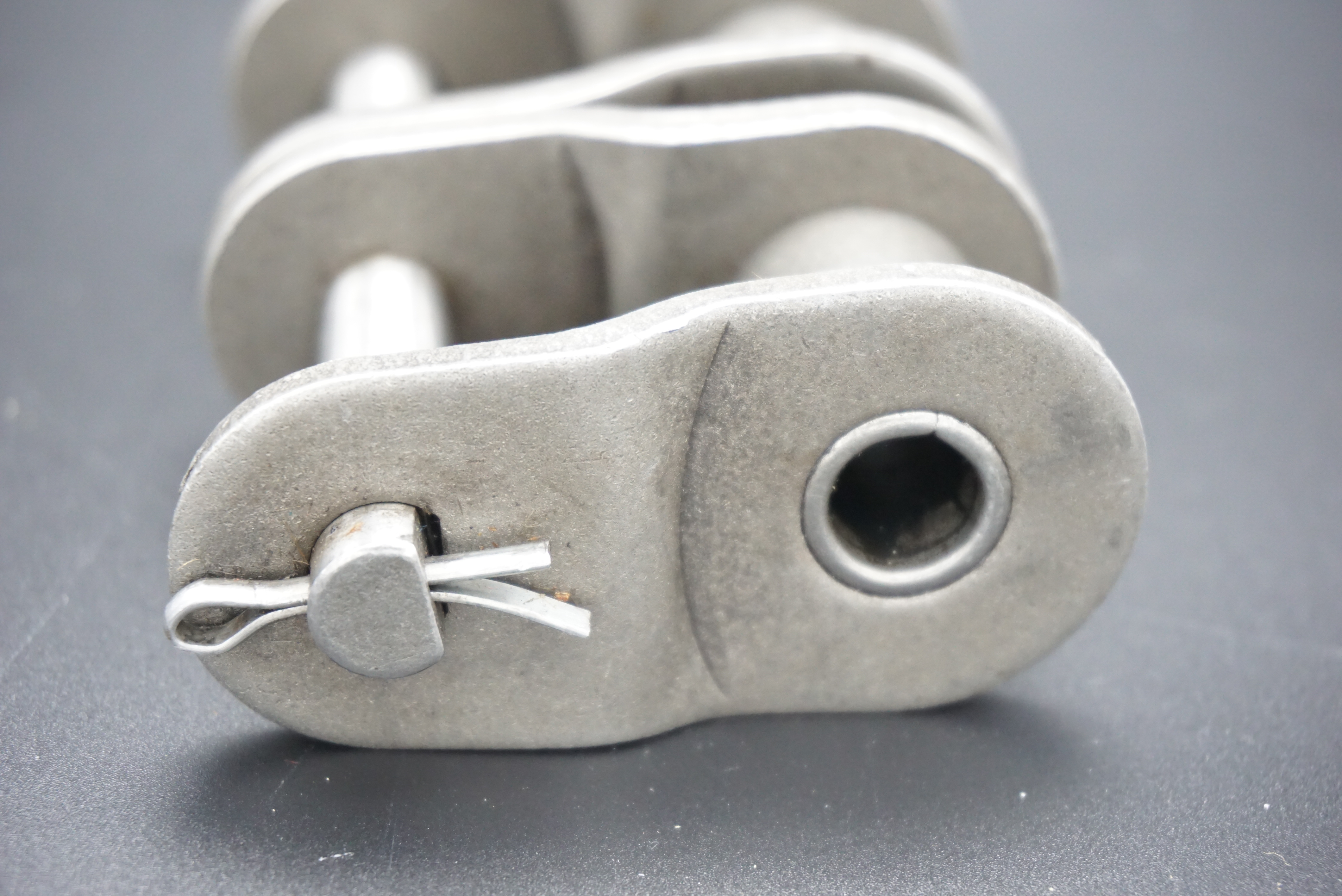

Before designing a fixture, we must first understand the fundamental cause of roller chain welding deformation—stress release caused by uneven heat input and insufficient restraint. Roller chain links typically consist of outer and inner plates, pins, and bushings. During welding, localized heating is primarily applied to the connection between the plates, pins, and bushings. The core causes of deformation during this process can be summarized as follows:

Imbalanced thermal stress distribution: The high temperature generated by the welding arc causes localized rapid expansion of the metal, while the surrounding unheated areas, due to their lower temperature and greater rigidity, act as a constraint, preventing the heated metal from expanding freely and generating compressive stress. During cooling, the heated metal contracts, which is hindered by the surrounding areas, resulting in tensile stress. When the stress exceeds the yield point of the material, permanent deformation occurs, such as bent links and misaligned pins.

Inadequate component positioning accuracy: Roller chain pitch and link parallelism are key precision indicators. If the component positioning reference in the fixture is unclear before welding and the clamping force is unstable, the components are prone to lateral or longitudinal misalignment under the action of thermal stress during welding, resulting in pitch deviations and link distortion. Poor compatibility between welding sequence and fixture: An improper welding sequence can cause heat accumulation in the workpiece, exacerbating localized deformation. If the fixture fails to provide dynamic constraints based on the welding sequence, deformation will be further compounded.

Second, core principles of welding fixture design: precise positioning, stable clamping, and flexible heat dissipation.

Given the structural characteristics of roller chains (multiple components and thin, easily deformed chain plates) and welding requirements, fixture design must adhere to three key principles to control deformation at the source:

1. Unified Datum Principle: Using Core Accuracy Indicators as the Positioning Datum

The core accuracy of roller chains is pitch accuracy and chain plate parallelism, so fixture positioning design must focus on these two indicators. The classic “one-plane, two-pin” positioning method is recommended: the flat surface of the chain plate serves as the primary positioning surface (restricting three degrees of freedom), and two locating pins, mating with pin holes (restricting two and one degrees of freedom, respectively), achieve complete positioning. The locating pins must be made of wear-resistant alloy steel (such as Cr12MoV) and quenched (hardness ≥ HRC58) to ensure positioning accuracy persists even after long-term use. The clearance between the locating pins and the chain plate pin holes should be kept between 0.02-0.05mm to facilitate clamping and prevent component movement during welding.

2. Clamping Force Adaptation Principle: “Sufficient and Non-Damaging”

Clamping force design is crucial for balancing deformation prevention and damage prevention. Excessive clamping force can cause plastic deformation of the chain plate, while too little can hinder welding stress. The following design considerations must be met:

The clamping point should be positioned appropriately: close to the weld area (≤20mm from the weld) and located in a rigid area of ​​the chain plate (such as near the edge of the pin hole) to avoid bending caused by the clamping force acting in the middle of the chain plate. Adjustable Clamping Force: Select the appropriate clamping method based on the chain thickness (typically 3-8mm) and material (mostly alloy structural steels such as 20Mn and 40MnB). These methods include pneumatic clamping (suitable for mass production, with clamping force adjustable via a pressure regulator, ranging from 5-15N) or screw clamping (suitable for small-batch customization, with stable clamping force).
Flexible Clamping Contact: A polyurethane gasket (2-3mm thick) is applied to the contact area between the clamping block and the chain. This increases friction while preventing the clamping block from indenting or scratching the chain surface.

3. Heat Dissipation Synergy Principle: Thermal Matching Between the Clamp and the Welding Process

Welding deformation is essentially caused by uneven heat distribution. Therefore, the clamp must provide auxiliary heat dissipation, reducing thermal stress through a dual approach of “active heat dissipation and passive heat conduction.” For passive heat conduction, the fixture body should be made of a material with high thermal conductivity, such as aluminum alloy (thermal conductivity 202W/(m・K)) or copper alloy (thermal conductivity 380W/(m・K)), replacing traditional cast iron (thermal conductivity 45W/(m・K)). This accelerates heat conduction in the welding area. For active heat dissipation, cooling water channels can be designed near the weld of the fixture, and circulating cooling water (water temperature controlled at 20-25°C) can be introduced to remove local heat through heat exchange, making the workpiece cooling more uniform.

Third, Key Strategies and Details in Clamp Design to Reduce Roller Chain Deformation

Based on the above principles, we need to focus our design on specific structures and functions. The following four strategies can be directly applied in actual production:

1. Modular Positioning Structure: Adaptable to Multiple Roller Chain Specifications, Ensuring Positioning Consistency

Roller chains come in a variety of specifications (e.g., 08A, 10A, 12A, etc., with pitches ranging from 12.7mm to 19.05mm). Designing a separate fixture for each specification would increase costs and changeover time. We recommend the use of modular positioning components: The positioning pins and blocks are designed to be replaceable and connected to the fixture base via bolts. When changing specifications, simply remove the old positioning component and install a new one with the corresponding pitch, reducing changeover time to less than 5 minutes. Furthermore, the positioning datums of all modular components must align with the datum surface of the fixture base to ensure consistent positioning accuracy for roller chains of different specifications.

2. Symmetrical Constraint Design: Offsetting the “Interaction” of Welding Stress

Roller chain welding often involves symmetrical structures (for example, welding a pin to a double chainplate simultaneously). Therefore, the fixture should employ a symmetrical constraint design to minimize deformation by offsetting stresses. For example, during the welding process of a double chainplate and a pin, the fixture should be symmetrically positioned with positioning blocks and clamping devices on both sides of the chain to ensure consistent welding heat input and restraint force. Furthermore, an auxiliary support block can be placed in the middle of the chain, flush with the plane of the chainplates, to mitigate bending stress in the center during welding. Practical data shows that a symmetrical constraint design can reduce pitch deviation in roller chains by 30%-40%.

3. Dynamic Follow-Up Clamping: Adapting to Thermal Deformation During Welding

During welding, the workpiece undergoes minute displacements due to thermal expansion and contraction. A fixed clamping method can lead to stress concentrations. Therefore, the fixture can be designed with a dynamic follow-up clamping mechanism: a displacement sensor (such as a laser displacement sensor with an accuracy of 0.001mm) monitors the chain plate’s deformation in real time, transmitting the signal to the PLC control system. A servo motor then drives the clamping block for micro-adjustments (with an adjustment range of 0-0.5mm) to maintain the appropriate clamping force. This design is particularly suitable for welding thick-plate roller chains (thickness ≥ 6mm), effectively preventing chain cracking caused by thermal deformation.

4. Weld Avoidance and Guidance Design: Ensures a Precise Welding Path and Reduces the Heat-Affected Zone
During welding, the accuracy of the welding gun’s movement path directly affects weld quality and heat input. The fixture needs to be equipped with a weld seam avoidance groove and a welding gun guide. A U-shaped avoidance groove (2-3mm wider than the weld seam and 5-8mm deep) should be created near the weld seam to prevent interference between the fixture and the welding gun. Furthermore, a guide rail should be installed above the fixture to ensure uniform movement of the welding gun along a pre-set path (a welding speed of 80-120mm/min is recommended), ensuring weld straightness and uniform heat input. Ceramic insulation material can also be placed in the avoidance groove to prevent weld spatter from damaging the fixture.

Fourth, Fixture Optimization and Verification: Closed-Loop Control from Design to Implementation

A good design requires optimization and verification before it can be truly implemented. The following three steps can ensure the practicality and reliability of the fixture:

1. Finite Element Simulation Analysis: Predicting Deformation and Optimizing the Structure

Before fixture fabrication, thermal-structural coupling simulations are performed using finite element software such as ANSYS and ABAQUS. Inputting roller chain material parameters (such as thermal expansion coefficient and elastic modulus) and welding process parameters (such as welding current of 180-220A and voltage of 22-26V) simulates the temperature and stress distributions in the fixture and workpiece during welding, predicting potential deformation areas. For example, if the simulation shows excessive bending deformation in the middle of the chain plate, additional support can be added to the corresponding location in the fixture. If stress concentration occurs at the locating pin, the pin’s fillet radius can be optimized (R2-R3 is recommended). Simulation optimization can reduce the trial-and-error costs of the fixture and shorten the development cycle.

2. Trial Weld Verification: Small-Batch Testing and Iterative Adjustments

After the fixture is manufactured, conduct a small-batch trial weld verification (recommended: 50-100 pieces). Focus on the following indicators:

Accuracy: Use a universal tool microscope to measure pitch deviation (should be ≤0.1mm) and chain plate parallelism (should be ≤0.05mm);

Deformation: Use a coordinate measuring machine to scan the chain plate flatness and compare the deformation before and after welding;

Stability: After welding 20 pieces continuously, check the fixture’s locating pins and clamping blocks for wear and ensure the clamping force is stable.

Based on the trial weld results, iterative adjustments are made to the fixture, such as adjusting the clamping force and optimizing the cooling channel location, until it meets mass production requirements.

3. Daily Maintenance and Calibration: Ensuring Long-Term Accuracy

After the fixture is put into operation, a regular maintenance and calibration system should be established:

Daily Maintenance: Clean weld spatter and oil stains from the fixture surface, and check for leaks in the pneumatic/hydraulic systems of the clamping device.

Weekly Calibration: Use gauge blocks and dial indicators to calibrate the positioning accuracy of the locating pins. If the deviation exceeds 0.03mm, adjust or replace them promptly.

Monthly Inspection: Check the cooling water channels for blockages and replace worn polyurethane gaskets and locating components.

Through standardized maintenance, the life of the fixture can be extended (typically up to 3-5 years), ensuring effective deformation control during long-term production.

Fifth, Case Study: Fixture Improvement Practices at a Heavy Machinery Company

A manufacturer of heavy-duty roller chains (used in mining machinery) was facing problems with excessive distortion (≥0.3mm) in chain links after welding, resulting in a product qualification rate of only 75%. Through the following fixture improvements, the pass rate increased to 98%:

Positioning upgrade: The original single locating pin was replaced with a “double pin + flat surface” positioning system, reducing the clearance to 0.03mm and resolving the part offset issue;

Heat dissipation optimization: The fixture body is made of copper alloy and features cooling channels, increasing the cooling rate in the weld area by 40%;

Dynamic clamping: A displacement sensor and servo clamping system are installed to adjust the clamping force in real time to avoid stress concentration;

Symmetrical constraints: Symmetrical clamping blocks and support blocks are installed on both sides of the chain to offset welding stress.

After the improvements, the pitch deviation of the roller chain is controlled within 0.05mm, and the distortion is ≤0.1mm, fully meeting the customer’s high-precision requirements.

Conclusion: Fixture design is the “first line of defense” for roller chain welding quality.

Reducing roller chain welding deformation is not a matter of optimizing a single step, but a systematic process encompassing positioning, clamping, heat dissipation, processing, and maintenance, with welding fixture design being the core component. From the unified positioning structure, to the adaptive clamping force control, to the flexible design of dynamic follow-up, every detail directly affects the deformation effect.
