Introduction
As a mechanical component widely used in industrial transmission and conveying systems, the performance and life of roller chain are crucial to the stable operation of equipment. Heat treatment process is a key link to improve the performance of roller chains. By changing the microstructure of the material, the strength, hardness, wear resistance and fatigue life of roller chains can be significantly improved.

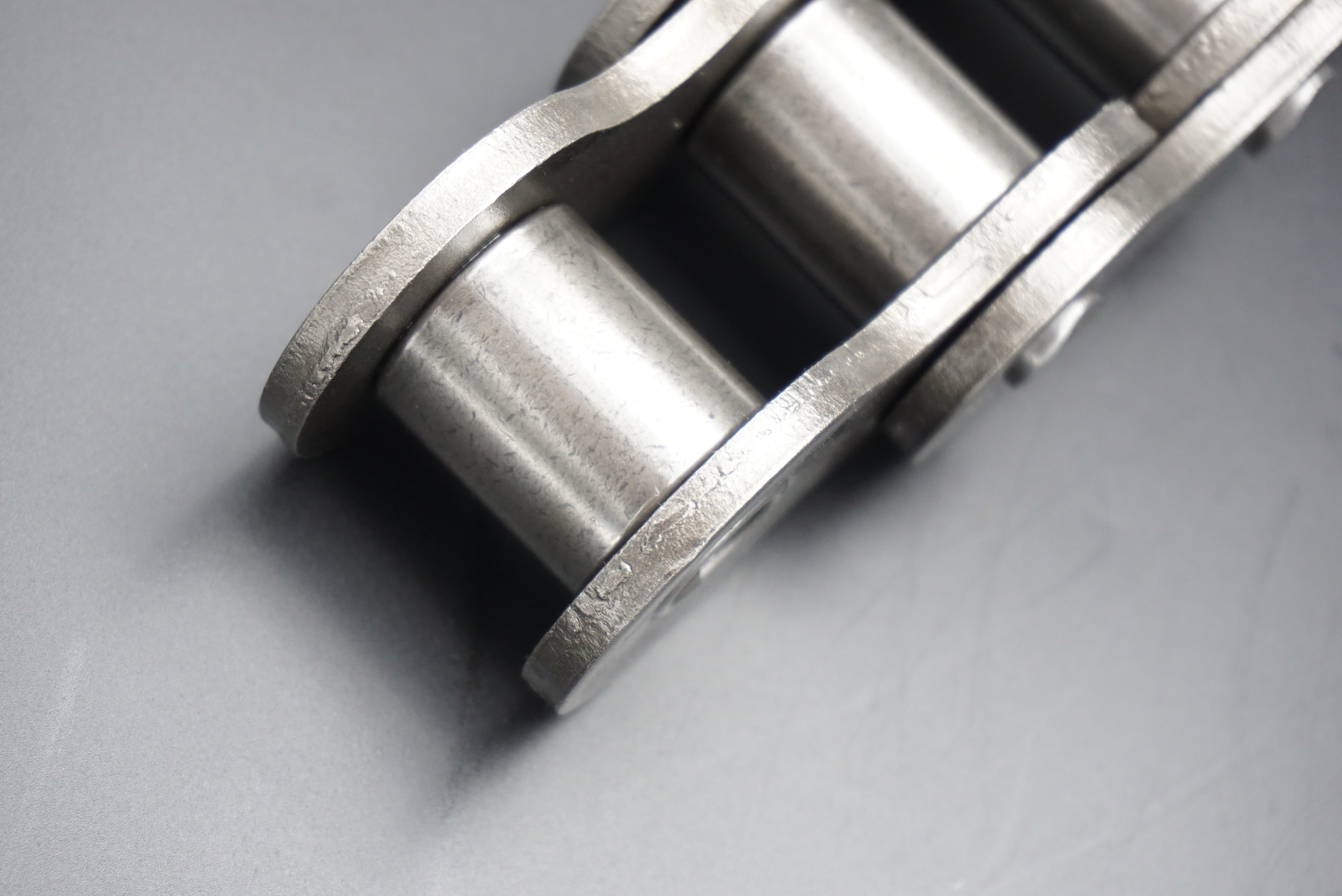

1. Basic concepts of roller chain heat treatment
Heat treatment is a processing method that changes the internal structure of metal materials through heating, insulation and cooling to obtain the required performance. For roller chains, heat treatment can not only improve their mechanical properties, but also improve their wear resistance and fatigue life, so that they can adapt to various complex working conditions.

2. Commonly used heat treatment processes for roller chains
(I) Quenching and tempering
Quenching process
Heating: Heat the roller chain to an appropriate temperature, usually above Ac3 or Ac1. The choice of heating temperature depends on the material composition of the roller chain and the required performance indicators.
Insulation: After reaching the quenching temperature, maintain a certain insulation time to make the internal temperature of the roller chain uniform.
Quenching: The roller chain is quickly immersed in a quenching medium such as water, oil or salt water. The choice of quenching medium affects the cooling rate and the hardness distribution after quenching. Water has the fastest cooling rate, but may cause greater internal stress; oil has a slower cooling rate and less internal stress after quenching.
Function: The main purpose of quenching is to improve the hardness and strength of the roller chain. Through rapid cooling, hardened tissue is formed on the surface and inside of the roller chain, thereby improving its wear resistance and impact resistance.
Tempering process
Heating: The quenched roller chain is heated to a temperature below Ac1. The choice of tempering temperature depends on the required balance of hardness and toughness. Generally speaking, the higher the tempering temperature, the lower the hardness and the better the toughness.
Heat preservation: Keep at the tempering temperature for a certain period of time to stabilize the internal organization of the roller chain.
Cooling: Slowly cool to room temperature after tempering.
Function: The main purpose of tempering is to reduce the internal stress generated during quenching and adjust the hardness and toughness of the roller chain. Through tempering treatment, the roller chain can obtain better comprehensive performance and reduce the risk of cracking and breaking during use.
(II) Surface hardening treatment
Surface quenching
Induction heating surface quenching: Using the principle of electromagnetic induction, high-frequency current is passed through the induction coil to generate an alternating magnetic field, so that the surface of the roller chain generates eddy currents and heats up quickly. The advantages of induction heating are fast heating speed, precise temperature control, and rapid quenching of local surfaces.
Flame heating surface quenching: Use a flame spray gun to heat the surface of the roller chain and then cool it quickly. The advantages of flame heating are simple equipment and flexible operation, which is suitable for surface quenching of large roller chains or local areas.
Function: Surface quenching can significantly improve the hardness and wear resistance of the roller chain surface. When subjected to alternating loads and impact loads, the roller chain after surface quenching can better resist wear and fatigue damage.
Carburizing and nitriding
Carburizing process: The roller chain is placed in a medium containing carbon elements, and carbon atoms are infiltrated into the surface of the roller chain at high temperature to form a high-carbon hardened layer. The roller chain after carburization usually needs to be quenched and tempered to further improve its surface hardness and wear resistance.
Nitriding process: Place the roller chain in a medium containing nitrogen, and allow nitrogen atoms to penetrate into the surface of the roller chain at a certain temperature to form a nitride hardened layer. The roller chain after nitriding has high surface hardness, good wear resistance, and good corrosion resistance.
Function: Carburizing and nitriding processes can significantly improve the surface hardness and wear resistance of the roller chain. Compared with surface quenching, the hardened layer formed by carburizing and nitriding is deeper and can better resist wear and fatigue damage.
(III) Overall heat treatment
Annealing
Process: Heat the roller chain to 30-50 degrees above Ac3, keep it warm for a certain period of time, and then slowly cool it to below 500 degrees in the furnace and cool it in the air.
Function: The main purpose of annealing is to reduce the hardness of the roller chain and improve its plasticity and cutting performance. Through annealing, the roller chain is easier to form and process in the subsequent processing.
Normalizing
Process: Heat the roller chain to above Ac3 or Acm, keep it warm, take it out of the furnace and cool it in the air.
Function: Normalizing can refine the grains, make the structure uniform, and improve the comprehensive performance of the roller chain. Compared with annealing, the roller chain after normalizing has higher hardness and strength.
Quenching and tempering treatment
Process: Quenching and tempering treatment is a combination of quenching and high-temperature tempering. First, heat the roller chain to above Ac3, quench after heat preservation, and then temper at a temperature of 500-650℃.
Function: Quenching and tempering treatment can obtain the comprehensive performance of high strength and good toughness. The roller chain after quenching and tempering has better stability and reliability when subjected to high loads and impact loads.
(IV) Special heat treatment process
Carbonitriding
Process: Heat the roller chain and the carbon and nitrogen source together to the co-diffusion temperature and keep it for a certain time. During the co-diffusion process, carbon and nitrogen atoms simultaneously penetrate into the surface of the roller chain to form a carbonitride hardened layer.
Function: Carbonitriding can significantly improve the surface hardness and wear resistance of the roller chain. Compared with carburizing and nitriding, the hardened layer formed by carbonitriding has better comprehensive performance and can better resist wear and fatigue damage.
Boriding
Process: Place the roller chain in a medium containing boron elements, and allow boron atoms to penetrate into the surface of the roller chain at a certain temperature.
Function: The surface hardness of the roller chain after boriding is extremely high and the wear resistance is excellent. It is suitable for roller chains used under harsh working conditions, such as high temperature and high load.

3. The influence of heat treatment process on the performance of roller chains
Hardness and wear resistance
The surface hardness of the roller chain can be significantly improved through quenching, surface quenching, carburizing, nitriding and other processes. The high hardness surface can better resist wear and extend the service life of the roller chain.
Strength and toughness
Quenching and tempering, quenching and tempering treatment and other processes can improve the strength and toughness of the roller chain. When subjected to high loads and impact loads, heat-treated roller chains can better maintain stability and reliability.
Fatigue life
Heat treatment can improve the microstructure of the roller chain, reduce internal defects, and thus increase its fatigue life. Heat-treated roller chains are better able to resist fatigue damage when repeatedly subjected to alternating loads.
Corrosion resistance
Processes such as nitriding and boronizing can improve the corrosion resistance of roller chains. Roller chains used in humid or corrosive environments can better resist corrosion after these heat treatment processes.

4. Selection and optimization of heat treatment processes
Select heat treatment processes according to the material of the roller chain
Roller chains of different materials have different adaptability to heat treatment processes. For example, carbon steel roller chains usually use processes such as quenching and tempering, carburizing, etc.; while stainless steel roller chains are more suitable for processes such as nitriding and carbonitriding.
Select heat treatment processes according to the use requirements of roller chains
If the roller chain is mainly used to withstand high loads and impact loads, a heat treatment process that can improve strength and toughness should be selected; if the roller chain is mainly used for wear resistance, a heat treatment process that can improve surface hardness and wear resistance should be selected.
Optimize heat treatment process parameters
The selection of heat treatment process parameters has a great influence on the performance of roller chains. For example, unreasonable selection of parameters such as quenching temperature, holding time, cooling rate, etc. may lead to insufficient hardness or excessive internal stress of the roller chain. Therefore, it is necessary to optimize the heat treatment process parameters through experiments and experience according to the material and use requirements of the roller chain.

5. Testing and quality control of heat treatment process
Hardness test
Hardness is an important indicator to measure the quality of roller chain heat treatment. Through hardness test, it can be judged whether the hardness distribution on the surface and inside of the roller chain meets the requirements. Common hardness test methods include Rockwell hardness test, surface hardness test, etc.
Metallographic test
Metallographic test can observe the microstructure of the roller chain and judge whether the heat treatment process has achieved the expected effect. For example, through metallographic test, the martensite structure after quenching and the carbide distribution after carburizing can be observed.
Mechanical property test
Mechanical property test includes tensile test, impact test, fatigue test, etc. Through these tests, the strength, toughness, fatigue life and other performance indicators of the roller chain can be comprehensively evaluated to ensure that it can meet the use requirements.
Quality control system
Establishing a sound quality control system is the key to ensuring the quality of roller chain heat treatment. From the procurement of raw materials, the execution of heat treatment process to the inspection of finished products, every link needs to be strictly controlled. The quality control system can ensure that the quality of the roller chain is stable and reliable to meet the requirements of international wholesale buyers.

6. Case Analysis
(I) Heat Treatment Case of Roller Chain in a Certain Automobile Manufacturing Plant
Background
The roller chain used in a certain automobile manufacturing plant needs to withstand high loads and impact loads, and is required to have good wear resistance and fatigue life.
Selection of heat treatment process
The quenching and tempering process is adopted, with a quenching temperature of 850℃ and a holding time of 30 minutes, followed by high-temperature tempering at 550℃ and a holding time of 2 hours.
Test results
After quenching and tempering, the surface hardness of the roller chain reaches HRC45-50 and the core hardness is HRC30-35. Metallographic examination shows that the martensite structure after quenching is uniform and the sorbite structure after tempering is good. Mechanical property testing shows that the tensile strength of the roller chain is 1200MPa, the yield strength is 1000MPa, the impact toughness is 50J/cm², and the fatigue life is significantly improved.
Application effect
After the automobile manufacturing plant uses the roller chain after quenching and tempering, the equipment operation is more stable, the service life of the roller chain is extended by 50%, and the maintenance cost is greatly reduced.
(II) Heat treatment case of roller chain of a mining equipment
Background
The roller chain used in a mining equipment needs to operate under harsh working conditions and requires high wear resistance and corrosion resistance.
Heat treatment process selection
The carbonitriding process is adopted, the co-diffusion temperature is 850℃, the holding time is 4 hours, and then quenching and low-temperature tempering are carried out.
Test results
After carbonitriding treatment, the surface hardness of the roller chain reaches HV1000-1200, and the wear resistance is significantly improved. Metallographic examination shows that the carbonitride hardening layer is evenly distributed with a thickness of 0.5-0.8mm. Corrosion resistance test shows that the corrosion resistance of the roller chain in a humid environment is improved by 3 times.
Application effect
After the mining equipment uses the roller chain treated with carbonitriding, the wear rate of the roller chain is greatly reduced, the service life is extended by 2 times, and the operation efficiency of the equipment is significantly improved.

7. Future development trend
Intelligent heat treatment technology
With the development of artificial intelligence and automation technology, intelligent heat treatment technology will become a future development trend. Through the intelligent control system, the heat treatment process parameters can be monitored and adjusted in real time to achieve precise control and improve the quality and efficiency of heat treatment.
Green and environmentally friendly heat treatment technology
The enhancement of environmental awareness will promote the development of green and environmentally friendly heat treatment technology. For example, the use of pollution-free quenching media and energy-saving heating equipment can reduce energy consumption and environmental pollution during heat treatment.
High-performance heat treatment materials
The research and development of high-performance heat treatment materials is the key to improving the performance of roller chains. For example, the development of new carburizing agents, nitriding agents, etc. can further improve the surface hardness and wear resistance of roller chains.
Innovation and optimization of heat treatment processes
Combined with advanced material science and mechanics theory, the heat treatment process is continuously optimized and innovated. For example, a composite heat treatment process is used to combine multiple heat treatment processes to give full play to their respective advantages and further improve the performance of roller chains.

8. Conclusion
The heat treatment process is a key technology to improve the performance of roller chains. Through quenching and tempering, surface hardening treatment, overall heat treatment and other processes, the hardness, strength, wear resistance and fatigue life of roller chains can be significantly improved. Selecting a suitable heat treatment process and optimizing process parameters are important links to ensure the quality of roller chains. At the same time, establishing a sound quality control system and adopting advanced testing methods are the guarantee for ensuring the quality of roller chain heat treatment. In the future, with the development of intelligent, green and high-performance materials, roller chain heat treatment technology will continue to innovate and optimize, providing more reliable mechanical components for industrial transmission and conveying systems.
