Carburizing process of roller chain

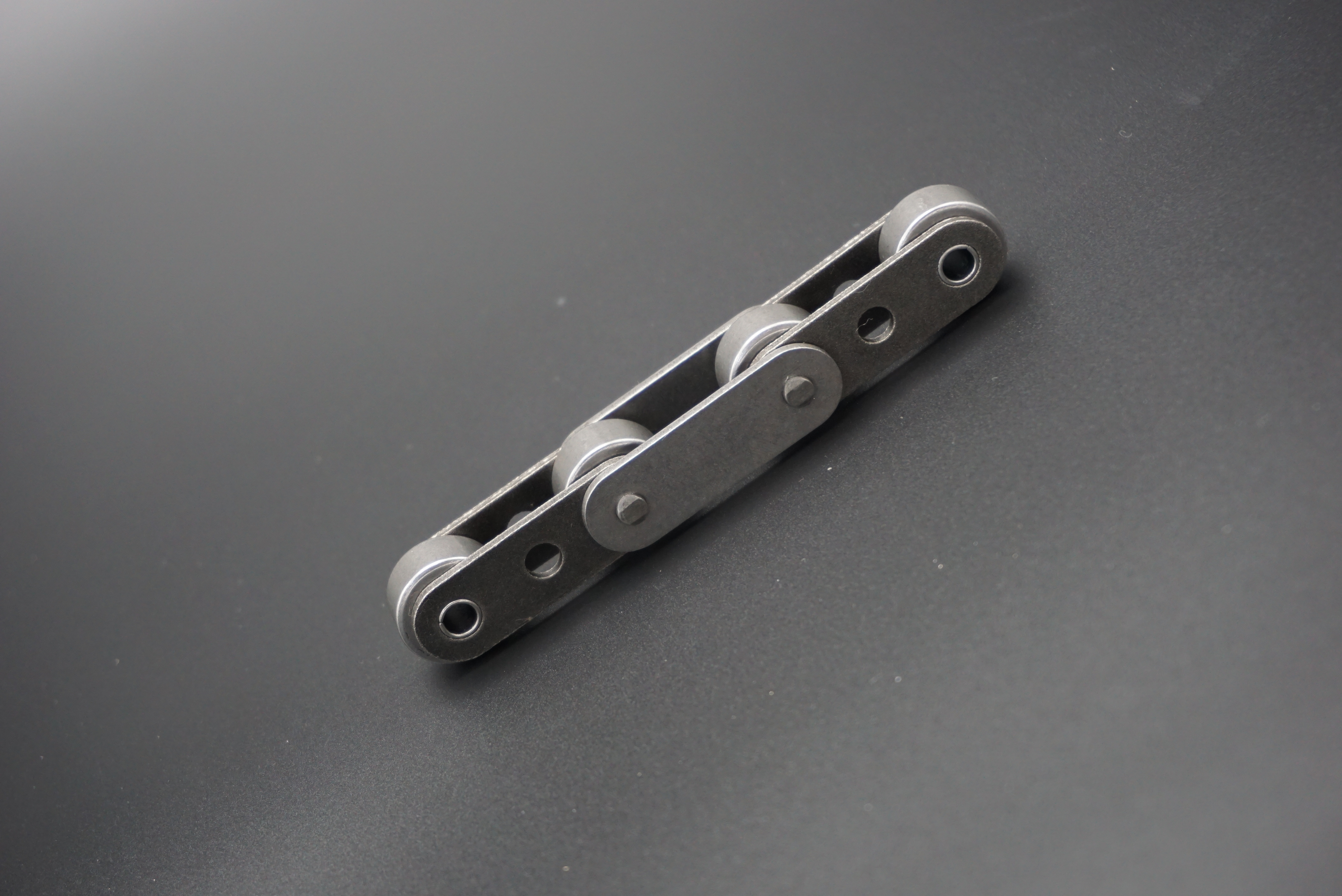

Roller chain is a transmission part widely used in industrial production. Its performance depends largely on the manufacturing process, and the carburizing process is the key to improving the performance of roller chain.

Roller chain carburizing process: the key to improving performance
Roller chain undertakes the important task of transmission in various mechanical equipment. Its working environment is often complex and changeable, facing challenges such as high-intensity load, wear and fatigue. In order to enable roller chains to better adapt to these harsh conditions and extend their service life, the carburizing process has become an indispensable part of the roller chain manufacturing process.

Basic principles of carburizing process
Carburizing is a heat treatment process that is mainly used to improve the hardness, wear resistance and fatigue resistance of the steel surface while maintaining good toughness and plasticity of the core. Specifically, the roller chain is placed in a carbon-rich medium, and carbon atoms are infiltrated into the surface of the roller chain at high temperature to form a high-carbon carburized layer. As the temperature decreases, this layer of high-carbon austenite will be transformed into extremely hard martensite, thereby achieving hardening of the roller chain surface.

Common roller chain carburizing process methods
Gas carburizing: This is one of the most widely used carburizing methods. The roller chain is placed in a sealed carburizing furnace and a carburizing agent mainly composed of hydrocarbon gases such as methane and ethane is introduced. At high temperatures, these gases decompose to produce active carbon atoms, thereby achieving carburizing. The advantages of gas carburizing are simple operation, fast heating speed, short production cycle, and the ability to accurately adjust the depth and concentration of the carburized layer by controlling parameters such as gas composition and flow rate. The carburizing quality is stable, which is easy to achieve mechanized and automated operation, greatly improving labor conditions.
Liquid carburizing: Liquid carburizing is to immerse the roller chain in a liquid carburizing medium. Commonly used media include silicon carbide, “603″ carburizing agent, etc. At an appropriate temperature, carbon atoms dissolve from the liquid medium and penetrate into the surface of the roller chain. The advantage of liquid carburizing is that the production cycle is relatively short, and quenching can be carried out directly after carburizing without worrying about oxidation and decarburization. The temperature and time are easy to control, the heating is uniform, and the deformation of the workpiece can be effectively reduced. The equipment is also relatively simple. However, its working conditions are relatively poor and it is usually suitable for single piece or small batch production.
Solid carburizing: This is a more traditional carburizing method. The roller chain is placed in a closed carburizing box together with a solid carburizing agent, and then the carburizing box is placed in a heating furnace and heated to the carburizing temperature and kept warm for a certain period of time, so that the active carbon atoms penetrate into the surface of the roller chain. The solid carburizing agent is generally composed of charcoal and some promoters. The advantages of this method are simple operation, low technical requirements, no need for special equipment, a wide range of sources of carburizing agents and can be prepared by oneself, and a wide range of applications. But the disadvantages are also obvious. The carburizing quality is difficult to accurately control, the working conditions are poor, the strength is high, the production cycle is long, the cost is high, and the grain growth tendency is serious during the carburizing process. For some important workpieces, direct quenching is usually not used.

Key elements of roller chain carburizing process
Carburizing temperature and time: The carburizing temperature is generally between 900℃ and 950℃. Higher temperatures can accelerate the diffusion rate of carbon atoms and shorten the carburizing time, but at the same time it may also cause grain growth and affect the performance of the roller chain. The carburizing time is determined according to the required carburizing layer depth, usually ranging from a few hours to dozens of hours. For example, for some roller chains that require a shallower carburizing layer, it may only take a few hours, while for roller chains that require a deeper carburizing layer, it may take dozens of hours of carburizing time. In actual production, it is necessary to determine the optimal carburizing temperature and time parameters through experiments and experience based on factors such as the specific material, size and performance requirements of the roller chain.
Carbon potential control: Carbon potential refers to the ability of the carburizing agent to provide carbon atoms to the surface of the workpiece. Accurate control of carbon potential is the key to obtaining an ideal carburized layer. Too high carbon potential will cause network carbides to appear on the surface of the roller chain, reducing its fatigue strength; too low carbon potential will cause the depth of the carburized layer to be insufficient and unable to meet performance requirements. Usually, instruments such as oxygen probes and infrared gas analyzers are used to monitor the atmosphere in the furnace in real time, and the carbon potential is adjusted in time according to the monitoring results to ensure that the carbon potential gradient is always in the ideal range, so as to obtain a uniform and high-quality carburized layer. In addition, with the help of advanced computer simulation technology, a carbon potential diffusion model can be established to simulate the carbon potential gradient change and the evolution of the carburized layer under different process parameters, predict the carburizing effect in advance, provide a scientific basis for process optimization, and further improve the accuracy and stability of the carburizing process.
Cooling and quenching: After carburizing, the roller chain usually needs to be rapidly cooled and quenched to form a martensitic structure and improve the surface hardness. Common quenching media include oil, water, polymer quenching liquid, etc. Different quenching media have different cooling rates and characteristics, and should be reasonably selected according to the material and performance requirements of the roller chain. For example, for some small roller chains, oil quenching may be used; for large roller chains or roller chains with higher hardness requirements, water quenching or polymer quenching liquid quenching may be used. After quenching, the roller chain also needs to be tempered to eliminate the internal stress generated during the quenching process and improve its toughness. The tempering temperature is generally between 150℃ and 200℃, and the tempering time is determined according to factors such as the size of the roller chain and the tempering temperature, usually about 1 to 2 hours.

Material selection of roller chain and adaptation of carburizing process
The material of roller chain is usually low carbon steel or low carbon alloy steel, such as 20 steel, 20CrMnTi, etc. These materials have good plasticity and toughness, and can form a high-quality carburized layer during carburizing. Taking 20CrMnTi as an example, it contains elements such as chromium, manganese and titanium. These alloy elements can not only improve the strength and toughness of steel, but also affect its hardening effect during carburizing. Before carburizing, the roller chain needs to be properly pretreated, such as pickling or sandblasting, to remove surface oxides and dirt to ensure the smooth progress of the carburizing process.

Carburizing process improves the performance of roller chain
Hardness and wear resistance: After carburizing, the surface hardness of the roller chain can be greatly improved, usually up to HRC58 to 64. This enables it to effectively resist problems such as tooth surface wear, bonding and pitting under harsh working conditions such as high speed, heavy load and frequent starting, and significantly extend its service life. For example, the roller chains used in some large mining machinery have greatly improved their wear resistance after carburizing treatment, and can transport materials stably for a long time, reducing the number of equipment shutdowns and repairs caused by chain wear.
Anti-fatigue performance: The residual compressive stress formed by the carburized layer and the refined structure of the surface layer help to improve the anti-fatigue performance of the roller chain. Under the action of cyclic loads, the roller chain can withstand a larger stress amplitude and is not prone to fatigue cracks, thereby enhancing its reliability in long-term operation. This is especially important for some equipment that needs to operate continuously, such as the timing chain in the automobile engine, which can ensure the safe and stable operation of the equipment and reduce the risk of failure.
Comprehensive mechanical properties: The carburizing process not only improves the performance of the roller chain surface, but also maintains the good toughness of the core. In this way, when the roller chain is subjected to impact loads, it can better absorb and disperse energy and avoid failure problems such as fracture due to local stress concentration. The roller chain can show good comprehensive mechanical properties in various complex working environments and meet the transmission needs of different mechanical equipment.

Quality inspection and control of carburized roller chains
Carburized layer depth inspection: Metallographic analysis is usually used to measure the depth of the carburized layer. After cutting, polishing and corroding the roller chain sample, the structure of the carburized layer is observed under a metallographic microscope and its depth is measured. This indicator directly reflects whether the carburizing effect meets the design requirements, which is crucial to ensure the performance of the roller chain. For example, for some roller chains used for heavy-duty transmission, the carburized layer depth may be required to reach about 0.8 to 1.2 mm to meet its wear resistance and fatigue resistance requirements under high loads.
Hardness test: Use a hardness tester to test the hardness of the surface and core of the roller chain. The surface hardness should meet the specified standard range, and the core hardness should also be within a suitable range to ensure that the roller chain has good comprehensive performance. Hardness testing is usually carried out at a certain sampling frequency, and each batch of roller chains produced is sampled to ensure the stability of product quality.
Metallographic structure inspection: In addition to the depth detection of the carburized layer, the metallographic structure of the carburized layer should also be inspected, including the morphology, distribution and grain size of the carbides. Good metallographic structure can ensure the performance of the roller chain during use. For example, fine and evenly distributed carbides help improve the wear resistance and fatigue resistance of the roller chain, while excessive grain size may reduce its toughness. Through metallographic structure inspection, problems in the carburizing process can be discovered in time, and corresponding measures can be taken to adjust and improve them to improve product quality.

Conclusion
The carburizing process of roller chains is a complex and critical technology, which plays a vital role in improving the performance of roller chains. From the selection of process methods to the control of key elements, to the adaptation of materials and quality inspection, all links need to be strictly controlled to ensure that the roller chain can meet the use requirements under different working conditions. With the continuous advancement of science and technology, the carburizing process is also constantly innovating and improving. For example, the use of advanced computer simulation and real-time online monitoring technology will help to further optimize the carburizing process parameters, improve the performance and quality of roller chains, and provide more reliable and efficient transmission solutions for industrial production.
