A Complete Analysis of the Roller Chain Precision Forging Process: The Secret to Quality from Raw Materials to Finished Product
In the industrial transmission industry, the reliability of roller chains directly determines the operational efficiency and equipment life of the production line. As the core manufacturing technology for core roller chain components, precision forging, with its near-net-shape advantage, achieves a perfect balance between component dimensional accuracy, mechanical properties, and production efficiency. This article will delve into the entire roller chain precision forging process, revealing the secrets behind high-quality roller chains.

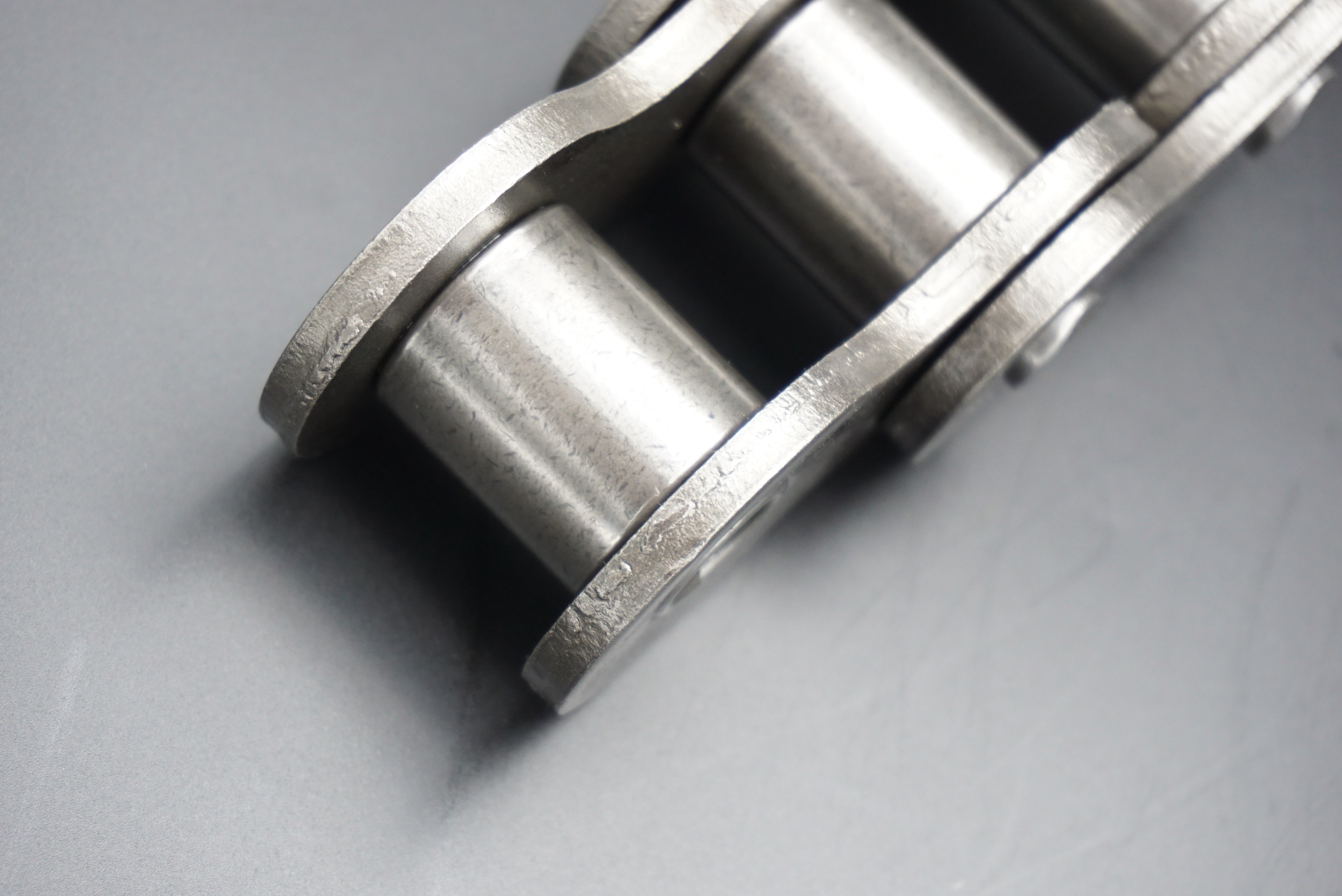

1. Pre-Processing: Raw Material Selection and Pretreatment – Controlling Quality at the Source
The foundation of quality in precision forging begins with rigorous raw material selection and scientific pretreatment. The core load-bearing components of roller chains (rollers, bushings, chain plates, etc.) must withstand alternating loads, impact, and wear. Therefore, the choice and treatment of raw materials directly impact the performance of the final product.
1. Raw Material Selection: Selecting Steel to Match Performance Requirements
Depending on the roller chain’s application (such as construction machinery, automotive transmissions, and precision machine tools), the raw materials typically used are high-quality carbon structural steel or alloy structural steel. For example, rollers and bushings require high wear resistance and toughness, often using alloy carburizing steels such as 20CrMnTi. Chain plates require a balance of strength and fatigue resistance, often using medium-carbon structural steels such as 40Mn and 50Mn. During material selection, the chemical composition of the steel is tested through spectral analysis to ensure that the content of elements such as carbon, manganese, and chromium complies with national standards such as GB/T 3077, thereby avoiding forging cracking or performance deficiencies caused by compositional deviations.
2. Pretreatment Process: “Warming Up” for Forging
After entering the factory, raw materials undergo three key pretreatment steps:
Surface Cleaning: Shot blasting removes scale, rust, and oil from the steel surface to prevent impurities from being pressed into the workpiece during forging and causing defects.
Cutting: Precision saws or CNC shears are used to cut the steel into billets of fixed weight, with a cutting accuracy error controlled within ±0.5% to ensure consistent workpiece dimensions after forging.
Heating: The billet is fed into a medium-frequency induction heating furnace. The heating rate and final forging temperature are controlled according to the steel type (for example, carbon steel is typically heated to 1100-1250°C) to achieve the ideal forging state of “good plasticity and low deformation resistance” while avoiding overheating or overburning that could degrade material properties.
II. Core Forging: Precision Shaping for Near-Net Shape
The core forging process is key to achieving “low-cut or no-cut” production of roller chain components. Depending on the component structure, die forging and upset forging are primarily employed, using precision molds and intelligent equipment to complete the forming process.
1. Mold Preparation: The “Key Medium” for Precision Transmission
Precision forging molds are manufactured from H13 hot-work die steel. Through CNC milling, EDM machining, and polishing, the mold cavity achieves dimensional accuracy of IT7 and a surface roughness of Ra ≤ 1.6μm. The mold must be preheated to 200-300°C and sprayed with graphite lubricant. This not only reduces friction and wear between the blank and the mold, but also facilitates rapid demolding and prevents sticking defects. For symmetrical components such as rollers, the mold must also be designed with diverter grooves and vents to ensure that the molten metal (hot blank) evenly fills the cavity and removes air and impurities.
2. Forging: Customized Processing Based on Component Characteristics
Roller Forging: A two-step “upsetting-final forging” process is used. The heated billet is first upset in a pre-forging die, initially deforming the material and filling the pre-forging cavity. The billet is then quickly transferred to the final forging die. Under the high pressure of a press (typically a hot forging press with a force of 1000-3000 kN), the billet is completely fitted into the final forging cavity, forming the roller’s spherical surface, inner bore, and other structures. Forging speed and pressure must be controlled throughout the entire process to avoid cracking in the workpiece due to excessive deformation.
Sleeve Forging: A “punching-expansion” composite process is used. A blind hole is first punched in the center of the billet using a punch. The hole is then expanded to the designed dimensions using an expansion die, while maintaining a uniform sleeve wall thickness tolerance of ≤0.1 mm.
Chain Plate Forging: Due to the flat and thin structure of the chain plates, a “multi-station continuous die forging” process is used. After heating, the blank passes through pre-forming, final forming, and trimming stations, completing the chain plate’s profile and hole processing in one operation, with a production rate of 80-120 pieces per minute.
3. Post-forging Processing: Stabilizing Performance and Appearance
The forged workpiece is immediately subjected to residual heat quenching or isothermal normalizing. By controlling the cooling rate (e.g., using water spray cooling or a nitrate bath cooling), the workpiece’s metallographic structure is adjusted to achieve a uniform sorbite or pearlite structure in components such as rollers and bushings, improving hardness (roller hardness typically requires HRC 58-62) and fatigue strength. Simultaneously, a high-speed trimming machine is used to remove flash and burrs from the forging’s edges, ensuring that the component’s appearance meets design requirements.
3. Finishing and Strengthening: Upgrading Quality in Detail
After core forging, the workpiece already has a basic appearance, but finishing and strengthening processes are required to further enhance its precision and performance to meet the stringent requirements of high-speed roller chain transmission.
1. Precision Correction: Correcting Minor Deformations
Due to shrinkage and stress release after forging, workpieces may exhibit minor dimensional deviations. During the finishing process, a precision correction die is used to apply pressure to the cold workpiece to correct dimensional deviations to within IT8. For example, the outer diameter roundness error of the roller must be controlled below 0.02mm, and the inner diameter cylindricity error of the sleeve must not exceed 0.015mm to ensure smooth chain transmission after assembly.
2. Surface Hardening: Improving Wear and Corrosion Resistance
Depending on the application environment, workpieces require targeted surface treatment:
Carburizing and Quenching: Rollers and bushings are carburized in a carburizing furnace at 900-950°C for 4-6 hours to achieve a surface carbon content of 0.8%-1.2%. They are then quenched and tempered at low temperatures to create a gradient microstructure characterized by high surface hardness and high core toughness. Surface hardness can reach over HRC60, and core impact toughness ≥50J/cm².
Phosphating: Components such as chain plates are phosphated to form a porous phosphate film on the surface, enhancing subsequent grease adhesion and improving corrosion resistance.
Shot Peening: Shot peening of the chain plate surface creates residual compressive stress through the impact of high-speed steel shot, reducing fatigue crack initiation and extending the fatigue life of the chain.
IV. Full-Process Inspection: A Quality Defense to Eliminate Defects
Every precision forging process is rigorously inspected, forming a comprehensive quality control system from raw materials to finished product, ensuring 100% quality assurance for all roller chain components leaving the factory.
1. Process Inspection: Real-Time Monitoring of Key Parameters
Heating Inspection: Infrared thermometers are used to monitor the billet heating temperature in real time, with an error controlled within ±10°C.
Mold Inspection: The mold cavity is inspected for wear every 500 parts produced. Polishing repairs are performed immediately if the surface roughness exceeds Ra3.2μm.
Dimension Inspection: A three-dimensional coordinate measuring machine is used to sample and inspect forged parts, focusing on key dimensions such as outer diameter, inner diameter, and wall thickness. The sampling rate is no less than 5%.
2. Finished Product Inspection: Comprehensive Verification of Performance Indicators
Mechanical Performance Testing: Randomly sample finished products for hardness testing (Rockwell hardness tester), impact toughness testing (pendulum impact tester), and tensile strength testing to ensure compliance with product standards.
Non-destructive Testing: Ultrasonic testing is used to detect internal defects such as pores and cracks, while magnetic particle testing is used to detect surface and sub-surface defects.
Assembly Testing: Qualified components are assembled into a roller chain and subjected to dynamic performance testing, including transmission accuracy, noise level, and fatigue life. For example, a component is considered qualified only if it has run continuously at 1500 r/min for 1000 hours without any problems.
V. Process Advantages and Application Value: Why is Precision Forging the Industry’s First Choice?
Compared to the traditional “forging + extensive cutting” process, precision forging offers three core advantages for roller chain manufacturing:
High material utilization: Material utilization has increased from 60%-70% in traditional processes to over 90%, significantly reducing raw material waste;
High production efficiency: Utilizing multi-station continuous forging and automated equipment, production efficiency is 3-5 times higher than traditional processes;
Excellent product performance: Forging distributes the metal’s fiber structure along the workpiece contour, creating a streamlined structure, resulting in a 20%-30% increase in fatigue life compared to machined parts.
These advantages have led to the widespread use of precision forged roller chains in high-end equipment manufacturing, such as track drives for construction machinery, timing systems for automotive engines, and spindle drives for precision machine tools. They have become the core power components that ensure the stable operation of industrial equipment.
Conclusion
The precision forging process for roller chains is the culmination of a comprehensive approach combining materials science, mold technology, automated control, and quality inspection. From the stringent standards in raw material selection, to the millimeter-level precision control in core forging, to the comprehensive verification in finished product testing, each process embodies the ingenuity and technical strength of industrial manufacturing.
